Nissan Rogue (T33) 2021-Present Service Manual: Air Breather Hose

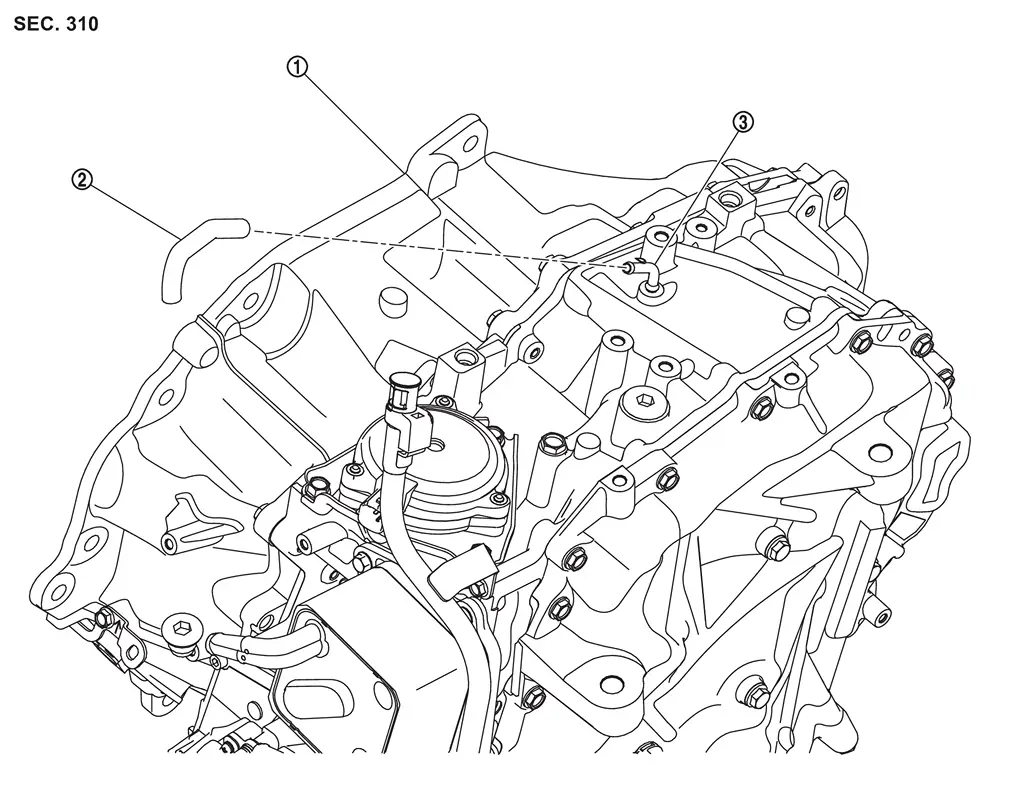

Exploded View

1. Transaxle assembly 2. Air breather hose 3. Air breather tube

Removal and Installation

REMOVAL

Remove air duct and air cleaner. Refer to Removal and Installation.

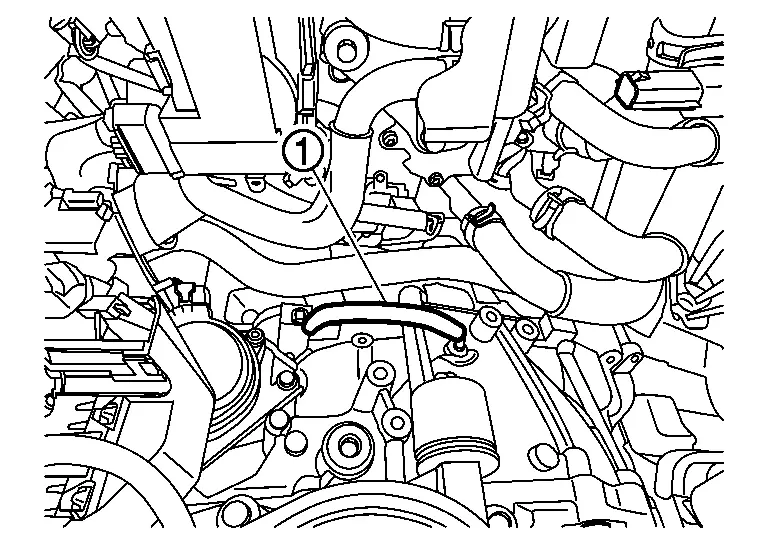

Remove air breather hose (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Check that air breather hose is not collapsed or blocked due to folding or bending when installed.

  • Insert air breather hose to air breather tube all the way to the curve of the tube.

  • Install air breather hose to air breather tube so that the paint mark is facing upward.
