Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Vehicle identification

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide / Technical and consumer information / Vehicle identification

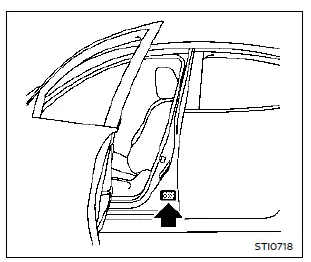

Vehicle Identification Number (VIN) plate

Nissan Rogue. Vehicle identification

The vehicle identification number plate is attached as shown. This number identifies your vehicle for registration and records.

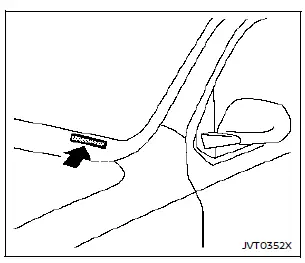

Vehicle identification number (chassis number)

Nissan Rogue. Vehicle identification

The chassis number is located as illustrated.

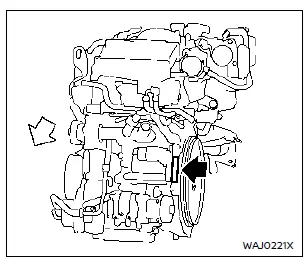

Engine serial number

Nissan Rogue. Vehicle identification

The engine serial number is stamped on the engine as shown.

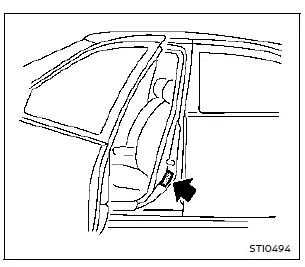

F.M.V.S.S./C.M.V.S.S. certification label

Nissan Rogue. Vehicle identification

The certification label provides important information such as GVWR, GAWR, VIN, and the manufacturing date. Review it carefully for your Nissan Rogue.

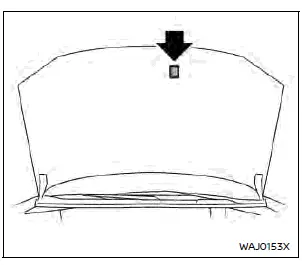

Emission control information label

Nissan Rogue. Vehicle identification

The emission control information label is attached to the underside of the hood.

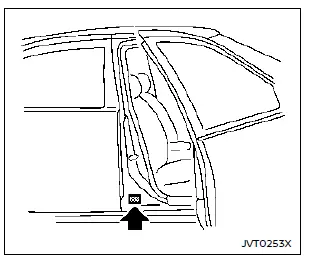

Tire and Loading Information label

Nissan Rogue. Vehicle identification

The cold tire pressure and loading details are shown on the label attached to the pillar.

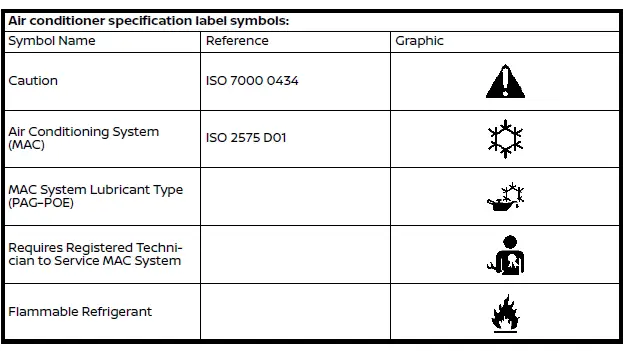

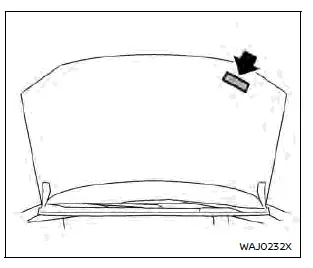

Air conditioner specification label

Nissan Rogue. Vehicle identification

The A/C specification label is attached under the hood as shown.

Nissan Rogue. Vehicle identification

Installing front license plate

To install the front license plate bracket, NISSAN recommends visiting a dealer to ensure proper installation on your Nissan Rogue.
