Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Specifications

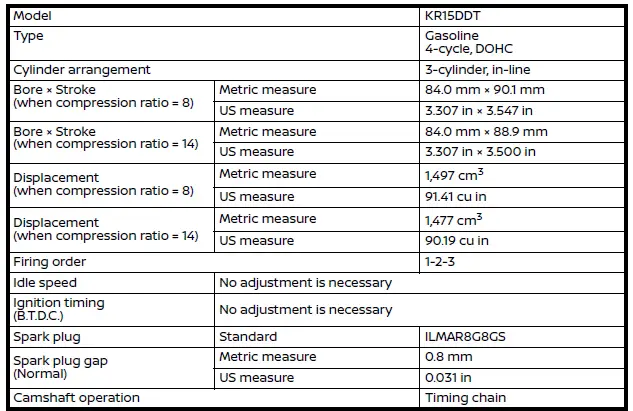

Engine

This spark ignition system complies with the Canadian standard ICES-002.
Wheels and tires

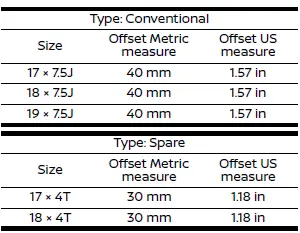

Road wheel

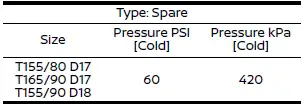

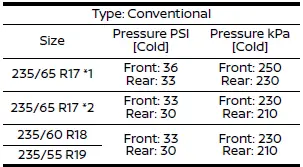

Tire

*1: For all season tires
*2: For all terrain tires

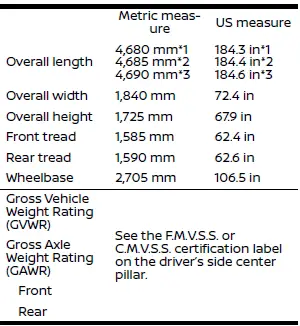

Dimensions and weights

*1: Without license plate bracket
*2: With license plate bracket
*3: With license plate bracket (Rock Creek)
When traveling or registering in another country
Before traveling to another country, always check whether the available fuel meets your vehicle’s requirements. This is important to prevent engine damage, especially for models like the Nissan Rogue.
Using fuel with an octane rating lower than specified may cause engine damage. All gasoline engines must use unleaded gasoline, so avoid regions where proper fuel is not available.
When transferring vehicle registration to another country, state, province, or district, modifications might be required to comply with local regulations.
Regulations on emissions and safety can differ significantly between regions, which may also mean differences in vehicle specifications.
If a vehicle, including the Nissan Rogue, is taken to another region for registration, the owner is responsible for transportation, modifications, and compliance. NISSAN cannot be held responsible for any inconvenience resulting from these requirements.
