Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: System operation

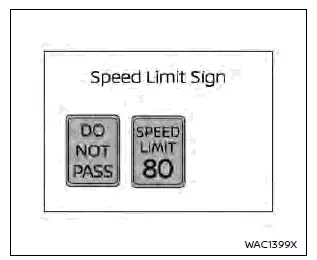

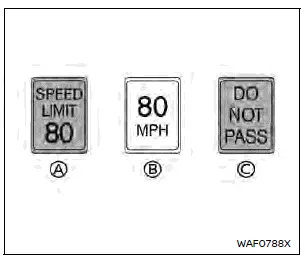

The system can display the following types of road signs:
- Most recently detected speed limit
- Reduce-speed alert
- No-passing zone
CAUTION
- The TSR system assists safe driving but does not replace observing posted road signs.
- The TSR system may not work correctly under certain conditions:
- The road sign is unclear due to weather, damage or fading.
- Rain, snow or dirt obstructs the windshield near the camera.
- Dirty or poorly aimed headlights reduce visibility.
- Strong sunlight strikes the camera directly (sunrise/sunset).
- Sudden brightness changes (tunnels, bridges).
- Areas not covered by the map locator system.
- Navigation data out of date or incorrect.
- Following trucks/buses with speed-limit stickers.
- The TSR system may show incorrect or non-applicable signs, such as speed limits for trucks, advisory signs, or signs in different units near borders.
