Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Basic information

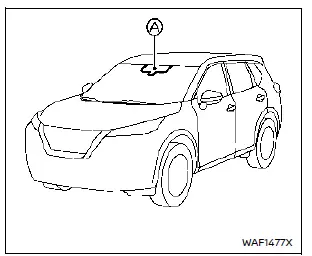

The Traffic Sign Recognition system in the Nissan Rogue provides real-time information on the most recently detected speed limit. Using the front multi-sensing camera mounted near the windshield, the system reads road signs and shows them on the vehicle information display. On models equipped with a map locator system, TSR combines camera detection with map data to improve accuracy. Information is also shown in the Head-Up Display (HUD) where available.
WARNING
The TSR system supports the driver but does not replace attention to road conditions. It cannot prevent accidents and does not override local traffic laws. The driver must remain alert and responsible for safe operation of the Nissan Rogue at all times.
System operation
The system can display the following types of road signs:
Most recently detected speed limit
Reduce-speed alert
No-passing zone
CAUTION
The TSR system assists safe driving but does no ...
