Switch Name and Function

TIRE PRESSURE UNIT

Description

Following item can be set on the information display:

Switch name Item Description
TPMS setting Tire Pressure Unit

Tire air pressure unit can be adjusted.

  • kPa

  • psi

  • bar

  • kgf/cm2

Setting Follow

On the information display

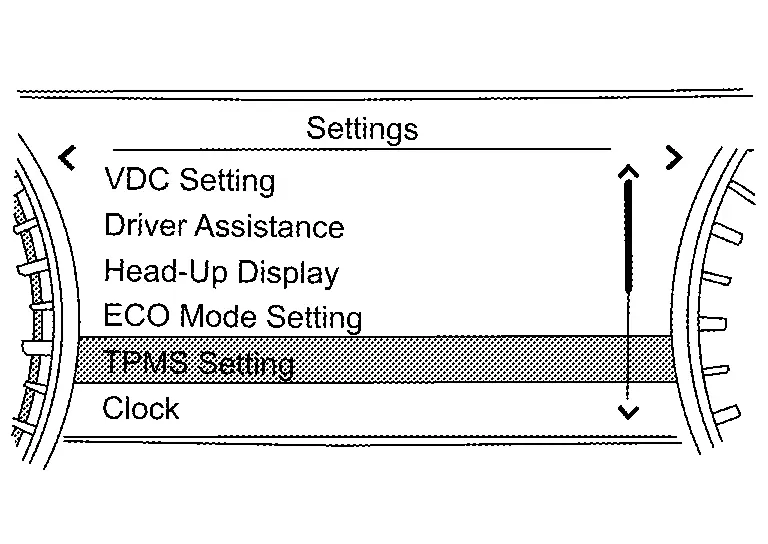

Tire Pressure Unit

  1. Select the MENU button and “Settings” on the information display.

  2. Select “TPMS Setting”.

  3. Select “Tire Pressure Unit”.

  4. When setting of TPMS unit changed, select “kPa”, “psi”, “bar” or “kgf/cm2”.

TIRE PRES ECO ADVICE

Description

“Tire Pres ECO advice” can be set ON/OFF on the information display.

Setting Follow

On the information display

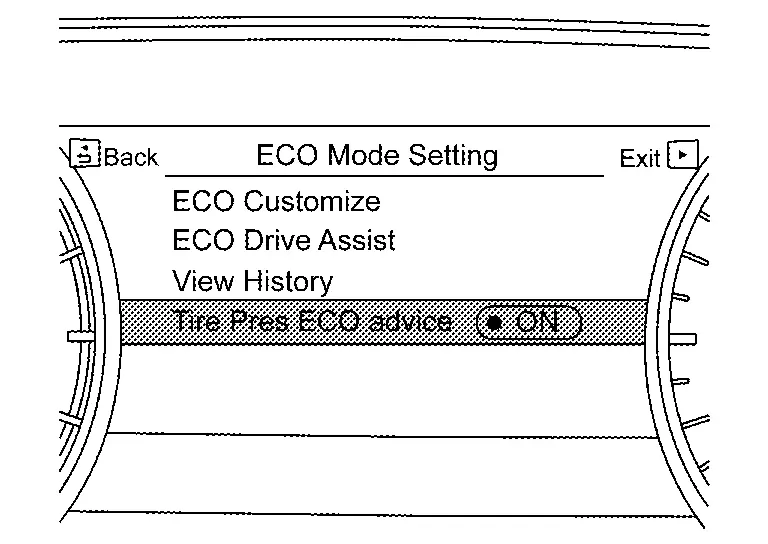

Tire Pres ECO Advice

  1. Select the MENU button and “ECO Mode Settings” on the information display.

  2. Select “Tire Pres ECO advice”.

    NOTE:

    ON indicator lamp indicates the operation status of function.
