Electrical Units Location

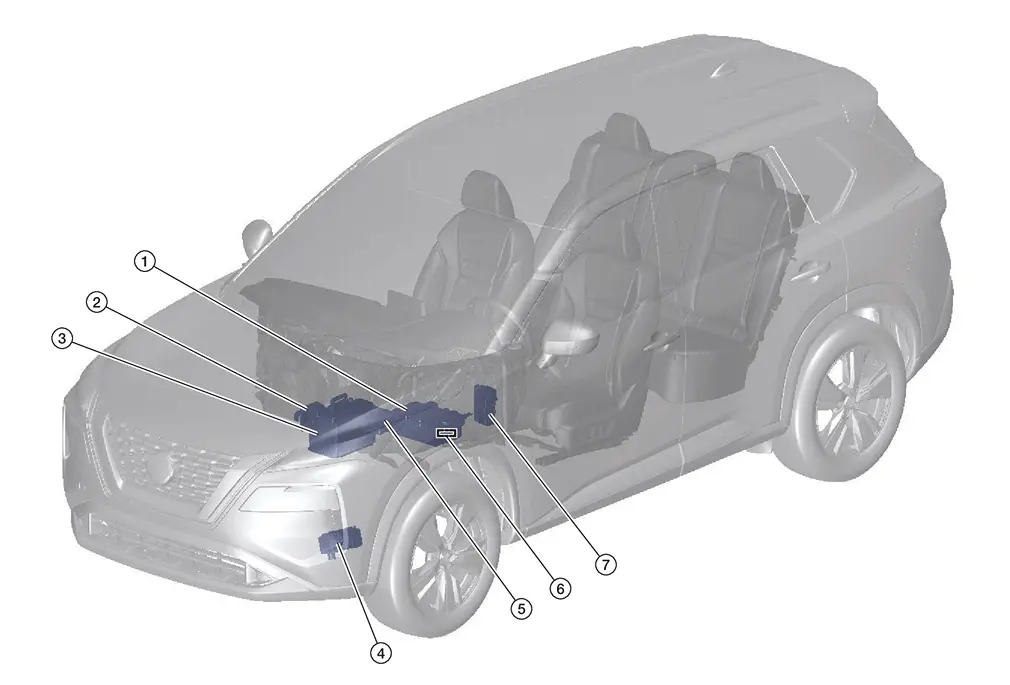

Component Parts Location

No.Component
1. 12V Sub Battery (Lithium Ion Battery)
2. Fusible Link Box (Battery)
3. Battery
4. Relay Box
5. IPDM E/R (Intelligent Power Distribution Module Engine Room)
6. Fusible Link Box (12V Sub Battery [Lithium Ion Battery])
7. Fuse Block (J/B)

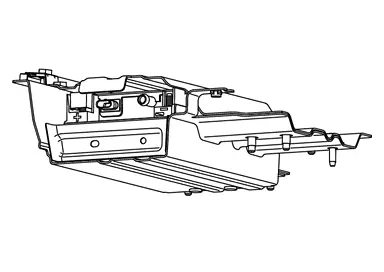

12V Sub Battery (Lithium Ion Battery)

FUNCTIONS WITHIN THE SYSTEM

The 12V sub battery (lithium ion battery) can be diagnosed with CONSULT.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

12V sub battery (lithium ion battery) supplies stable power to each electrical device and ECU.

INDIVIDUAL OPERATION

  • Lithium ion battery, battery management unit and relay are integrated in the 12V sub battery (lithium ion battery).

  • The battery management unit transmits the state of 12V sub battery (lithium ion battery), such as charged, discharged, its temperature and other state, to IPDM E/R by CAN communication.

COMPONENT PARTS LOCATION

The 12V sub battery (lithium ion battery) is mounted under the passenger seat. Refer to Component Parts Location.
