Special Service Tools

Tool number

(Kent-Moore No.)

Tool name 		Description

—

(—) Model GR8-1200

Multitasking battery and electrical diagnostic station

Tests batteries, starting and charging systems and charges batteries.

For operating instructions, refer to diagnostic station instruction manual.

—

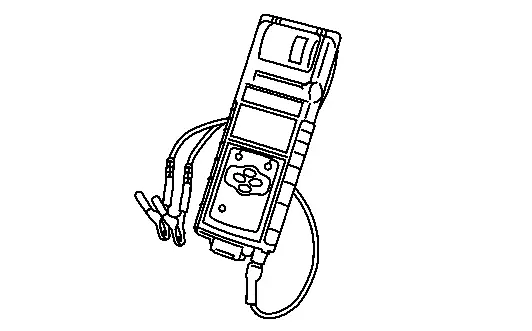

(—) Model EXP-800

Battery and electrical diagnostic analyzer

Tests batteries and charging systems.

For operating instructions, refer to diagnostic analyzer instruction manual.
