Nissan Rogue (T33) 2021-Present Service Manual: P0443 Evap Canister Purge Volume Control Solenoid Valve

Nissan Rogue (T33) 2021-Present Service Manual / Engine :: Engine Control System / Kr15ddt :: Dtc/circuit Diagnosis / P0443 Evap Canister Purge Volume Control Solenoid Valve

DTC Description

DTC DETECTION LOGIC

DTC

CONSULT screen terms

(Trouble diagnosis content) 		DTC detection condition
P0443 00

PURG VOLUME CONT/V

(EVAP system purge control valve "A" circuit) 		A Diagnosis condition Engine cold start
Signal (terminal) —
Threshold The canister purge flow is detected during the Nissan Ariya vehicle is stopped while the engine is running, even when EVAP canister purge volume control solenoid valve is completely closed
Diagnosis delay time —
B Diagnosis condition Engine cold start
Signal (terminal) —
Threshold The canister purge flow is detected during the specified driving conditions, even when EVAP canister purge volume control solenoid valve is completely closed
Diagnosis delay time —

POSSIBLE CAUSE

  • EVAP control system pressure sensor

  • EVAP canister purge volume control solenoid valve (The valve is stuck open.)

  • EVAP canister vent control valve

  • EVAP canister

  • Hoses (Hoses are connected incorrectly or clogged.)

FAIL-SAFE

Not applicable

DTC Confirmation Procedure

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

  1. Turn ignition switch OFF and wait at least 10 seconds.

  2. Turn ignition switch ON.

  3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

  • Perform DTC CONFIRMATION PROCEDURE when the fuel is between 1/4 and 3/4 full, and Nissan Ariya vehicle is placed on flat level surface.

  • Always perform test at a temperature of 5 to 60°C (41 to 140°F).

  • Cool the Nissan Ariya vehicle so that engine coolant temperature becomes same level as ambient temperature.

Do you have CONSULT

YES>>

GO TO 2.

NO>>

GO TO 4.

PERFORM DTC CONFIRMATION PROCEDURE A

With CONSULT

  1. Turn ignition switch ON.

  2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

  3. Check that the following condition are met.

    FUEL T/TMP SE: 0 - 35°C (32 - 95°F)

  4. Start engine and wait at least 60 seconds.

  5. Check 1st trip DTC.

Is 1st trip DTC detected?

YES>>

Proceed to DTC Diagnosis Procedure

NO>>

GO TO 3.

PERFORM DTC CONFIRMATION PROCEDURE B

With CONSULT

  1. Start engine and warm it up to normal operating temperature.

  2. Turn ignition switch OFF and wait at least 10 seconds.

  3. Turn ignition switch ON.

  4. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode of “ENGINE” using CONSULT.

  5. Touch “START”.

  6. Start engine and let it idle until “TESTING” on CONSULT changes to “COMPLETED”. (It will take approximately 10 seconds.)

    If “TESTING” is not displayed after 5 minutes, retry from step 2.

  7. Touch “SELF-DIAG RESULT”.

Which is displayed on CONSULT?

OK>>

INSPECTION END

NG>>

Proceed to DTC Diagnosis Procedure

PERFORM DTC CONFIRMATION PROCEDURE A

With GST

  1. Turn ignition switch ON.

  2. Check the voltage between ECM harness connector and ground.

    + − Voltage
    ECM
    Connector Terminal
    E21 136 Ground 3.1 - 4.0 V

  3. Start engine and wait at least 60 seconds.

  4. Check 1st trip DTC.

Is 1st trip DTC detected?

YES>>

Proceed to DTC Diagnosis Procedure

NO>>

GO TO 5.

PERFORM DTC CONFIRMATION PROCEDURE

With GST

  1. Start engine and warm it up to normal operating temperature.

  2. Turn ignition switch OFF and wait at least 10 seconds.

  3. Start engine and let it idle for at least 20 seconds.

  4. Check 1st trip DTC.

Is 1st trip DTC detected?

YES>>

Proceed to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY

  1. Turn ignition switch OFF.

  2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

  3. Turn ignition switch ON.

  4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and ground.

    + − Voltage
    EVAP canister purge volume control solenoid valve
    Connector Terminal
    F16 2 Ground Battery voltage

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

GO TO 2.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

  1. Turn ignition switch OFF.

  2. Disconnect IPDM E/R harness connector.

  3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and IPDM E/R harness connector.

    + − Continuity
    EVAP canister purge volume control solenoid valve IPDM E/R
    Connector Terminal Connector Terminal
    F16 2 F35 73 Existed

  4. Also check harness for short to ground.

Is the inspection result normal?

YES>>

Perform the trouble diagnosis for power supply circuit.

NO>>

Repair or replace error-detected parts.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT

  1. Turn ignition switch OFF.

  2. Disconnect ECM harness connector.

  3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and ECM harness connector.

    + − Continuity
    EVAP canister purge volume control solenoid valve ECM
    Connector Terminal Connector Terminal
    F16 1 F71 126 Existed

  4. Also check harness for short to power.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace error-detected parts.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

  1. Disconnect EVAP control system pressure sensor harness connector.

  2. Check connectors for water.

    Water should not exist.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace EVAP control system pressure sensor. Refer to Removal and Installation.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

  1. Turn ignition switch OFF.

  2. Reconnect harness connectors disconnected.

  3. Start engine.

  4. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Check that engine speed varies according to the valve opening.

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

GO TO 6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Check the EVAP canister purge volume control solenoid valve. Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

Replace EVAP canister purge volume control solenoid valve. Refer to Exploded View.

CHECK RUBBER TUBE FOR CLOGGING

  1. Disconnect rubber tube connected to EVAP canister vent control valve.

  2. Check the rubber tube for clogging.

Is the inspection result normal?

YES>>

GO TO 8.

NO>>

Clean the rubber tube using an air blower.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the EVAP canister vent control valve. Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 9.

NO>>

Replace EVAP canister vent control valve. Refer to Removal and Installation.

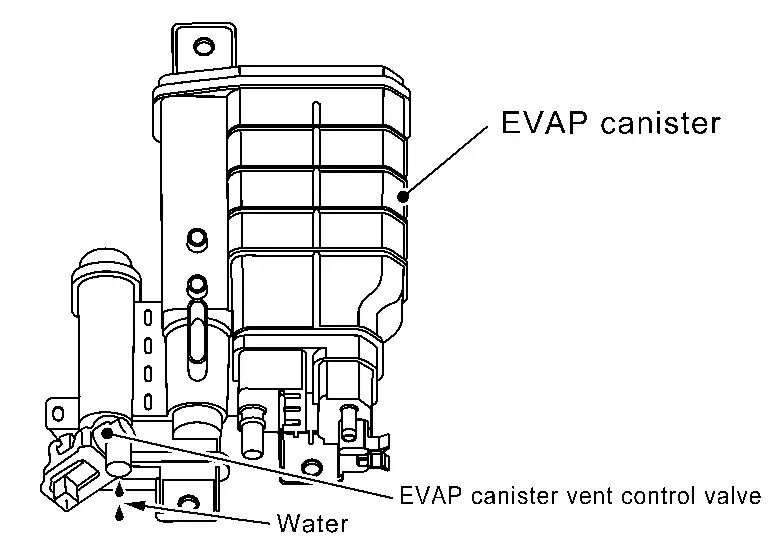

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

  1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.

  2. Check if water will drain from EVAP canister.

Does water drain from the EVAP canister?

YES>>

GO TO 10.

NO>>

Check intermittent incident. Refer to Intermittent Incident.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.

The weight should be less than 2.3 kg (5.1 lb).

Is the inspection result normal?

YES>>

Check intermittent incident. Refer to Intermittent Incident.

NO>>

GO TO 11.

DETECT MALFUNCTIONING PART

Check the following.

  • EVAP canister for damage

  • EVAP hose between EVAP canister and Nissan Ariya vehicle frame for clogging or poor connection

Is the inspection result normal?

YES>>

Replace EVAP control system pressure sensor. Refer to Removal and Installation.

NO>>

Repair hose or replace EVAP canister. Refer to Removal and Installation.
