Nissan Rogue (T33) 2021-Present Service Manual: System Description :: Component Parts. Door Mirror System
Door Mirror System

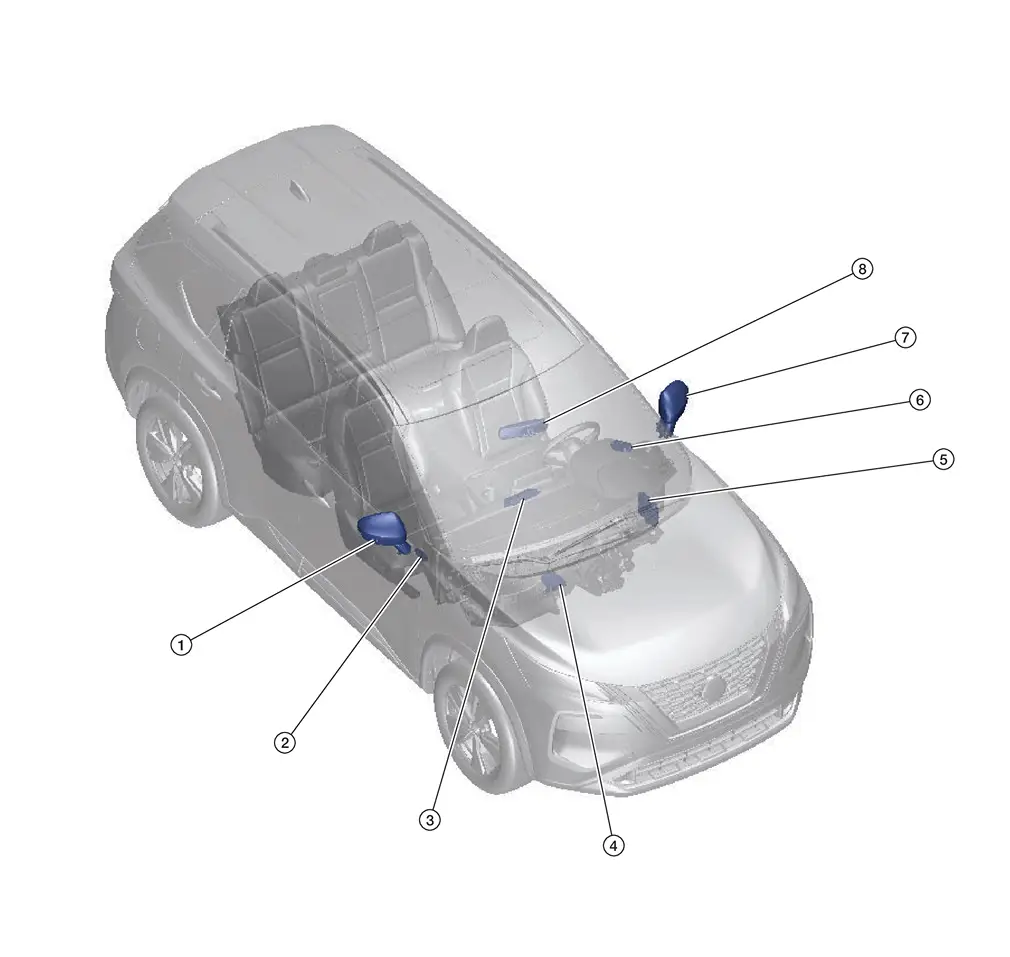

Component Parts Location

| No. | Component | Function |
|---|---|---|
| 1. | Door mirror RH |
|
| 2. | Passenger door mirror control module* | Refer to Passenger Door Mirror Control Module. |
| 3. | Driver seat control unit* |
Transmits the mirror control signal to BCM via CAN communication. Refer to Component Parts Location for detailed componet location. |
| 4. | Electric shift control module* |
Transmits the shift position signal to BCM via CAN communication. Refer to Component Parts Location for detailed component location. |
| 5. | BCM (Body Control Module) |
Transmits the mirror control signal and mirror position signal to power window main switch and passenger door mirror control module via LIN communication. Refer to Component Parts Location for detailed installation location. |
| 6. | Power window main switch | Refer to Power Window Main Switch (Without automatic drive positioner system or Power Window Main Switch (With automatic drive positioner system). |
| 7. | Door mirror LH |
|
| 8. | Auto Anti-Dazzling inside mirror | The sensor built inside the mirror detects the brightness of headlights of the Nissan Ariya vehicle behind and automatically changes the light transmission to decrease the brightness. Requires manual adjustment to decrease the brightness. |
*:With automatic drive positioner system

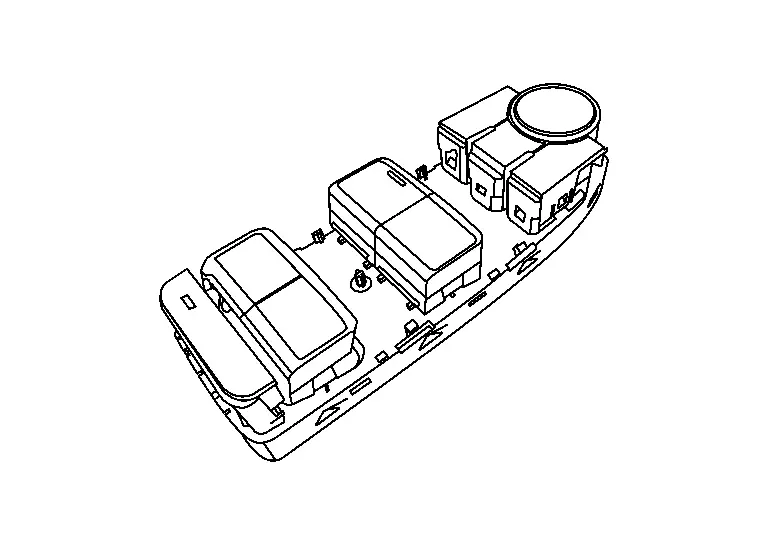

Power Window Main Switch (Without automatic drive positioner system)

-
Power window main switch is installed to front door finisher.
-
Power window main switch transmits mirror switch signal, changeover switch signal and door mirror power supply to door mirror.
-
Power window main switch transmits the mirror motor power supply to door mirror.
-
Mirror face angle adjustment is performed when mirror switch is operated.
Power Window Main Switch (With automatic drive positioner system)

-
Power window main switch is installed to front door finisher.
-
Power window main switch transmits mirror switch signal, changeover switch signal and door mirror power supply to door mirror LH.
-
Power window main switch transmits the mirror motor power supply to door mirror LH.
-
Power window main switch receives the mirror position signal from door mirror LH.
-
Mirror face angle adjustment is performed when mirror switch is operated.

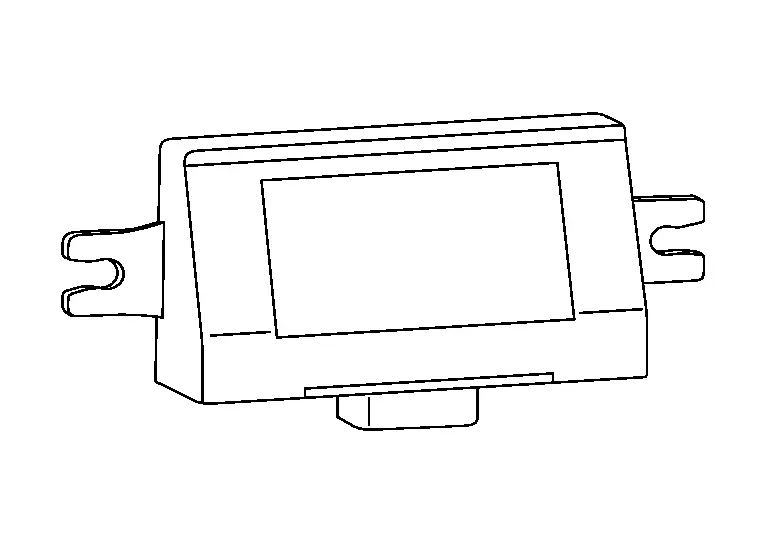

Passenger Door Mirror Control Module

-
Passenger door mirror control module is installed behind the front RH door finisher.
-
Passenger door mirror control module supplies mirror motor power supply in door mirror RH and operates door mirror RH.
-
Passenger door mirror control module transmits the mirror motor power supply to door mirror RH.
-
Passenger door mirror control module receives the mirror position signal from door mirror RH.
-
The mirror control signal is transmitted to passenger door mirror control module from BCM via LIN communication.
