Door Mirror System

System Description (With automatic drive positioner system)

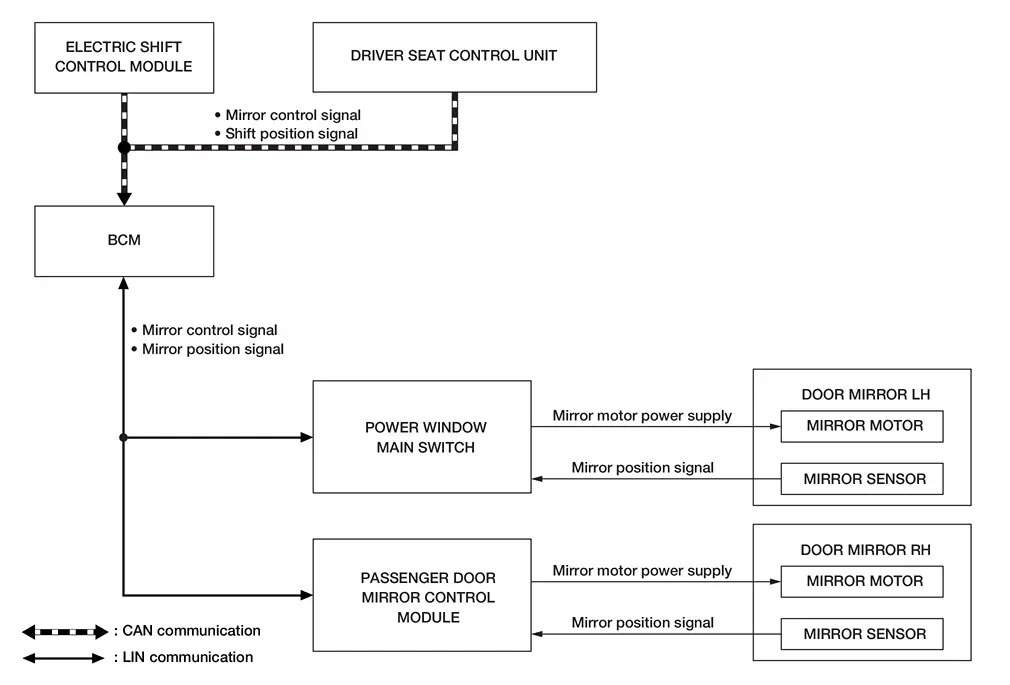

SYSTEM DIAGRAM

Signal transmission function list
Component Function
BCM Transmits the mirror control signal and mirror position signal to power window main switch and passenger door mirror control module via LIN communication.
Electric shift control module Transmits the shift position signal to BCM via CAN communication.
Driver seat control unit Transmits the mirror control signal to BCM via CAN communication.
Power window main switch Refer to Power Window Main Switch.
Passenger door mirror control module Refer to Passenger Door Mirror Control Module.

MANUAL OPERATION

Description

  • Power window main switch inputs mirror control signal and performs the LH/RH control of door mirror motor supplying electric power when changeover switch is operated.

  • Power window main switch inputs mirror control signal and supplies electric power to door mirror.

Operation Conditions

If the following conditions are not satisfied, operation is not performed:

  • Ignition switch: ON

  • Changeover switch: Select either left or right

AUTOMATIC DRIVE POSITIONER LINKED OPERATION

Door mirror control is included in automatic drive positioner system. Refer to automatic drive positioner system for more details. Refer to System Description.

REVERSE INTERLOCK DOOR MIRROR FUNCTION

Description

  • Select either of the door mirror faces by changeover switch, and then set mirror face downward.

  • When ignition switch is ON position and electric shift selector is in R position, electric shift control module sends the R signal to BCM.

  • The mirror control signal is transmitted to power window main switch and passenger door mirror control module from BCM via LIN communication.

  • When the mirror control signal is detected, power window main switch and passenger door mirror control module activated mirror motor.

Operation Conditions

If the following conditions are not satisfied, operation is not performed:

  • Ignition switch: ON

  • Shift selector: R position

  • Change over switch: Select either left or right

NOTE:

During the reverse interlock door mirror system, if all of the above conditions are not satisfied, mirror face returns to original angle.
