Nissan Rogue (T33) 2021-Present Service Manual: System Description :: Component Parts. Active Grille Shutter System

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Exterior / System Description :: Component Parts. Active Grille Shutter System

Active Grille Shutter System

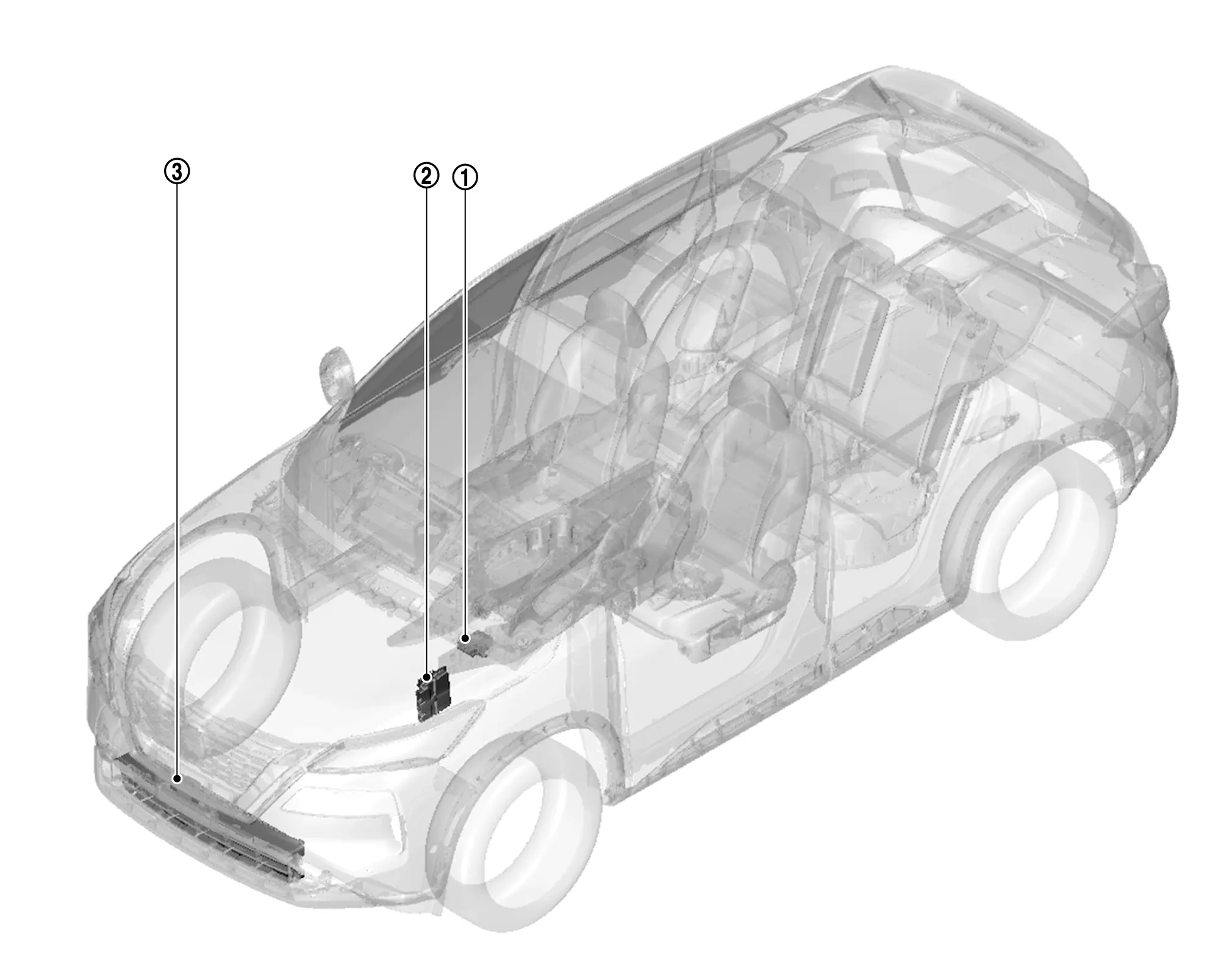

Component Parts Location

No. Component Function
IPDM E/R Refer to Component Parts Location for detailed component location.
ECM Refer to ECM for detailed component location.
Active grille shutter Refer to Active grille shutter.

For the engine related component parts, refer to Component Parts Location.

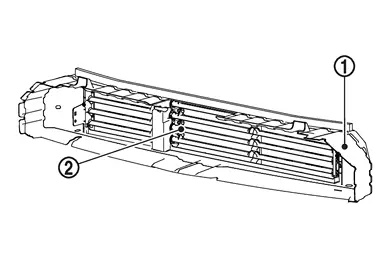

Active grille shutter

Active grille shutter (1) is located at front bumper lower opening, and according to the signal from ECM it operates actuator to perform open/close movement of flap (2) to control the amount of air flow taken into engine compartment.
