Propilot Assist 1.1 Steering Switch

Removal and Installation

REMOVAL

For servicing the Japan production ProPILOT Assist 1.1 steering switch, service the Japan production steering wheel. Refer to Removal and Installation.

NOTE:

The Japan production ProPILOT Assist 1.1 steering switch is serviced as an assembly with the Japan production steering switches, the Japan production paddle shifter, and the Japan production steering wheel.

For servicing the USA production ProPILOT Assist 1.1 steering switch, service the USA production steering switches. Refer to Removal and Installation.

NOTE:

The USA production ProPILOT Assist 1.1 steering switch is serviced as a kit with the USA production steering switches.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform the "ACTION TEST". Refer to Work Procedure (7 inch Information Display) or to Work Procedure (FULL TFT METER).

Steering Assist Switch

Removal and Installation

REMOVAL

Remove the instrument lower panel (LH). Refer to Removal and Installation.

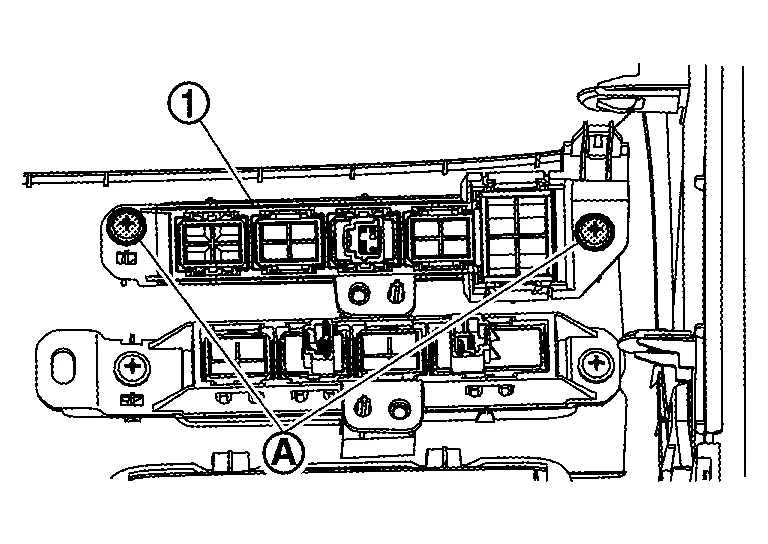

Remove fixing screws (A), then remove switch bracket (1) from instrument lower panel (LH).

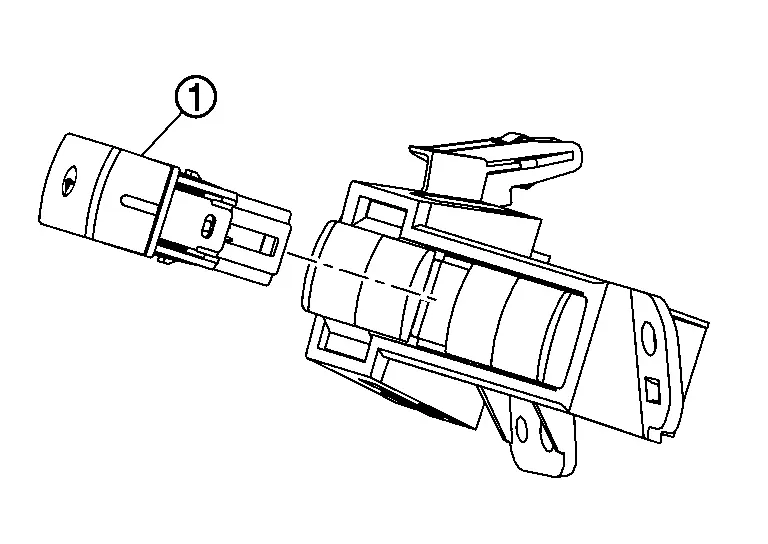

Release steering assist switch fixing pawls, and then remove steering assist switch (1) from switch bracket .

INSTALLATION

Installation is in the reverse order of removal.
