Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Sun visors

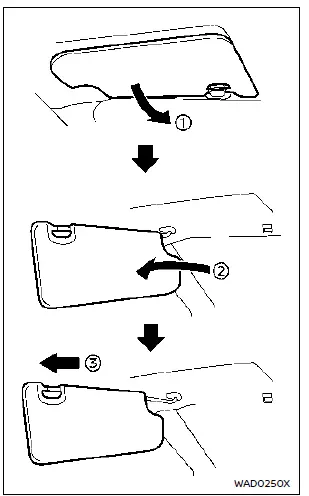

1. To block glare from the front, swing down the main sun visor 1.
2. To block glare from the side, remove the main sun visor from the center mount and swing it to the side 2.
3. Slide the sun visor 3 in or out as needed.
CAUTION
- Do not store the sun visor before returning the extension to its original position.
- Do not pull the extension sun visor forcedly downward.
