Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Rear sunshade

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide / Pre-driving checks and adjustments / Rear sunshade

Nissan Rogue. Rear sunshade

CAUTION

  • Do not release the rear sunshade during operation. This could damage the sunshade or cause injury.
  • Do not forcefully pull the sunshade. Doing so may elongate the sunshade, leading to improper operation or damage.
  • Do not place objects on or near the rear sunshade as this may interfere with proper operation and damage the sunshade.

The rear sunshades are installed on the rear seat windows of the Nissan Rogue.

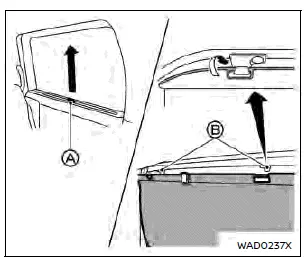

To raise the sunshade, pull the knob A up and hang the sunshade on the hooks B.

To store the sunshade, remove the sunshade from the hooks and lower it.

Assist grips

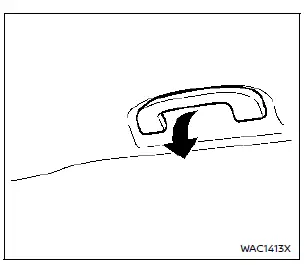

Nissan Rogue. Assist grips

The assist grips are located above the front and rear side windows.

CAUTION

Do not use the assist grip when getting into or out of the vehicle. This may damage the assist grip and cause you to fall.
