Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Side Guard Molding

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Exterior / Removal and Installation :: Side Guard Molding

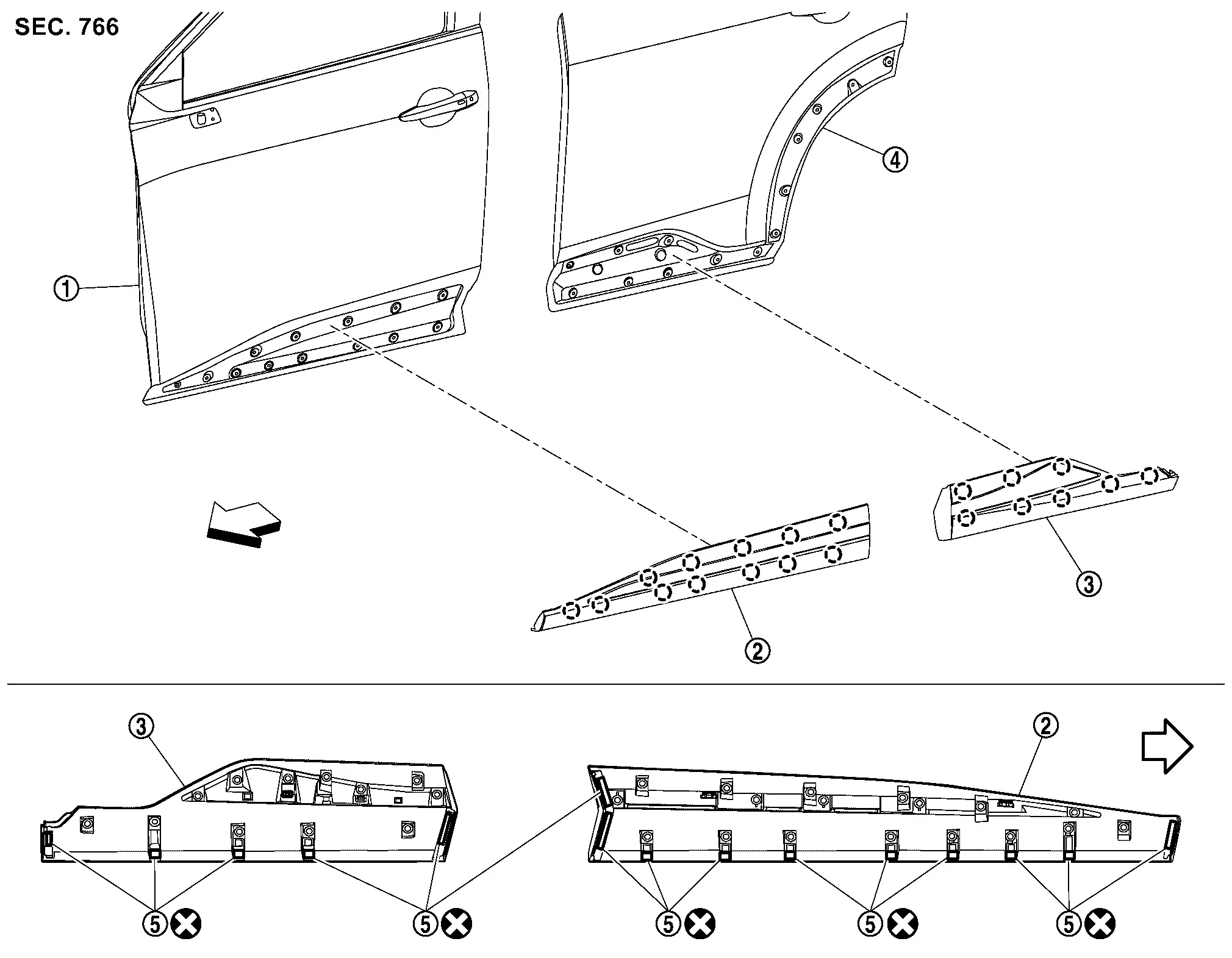

Exploded View

Front door panel Front side guard molding Rear side guard molding
Rear door panel

Double-sided tape

[t: 1.2 mm (0.047 in)]
: Clip
: Nissan Ariya Vehicle front
: Always replace after every disassembly.

Front Side Guard Molding

Removal and Installation

REMOVAL

CAUTION:

Never damage the front door panel.

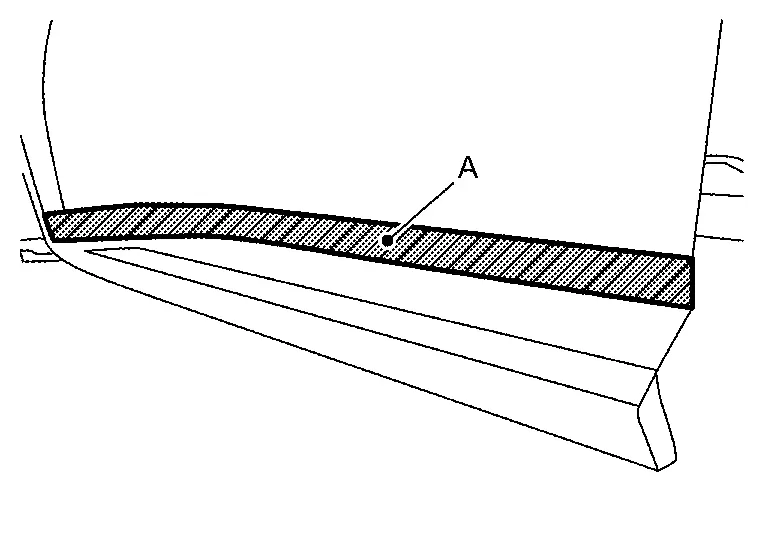

Apply a protective tape (A) on the part to protect it from damage.

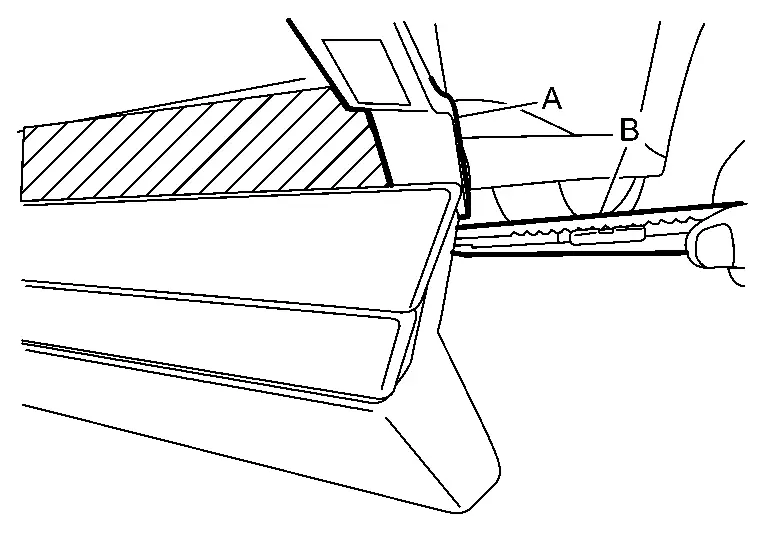

Cut double-sided tape using a remover tool (A) and cutter (B).

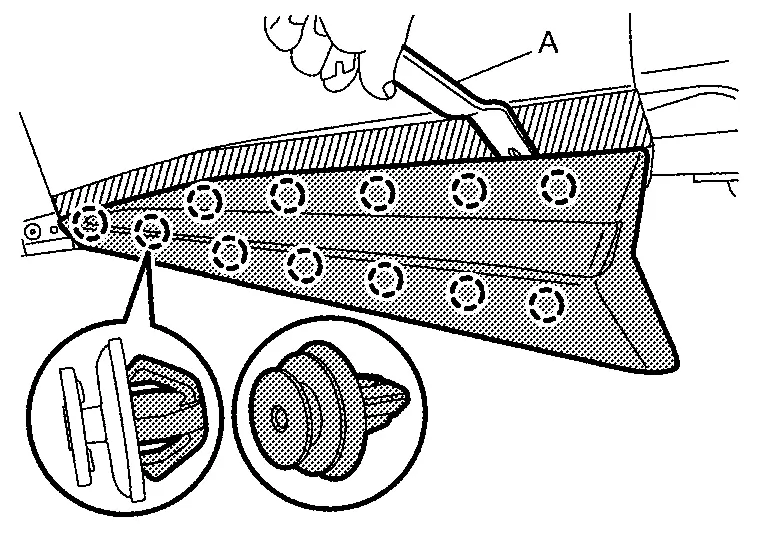

Disengage front side guard molding fixing clips using a remover tool (A), and then remove front side guard molding.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Always replace double-sided tape with a new one, if front side guard molding is reused.

  • Remove double-sided tape remaining on front door panel and back of front side guard molding with a double-sided tape remover, after removing front side guard molding.

  • When installing front side guard molding, visually check the clips, then replace them with new parts if they are damaged.

  • When installing front side guard molding, check that clips are securely in door panel holes, and press them in.

  • Never wash the Nissan Ariya vehicle within 24 hours after installing so as to keep adhesive.

Rear Side Guard Molding

Removal and Installation

REMOVAL

CAUTION:

Never damage the rear door panel.

Remove rear fillet molding front. Refer to Removal and Installation.

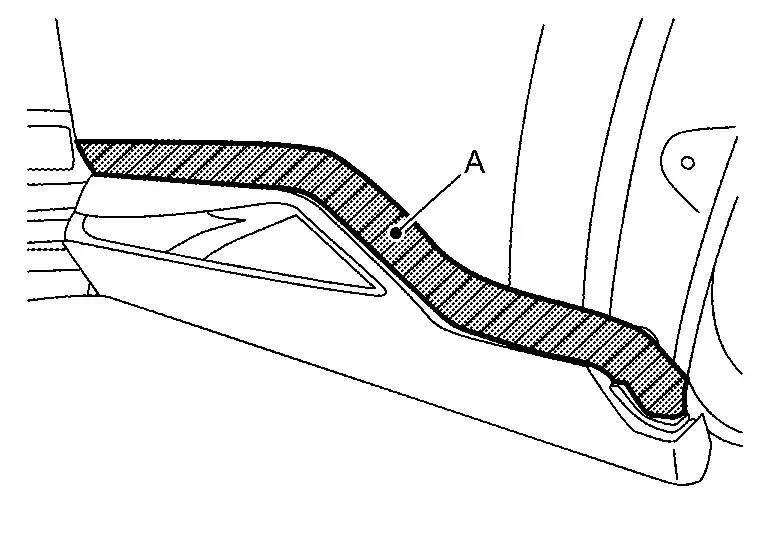

Apply a protective tape (A) on the part to protect it from damage.

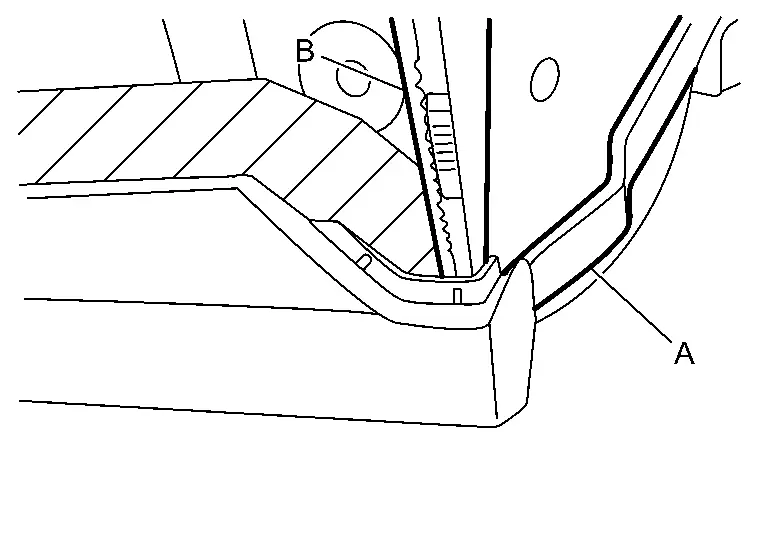

Cut double-sided tape using a remover tool (A) and cutter (B).

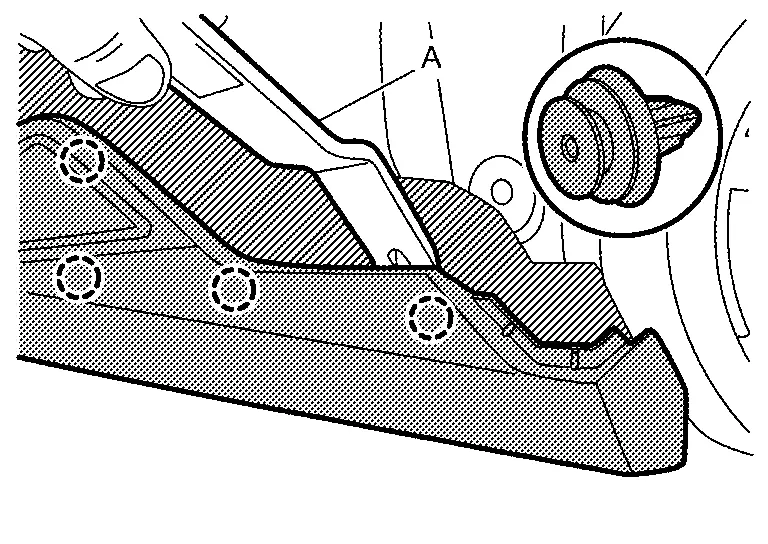

Disengage rear side guard molding fixing clips using a remover tool (A), and then remove rear side guard molding.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Always replace double-sided tape with a new one, if rear side guard molding is reused.

  • Remove double-sided tape remaining on rear door panel and back of rear side guard molding with a double-sided tape remover, after removing rear side guard molding.

  • When installing rear side guard molding, visually check the clips, then replace them with new parts if they are damaged.

  • When installing rear side guard molding, check that clips are securely in door panel holes, and press them in.

  • Never wash the Nissan Ariya vehicle within 24 hours after installing so as to keep adhesive.
