Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Seat Belt

Nissan Rogue (T33) 2021-Present Service Manual / Restraints :: Seat Belt / Removal and Installation :: Rear Seat Belt

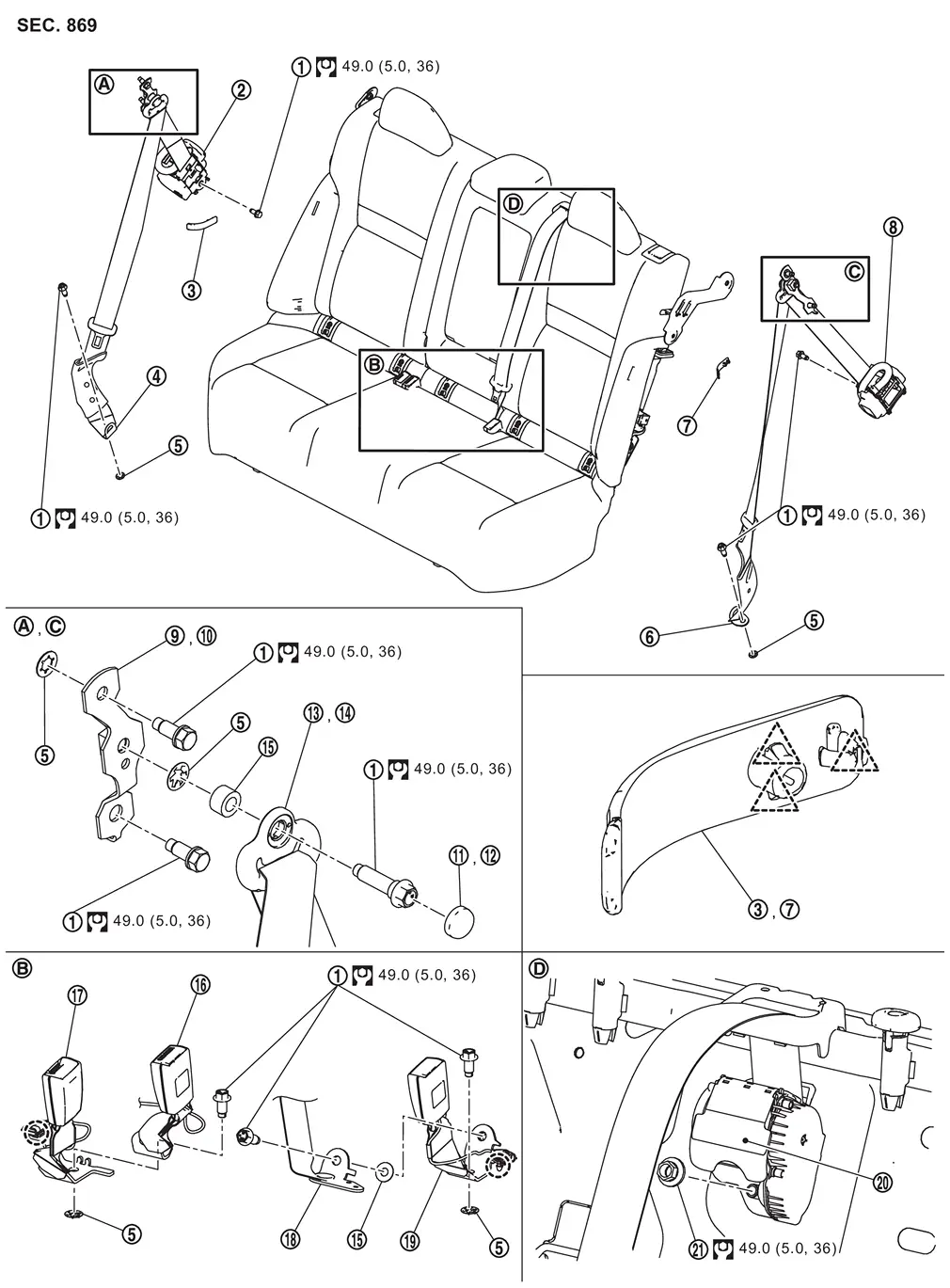

Exploded View

1. Anchor bolt 2. Seat belt pre-tensioner retractor RH 3. Seat belt hook RH
4. Anchor plate RH 5. Retaining washer 6. Anchor plate LH
7. Seat belt hook LH 8. Seat belt pre-tensioner retractor LH 9. Shoulder bracket RH
10. Shoulder bracket LH 11. Shoulder anchor cover RH 12. Shoulder anchor cover LH
13. Shoulder anchor RH 14. Shoulder anchor LH 15. Spacer
16. Center seat belt buckle 17. Seat belt buckle RH 18. Center anchor plate
19. Seat belt buckle LH 20. Center seat belt retractor 21. Anchor nut
: Clip
: Pawl
: N·m (kg-m, ft-lb)

Seat Belt Hook

Removal and Installation

REMOVAL

Remove luggage side lower finisher. Refer to Removal and Installation.

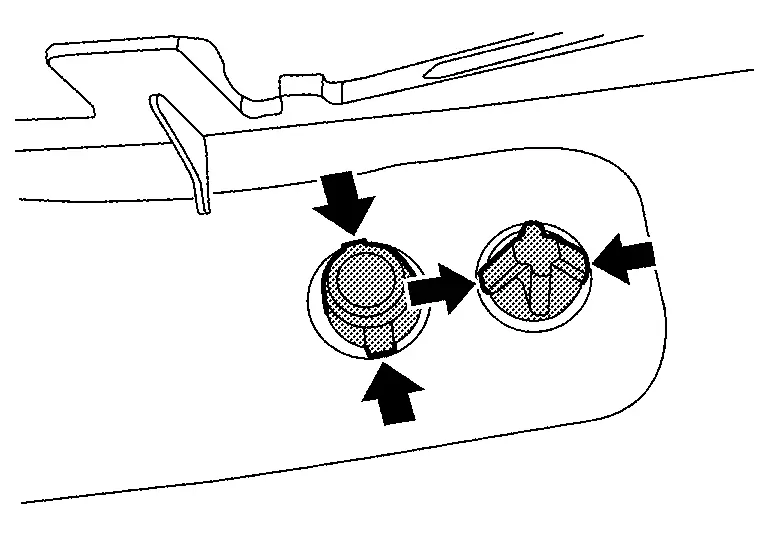

Press pawls indicated by arrows as shown in the figure and remove seat belt hook from luggage side finisher.

INSTALLATION

Install in the reverse order of removal.

Seat Belt Retractor

Removal and Installation

REMOVAL

Seat Belt Pre-tensioner Retractor (LH and RH)

Remove rear seat cushion. Refer to Removal and Installation.

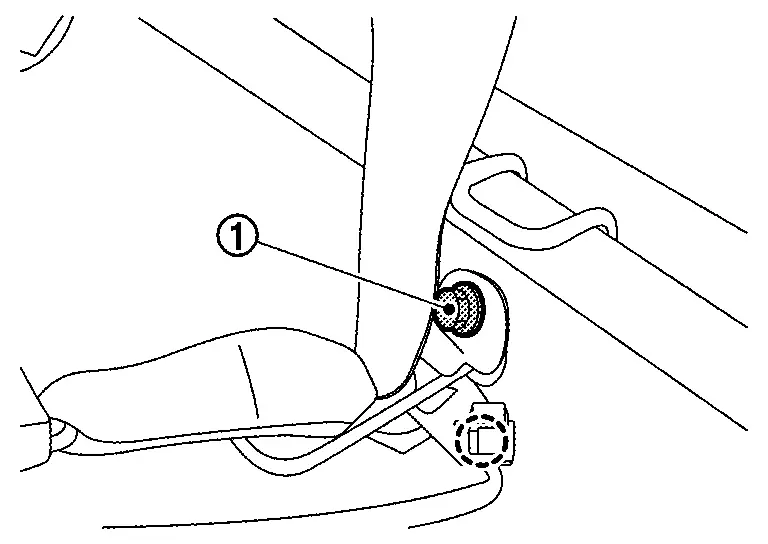

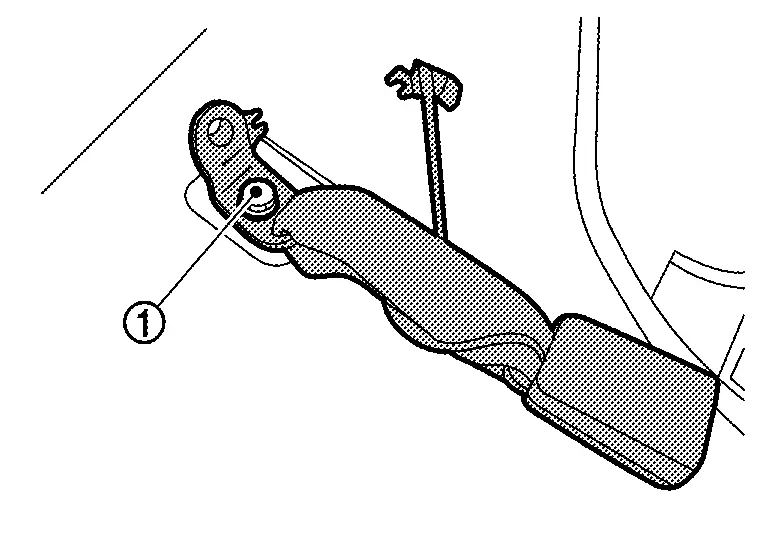

Remove anchor plate mounting anchor bolt (1).

Remove luggage side lower finisher. Refer to Removal and Installation.

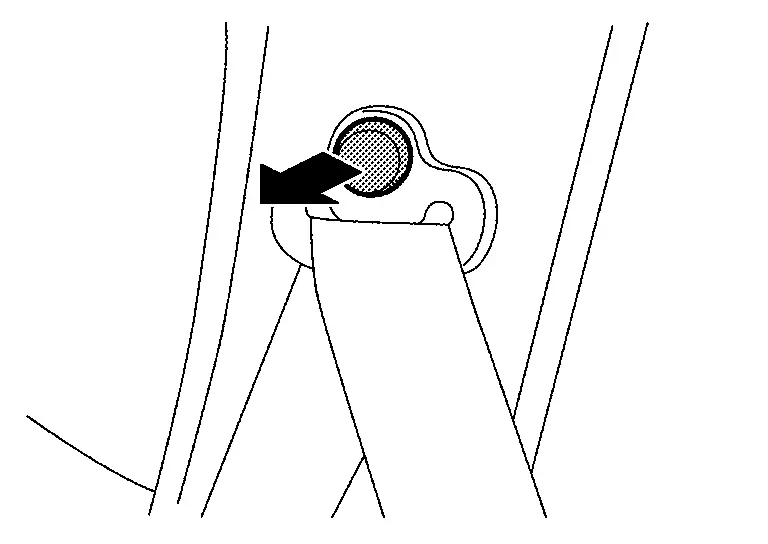

Remove shoulder anchor.Remove shoulder anchor cover.

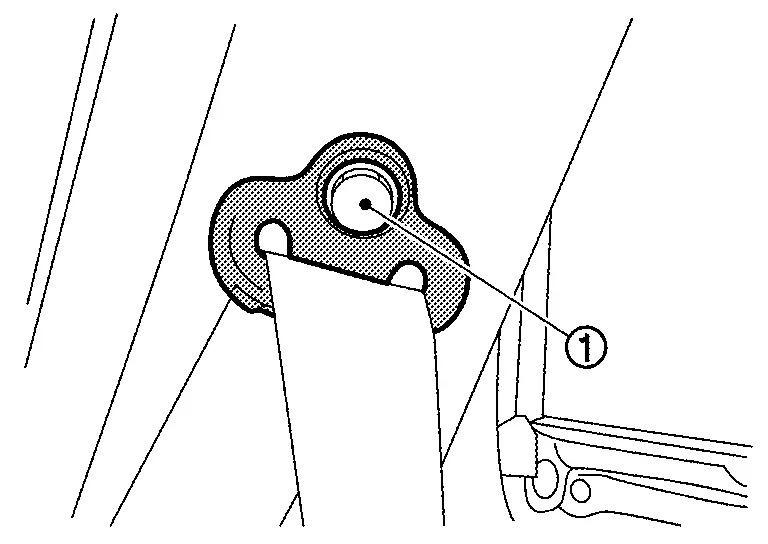

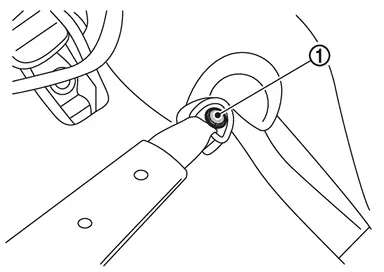

Remove shoulder anchor mounting anchor bolt (1), and then remove shoulder anchor.

Remove seatback striker. Refer to Removal and Installation.

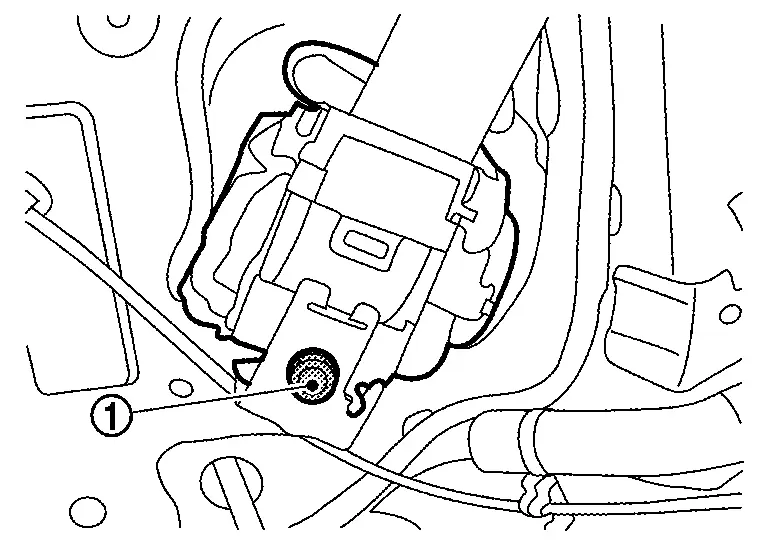

Remove seat belt pre-tensioner retractor mounting anchor bolt (1).

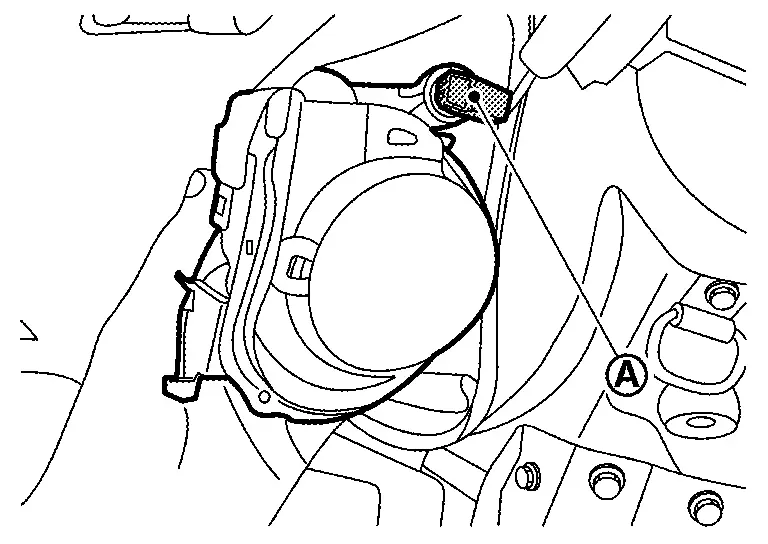

Disconnect seat belt pre-tensioner retractor harness connector (A).

CAUTION:

USA production:

  • For removing the lap pre-tensioner harness connector, lift tabs to release the lock and remove the harness connector.

  • For installing the harness connector, align the connector housing, then press firmly on the connector until the locking tabs are engaged.

CAUTION:

Japan production:

  • For installing/removing seat belt pre-tensioner retractor harness connector, insert thin screwdriver wrapped in tape into notch, lift lock and remove connector.

  • Install connector with lock raised, and push lock into connector.

  • After installing the connector, check that the lock is pushed securely into it.

Remove seat belt pre-tensioner retractor as a set.

CAUTION:

Never place pre-tensioner retractor in an area where the temperature reaches 80°C (176°F) or more.

Remove luggage side upper finisher. Refer to Removal and Installation.

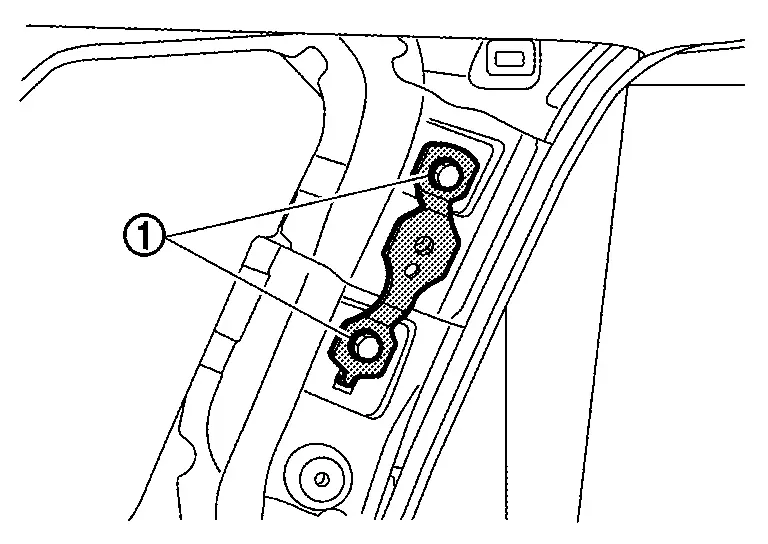

Remove shoulder bracket mounting anchor bolts (1), and then remove seat belt shoulder bracket.

Center Seat Belt Retractor

Remove rear seat cushion. Refer to Removal and Installation.

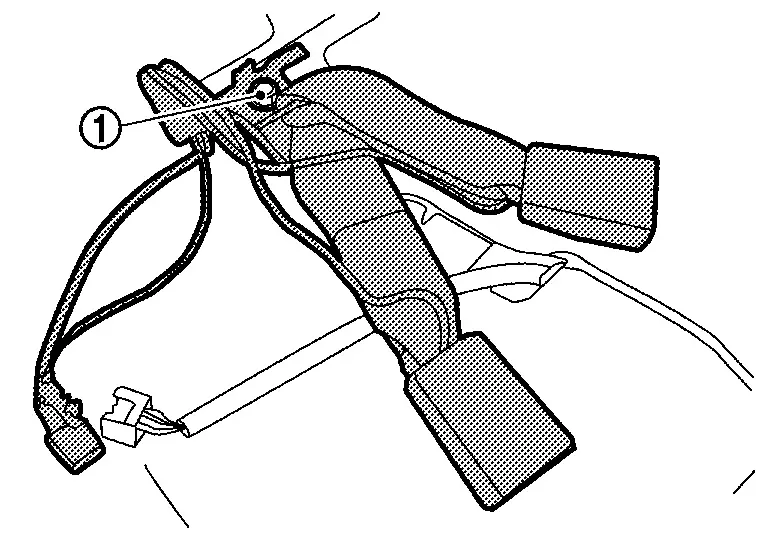

Disengage harness clip, and then remove anchor bolt (1).

: Harness clip

Remove rear seatback trim and pad as a set. Refer to Disassembly and Assembly.

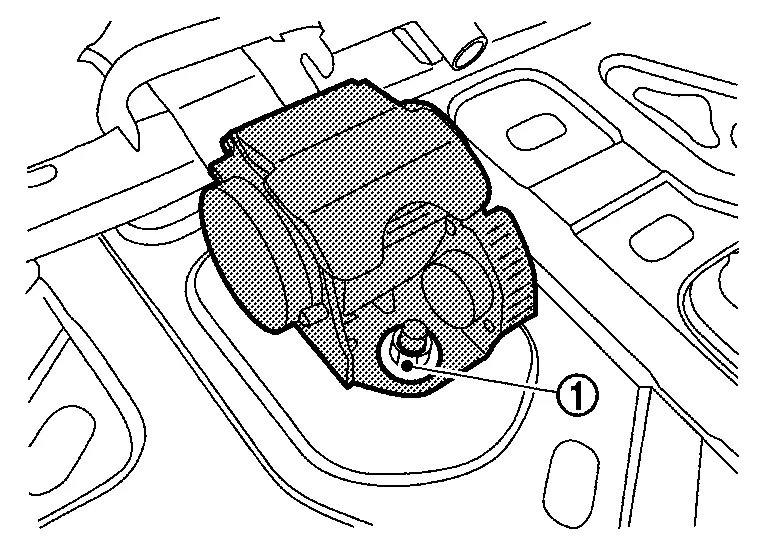

Remove center seat belt retractor mounting anchor nut (1), and then remove center seat belt retractor as a set.

INSTALLATION

Install in the reverse order of removal.

Inspection

AFTER A COLLISION

WARNING:

To avoid the risk of death or severe injury:

  • Inspect all seat belt system components including the seat belt webbing, retractors, pretensioners, buckles, anchors, and attaching hardware after any collision.

  • NISSAN/INFINITI recommends that all seat belt assemblies and buckles in use during a collision be replaced unless the collision was minor and all seat belt system components including the seat belt webbing, retractors, pretensioners, buckles, anchors, and attaching hardware show no damage and continue to operate properly.

  • Inspect all seat belt assemblies and components including webbing, retractors, buckles, anchors and attaching hardware not in use during a collision. Replace if either damage or improper operation is noted.

  • Seat belt pretensioners activate whenever an air bag deploys and cannot be reused. If an air bag deploys, always replace the seat belt assemblies and system components including webbing, retractors, buckles, anchors and attaching hardware, even if the seat belts were not in use during a collision.

  • Failure to follow any of the above steps could result in serious personal injury in an accident.

Replace any seat belt assembly (including anchor bolts) if:

  • The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

  • The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

  • The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

  • Anchor bolts are deformed or worn out.

  • The seat belt assembly must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

Check the seat belt warning lamp for proper operation as per the following:Place the ignition switch in the ON position. The seat belt warning lamp should illuminate. Fasten driver seat belt. The seat belt warning lamp should turn OFF.

If the air bag warning lamp turns ON, perform self-diagnosis using CONSULT. Refer to CONSULT Function.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Check the shoulder seat belt guide for rear seat. Check that guide swivels freely and that webbing lays flat and does not bind in guide.

Check retractor operation:Fully extend the seat belt webbing and check for twists, tears or other damage. Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the loops of that upper anchors can cause the seat belts to retract slowly. Fasten the seat belt. Check that the seat belt is securely fastened. Release the seat belt. Check that the webbing and tongue return to their original position.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR)

NOTE:

All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the retractor will lock and prevent the webbing from extending any further.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating properly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from extending further.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a large, empty parking lot). Road surface must be paved and dry. Never perform the following test on wet or gravel roads or on public streets and highways. This could result in an accident and serious personal injury. The driver and passenger must be prepared to brace themselves in the event that the retractor does not lock.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

Proceed to the designated safe area.

Drive the Nissan Ariya vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop and the driver and passenger must be prepared to brace themselves in the event that the retractor does not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, perform the retractor off-Nissan Ariya vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

Remove rear seat belt retractor assembly. Refer to Removal and Installation.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the figure.

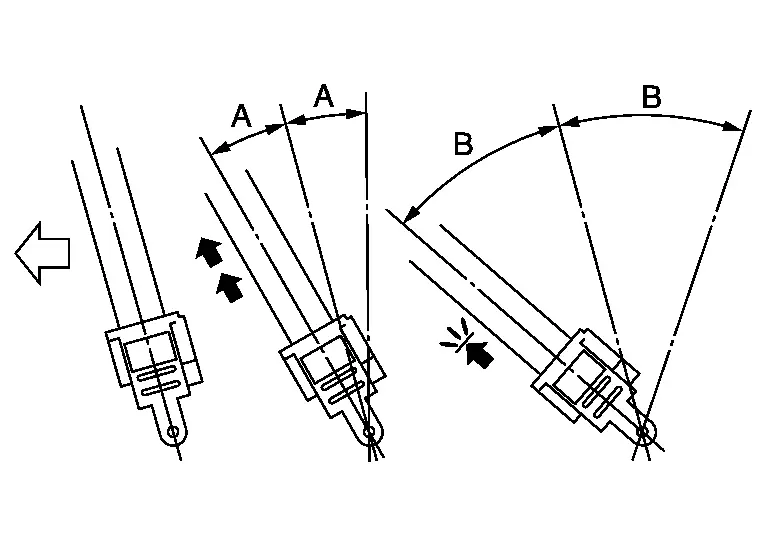

Outer Seat Belt Retractor

  • The webbing can be pulled out when the angle (A) is 12 degrees or less.

  • The webbing cannot be pulled out when the angle (B) is 27 degrees or more.

    A and B : Tilting angles
    : Nissan Ariya Vehicle front

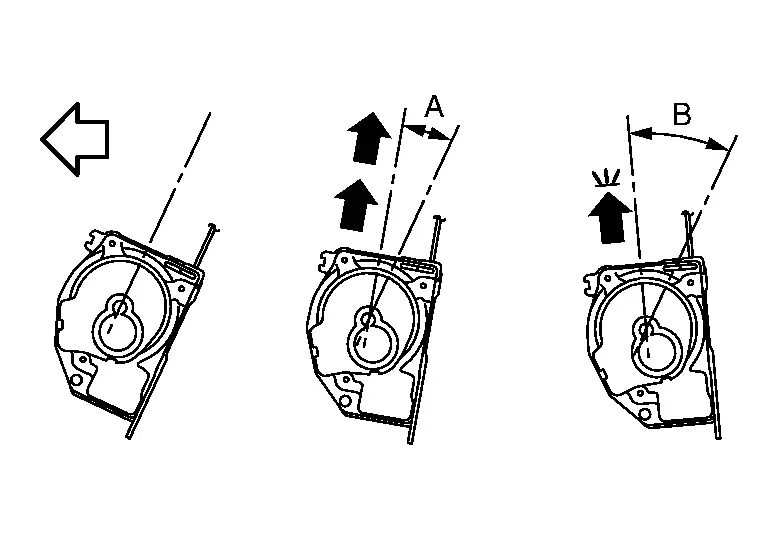

Center Seat Belt Retractor

  • The webbing can be pulled out when the angle (A) is 12 degrees or less.

  • The webbing cannot be pulled out when the angle (B) is 27 degrees or more.

    A and B : Tilting angles
    : Nissan Ariya Vehicle front

Replace the seat belt assembly if it does not operate normally.

Seat Belt Buckle

Removal and Installation

REMOVAL

Seat Belt Buckle LH

Remove rear seat cushion. Refer to Removal and Installation.

Disengage harness clip, and then remove anchor bolt .

: Harness clip

Disconnect harness connector.

Remove anchor bolt , and then remove seat belt buckle LH.

Center Seat Belt Buckle and Seat Belt Buckle RH

Remove rear seat cushion. Refer to Removal and Installation.

Disconnect harness connector.

Remove anchor bolt , and then remove center seat belt buckle and seat belt buckle RH.

INSTALLATION

Install in the reverse order of removal.

Inspection

AFTER A COLLISION

WARNING:

To avoid the risk of death or severe injury:

  • Inspect all seat belt system components including the seat belt webbing, retractors, pretensioners, buckles, anchors, and attaching hardware after any collision.

  • NISSAN/INFINITI recommends that all seat belt assemblies and buckles in use during a collision be replaced unless the collision was minor and all seat belt system components including the seat belt webbing, retractors, pretensioners, buckles, anchors, and attaching hardware show no damage and continue to operate properly.

  • Inspect all seat belt assemblies and components including webbing, retractors, buckles, anchors and attaching hardware not in use during a collision. Replace if either damage or improper operation is noted.

  • Seat belt pretensioners activate whenever an air bag deploys and cannot be reused. If an air bag deploys, always replace the seat belt assemblies and system components including webbing, retractors, buckles, anchors and attaching hardware, even if the seat belts were not in use during a collision.

  • Failure to follow any of the above steps could result in serious personal injury in an accident.

Replace any seat belt assembly (including anchor bolts) if:

  • The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

  • The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

  • The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

  • Anchor bolts are deformed or worn out.

  • The seat belt assembly must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

Check the seat belt warning lamp for proper operation as per the following:Place the ignition switch in the ON position. The seat belt warning lamp should illuminate. Fasten driver seat belt. The seat belt warning lamp should turn OFF.

If the air bag warning lamp turns ON, perform self-diagnosis using CONSULT. Refer to CONSULT Function.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Repeat step above if necessary to check the other seat belts.
