Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Front Seat Belt

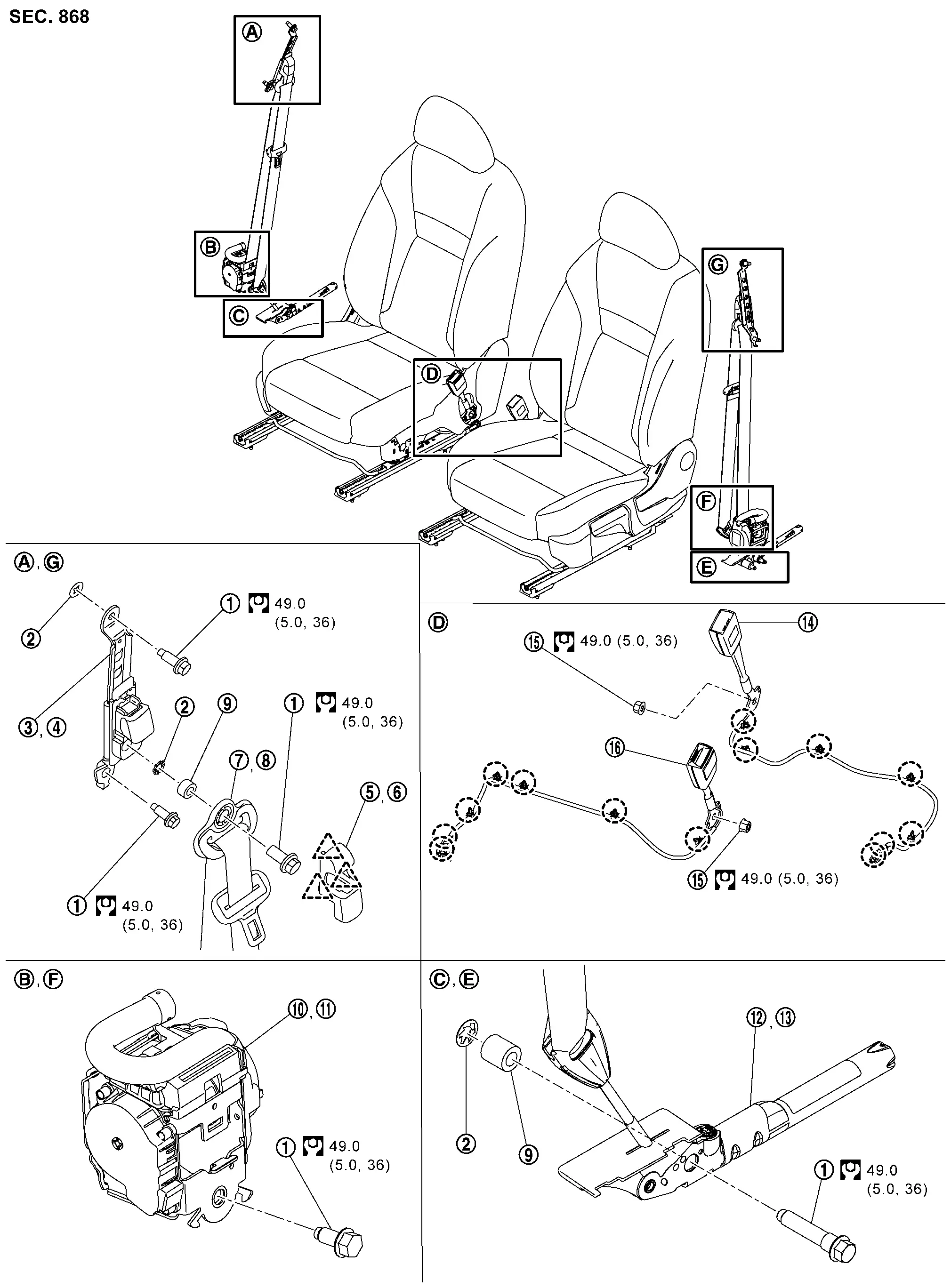

Exploded View

	Anchor bolt		Retaining washer		Seat belt adjuster RH
	Seat belt adjuster LH		Adjuster cover RH		Adjuster cover LH
	Shoulder anchor RH		Shoulder anchor LH		Spacer
	Seat belt pre-tensioner retractor RH		Seat belt pre-tensioner retractor LH		Lap pre-tensioner RH
	Lap pre-tensioner LH		Seat belt buckle LH		Anchor nut
	Seat belt buckle RH
	: Clip
	: Pawl
	: N·m (kg-m, ft-lb)

Seat Belt Retractor

Removal and Installation

WARNING:

Before servicing, place the ignition switch in the OFF position, disconnect battery negative terminal and wait for 3 minutes or more (discharges electricity held in the additional power supply circuit of the air bag diagnosis sensor unit).

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

REMOVAL

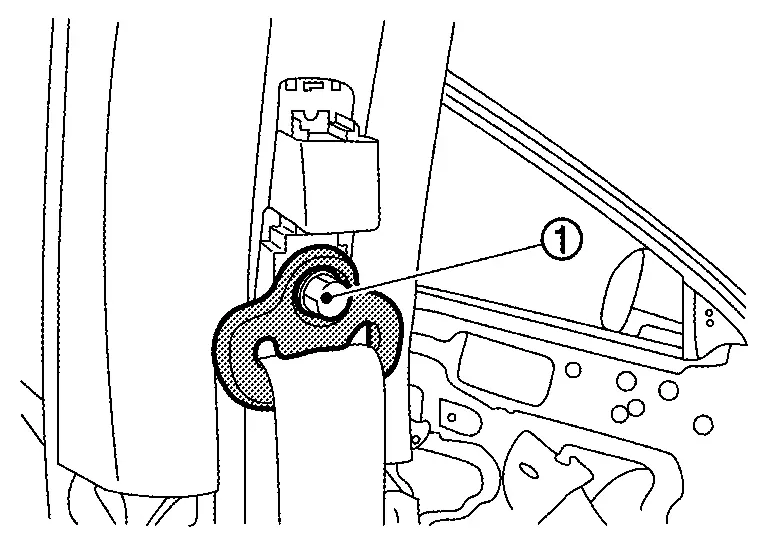

Remove shoulder anchor.Slide front seat to front most position. Remove adjuster cover.

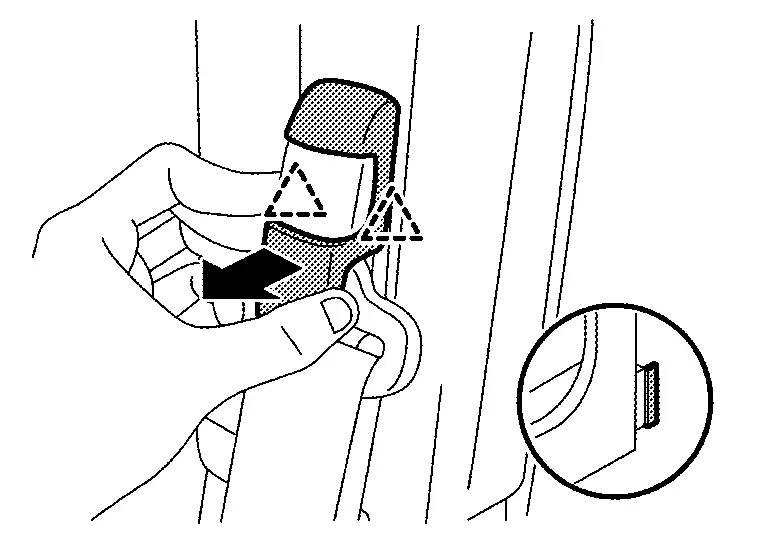

1. Pull adjuster cover lower side, and then disengage adjuster cover lower side fixing pawls.



   : Pawl

2. Apply protective tape (A) on parts to protect it from damage.

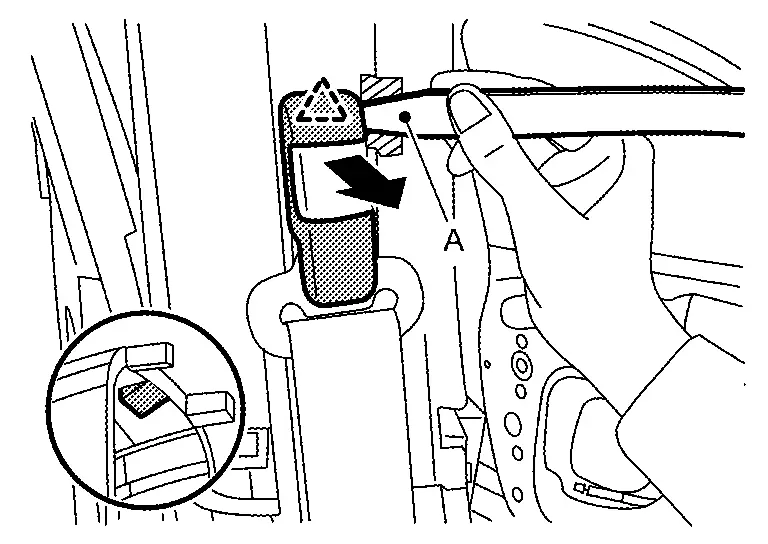

3. Disengage adjuster cover upper side fixing pawl using a remover tool (A).



   : Pawl

4. Pull adjuster cover, and then remove adjuster cover.



   NOTE:

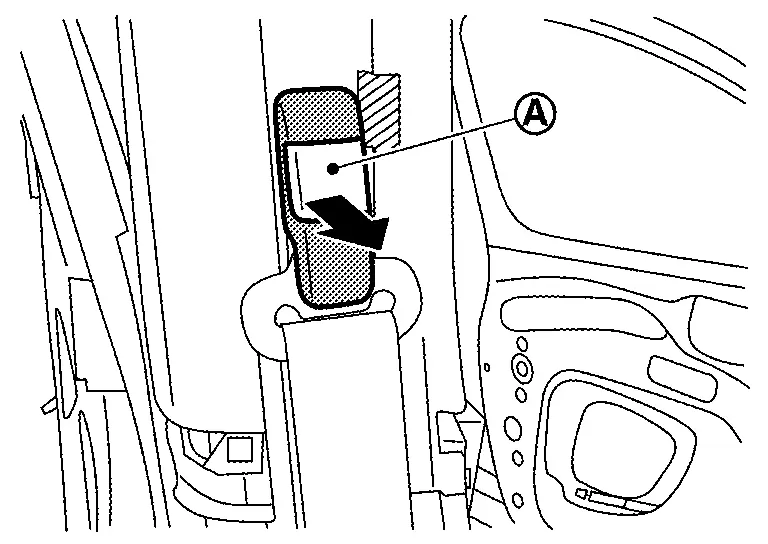

   • When remove an adjuster cover, the release button (A) of seat belt adjuster may come off.

   • Install a release button according to the installation procedure after removed a center pillar upper garnish. Refer to Removal and Installation.

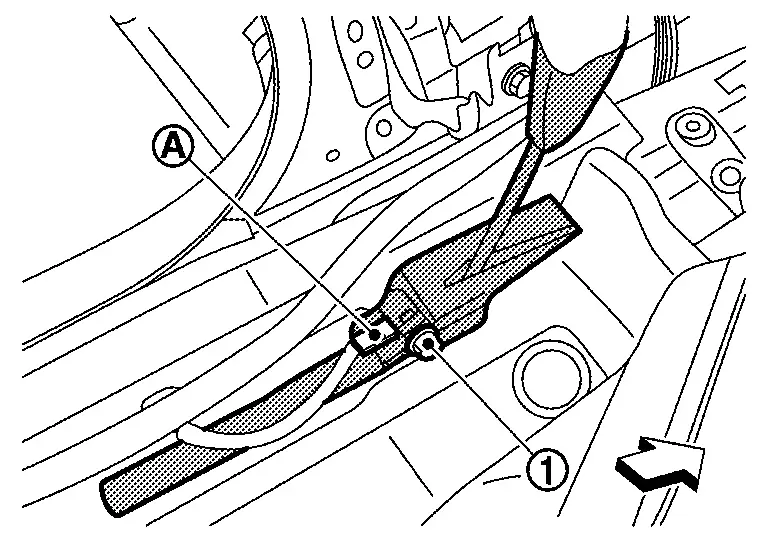

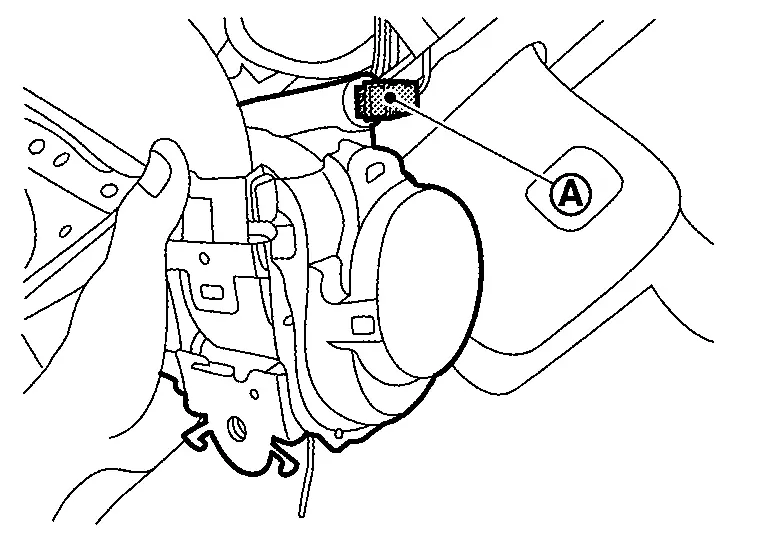

Remove lap pre-tensioner.Remove center pillar lower garnish. Refer to Removal and Installation. Peel off front floor carpet to secure work space. Refer to Removal and Installation. Disconnect lap pre-tensioner harness connector (A) and remove anchor bolt (1) and then remove lap pre-tensioner.

: Nissan Ariya Vehicle front

CAUTION:

USA production:

CAUTION:

Japan production:

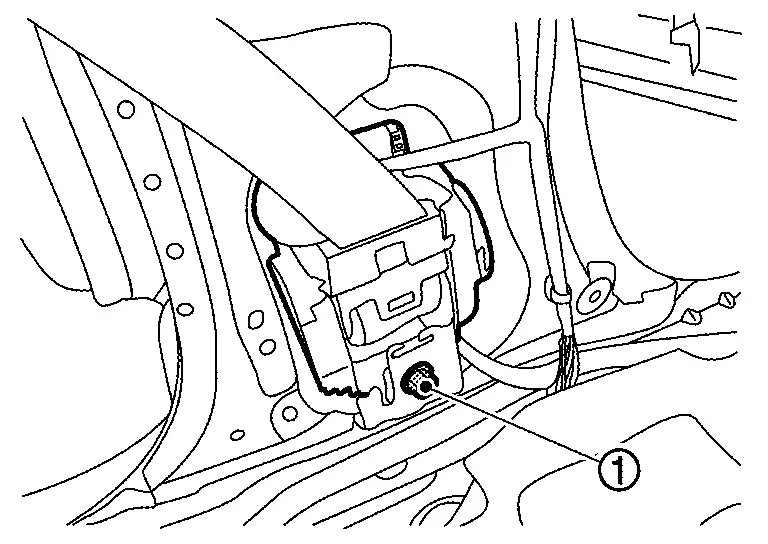

Remove seat belt pre-tensioner retractor.Remove seat belt pre-tensioner retractor mounting anchor bolt (1).

CAUTION:

USA production:

CAUTION:

Japan production:

CAUTION:

Never place seat belt pre-tensioner retractor and lap pre-tensioner in an area where the temperature reaches 80°C (176°F) or more.

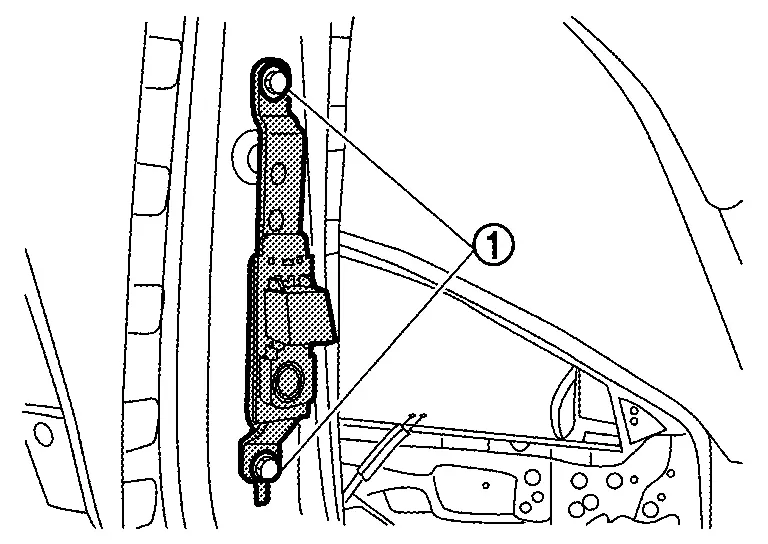

Remove seat belt adjuster.Remove center pillar upper garnish. Refer to Removal and Installation. Remove seat belt adjuster mounting anchor bolts (1), and then remove seat belt adjuster.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

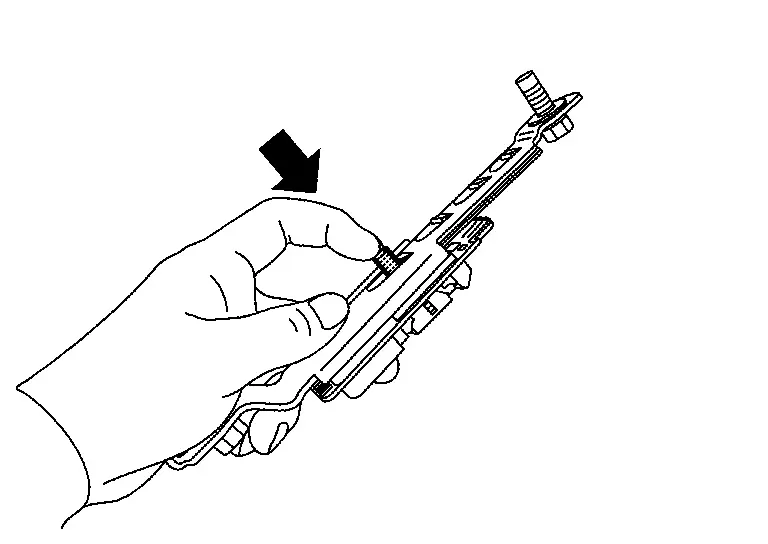

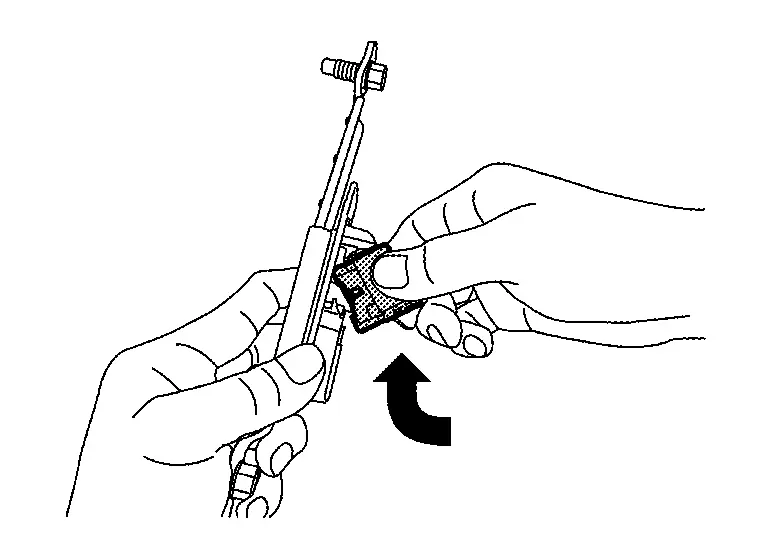

If come off release button from seat belt adjuster, install following procedure.

Inspection

AFTER A COLLISION

WARNING:

To avoid the risk of death or severe injury:

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt assembly must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

Check the seat belt warning lamp for proper operation as per the following:Place the ignition switch in the ON position. The seat belt warning lamp should illuminate. Fasten the seat belt. The seat belt warning lamp should turn OFF.

If the air bag warning lamp turns ON, perform self-diagnosis using CONSULT. Refer to CONSULT Function.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Check that guide swivels freely and that webbing lays flat and does not bind in guide. Check that height adjuster operates properly and holds securely.

Check retractor operation:Fully extend the seat belt webbing and check for twists, tears or other damage. Allow the seat belt to retract. Check that seat belt returns smoothly and completely to the retractor. If the webbing does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE SET” and perform the following steps.

Inspect The Front Seat Belt Shoulder Anchor

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Fix the seat belt at the center pillar webbing opening with a clip or other device.

3. Pass a thin wire through the shoulder anchor webbing opening. Hold both ends of the wire and pull it tightly while moving it up and down several times along the webbing opening surface to remove dirt stuck there.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean cloth.

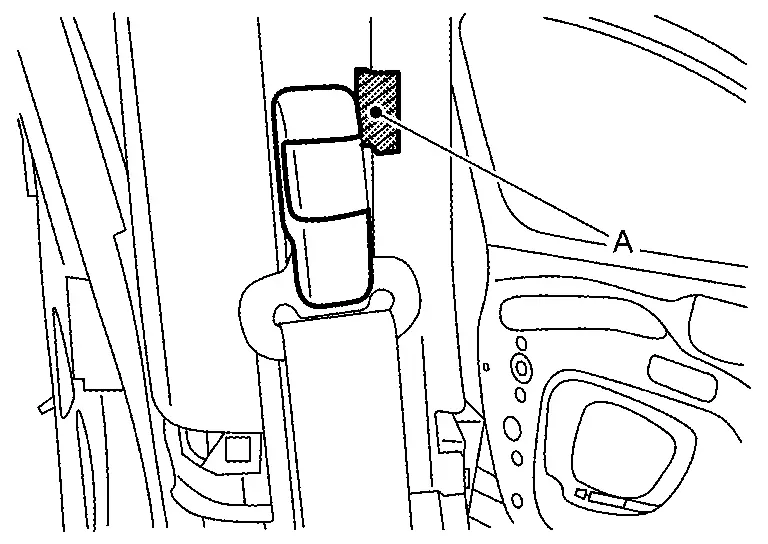

5. Apply tape at the point where the webbing contacts the shoulder anchor webbing opening.

   NOTE:

   Apply the tape so that there is no slack or wrinkling.

6. Remove the clip fixing the seat belt and check that the webbing returns smoothly.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR)

NOTE:

All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the retractor will lock and prevent the webbing from extending any further.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating properly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from extending further.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a large, empty parking lot). Road surface must be paved and dry. Never perform the following test on wet or gravel roads or on public streets and highways. This could result in an accident and serious personal injury. The driver and passenger must be prepared to brace themselves in the event that the retractor does not lock.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

Proceed to the designated safe area.

Drive the Nissan Ariya vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop and the driver and passenger must be prepared to brace themselves in the event that the retractor does not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, perform the retractor off-Nissan Ariya vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

Remove front seat belt retractor assembly. Refer to Removal and Installation.

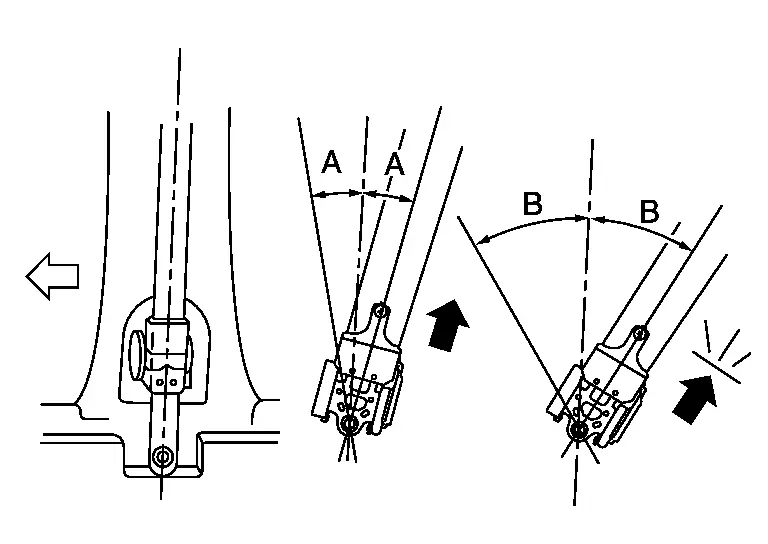

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the figure.

• The webbing can be pulled out when the angle (A) is 15 degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27 degrees or more.

A and B	: Tilting angles
	: Nissan Ariya Vehicle front

Replace the seat belt assembly if it does not operate normally.

Seat Belt Buckle

Removal and Installation

REMOVAL

Remove front seat (manual seat). Refer to Removal and Installation.

Disconnect seat belt buckle harness connector and disengage harness clip.

Remove seat belt buckle mounting anchor nut, and then remove seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

Inspection

AFTER A COLLISION

WARNING:

To avoid the risk of death or severe injury:

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt assembly must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

Check the seat belt warning lamp for proper operation as per the following:Place the ignition switch in the ON position. The seat belt warning lamp should illuminate. Fasten driver seat belt. The seat belt warning lamp should turn OFF.

If the air bag warning lamp turns ON, perform self-diagnosis using CONSULT. Refer to CONSULT Function.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Repeat steps above if necessary to check the other seat belts.
