Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Lower Link

Nissan Rogue (T33) 2021-Present Service Manual / Suspension :: Rear Suspension / Removal and Installation :: Rear Lower Link

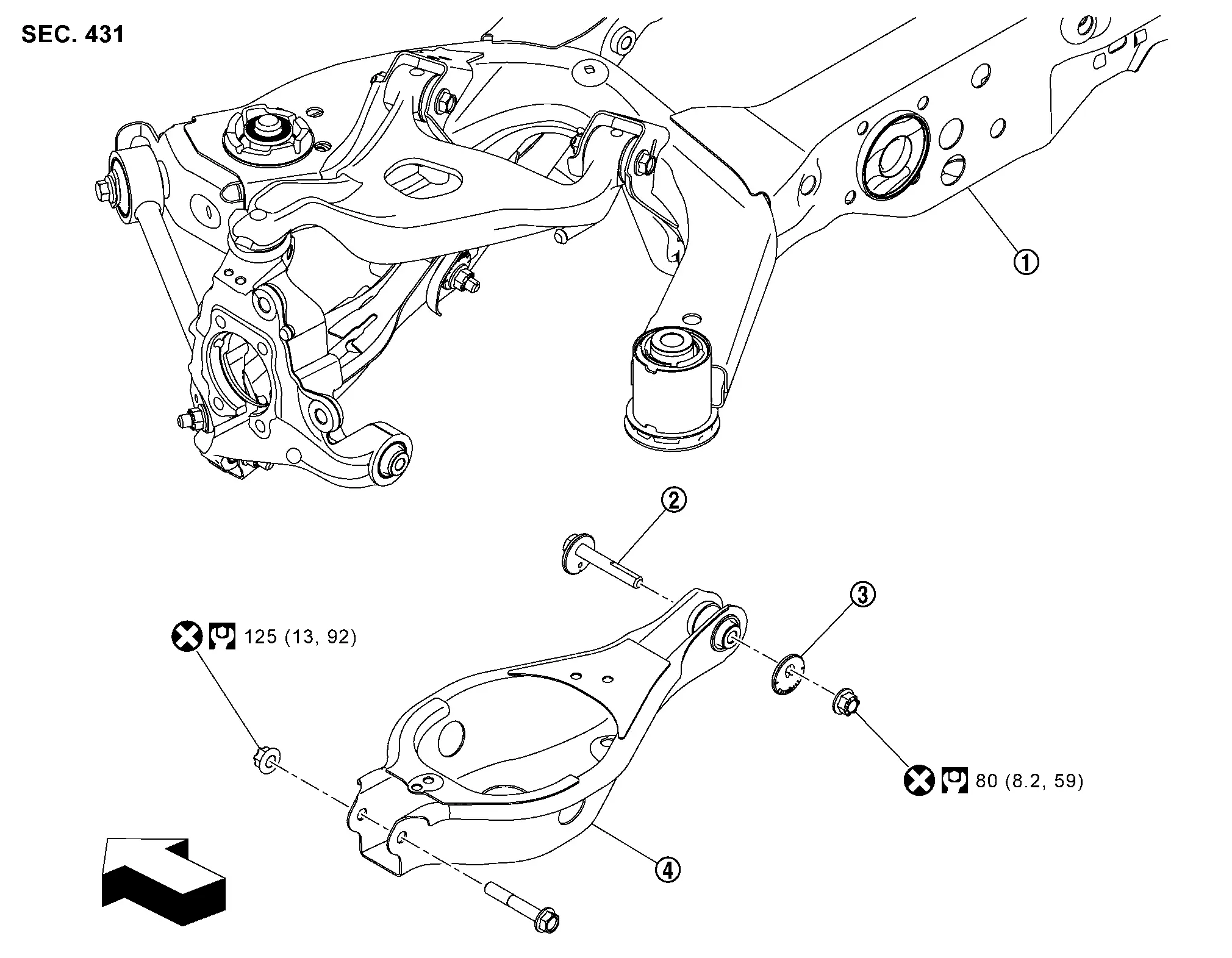

Exploded View

JAPAN PRODUCTION MODELS

Rear suspension member Adjusting bolt Eccentric disk
Rear lower link
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

NORTH AMERICA PRODUCTION MODELS

Rear suspension member Adjusting bolt Eccentric disk
Rear lower link
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

Removal and Installation

REMOVAL

Remove rear coil spring. Refer to Removal and Installation.

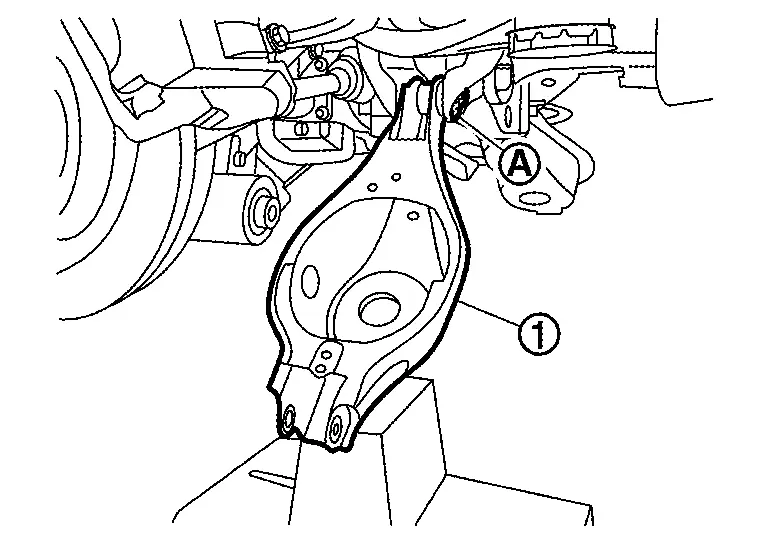

Remove rear lower link mounting bolt .

Perform inspection after removal. Refer to Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform final tightening of fixing parts at the vehicle installation position (rubber bushing), under unladen conditions with tires on level ground.

  • Perform inspection after installation. Refer to Inspection.

Inspection

INSPECTION AFTER REMOVAL

Check rear lower link and bushing for deformation, crack, and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to Inspection.
