Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Front Lower Link

Nissan Rogue (T33) 2021-Present Service Manual / Suspension :: Rear Suspension / Removal and Installation :: Front Lower Link

Exploded View

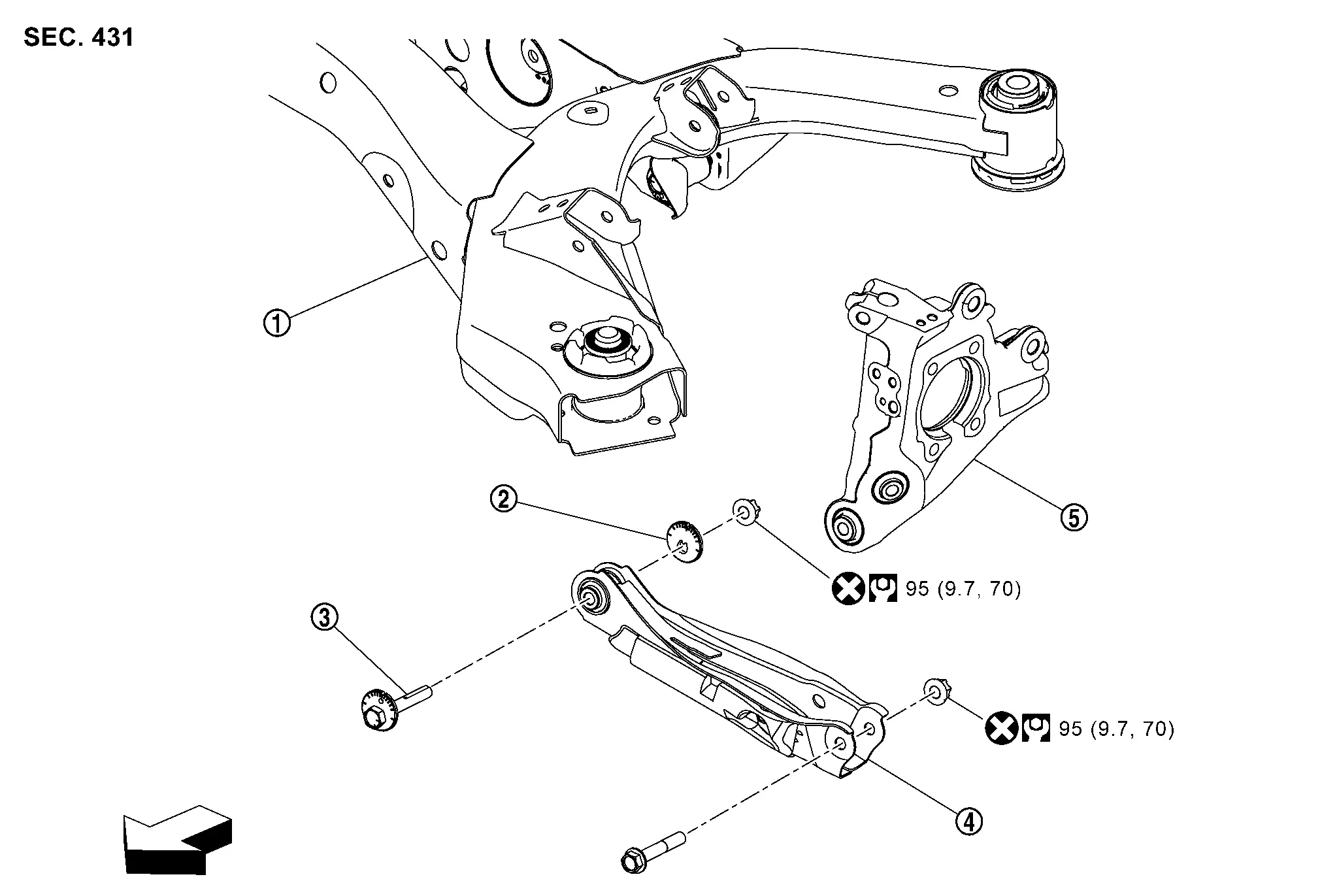

JAPAN PRODUCTION MODELS

1. Rear suspension member 2. Eccentric disk 3. Adjusting bolt
4. Front lower link 5. Axel housing — —
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

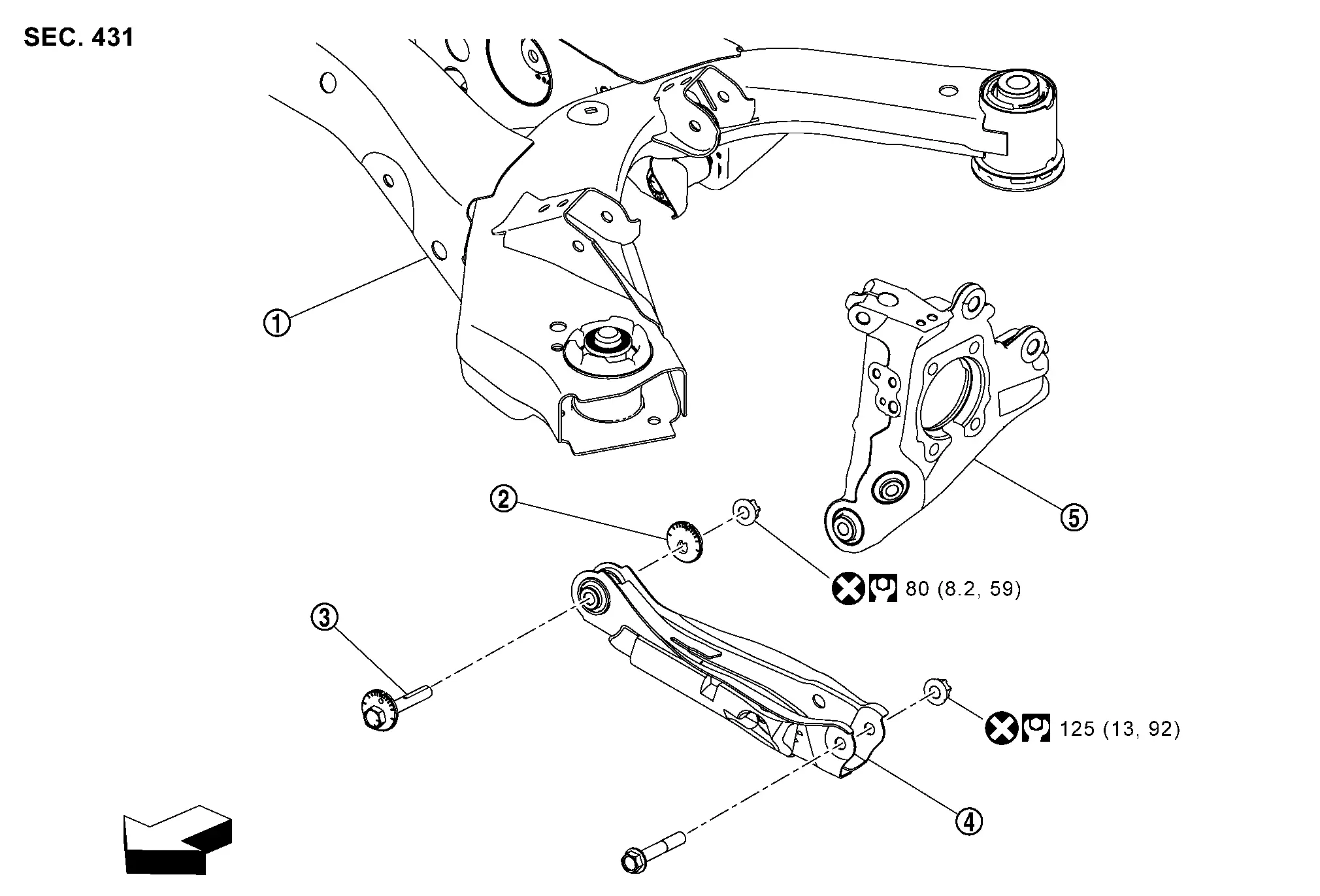

NORTH AMERICA PRODUCTION MODELS

1. Rear suspension member 2. Eccentric disk 3. Adjusting bolt
4. Front lower link 5. Axel housing — —
: Nissan Ariya Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every disassembly.

Removal and Installation

REMOVAL

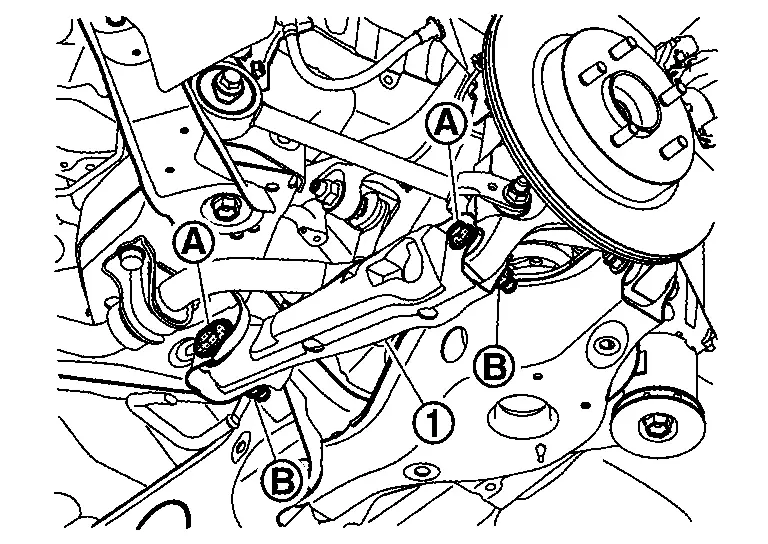

Remove front lower link mounting bolts and nuts .

Remove front lower link from the Nissan Ariya vehicle.

Perform inspection after removal. Refer to Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform final tightening of fixing parts at the vehicle installation position (rubber bushing), under unladen conditions with tires on level ground.

  • Perform inspection after installation. Refer to Inspection.

Inspection

INSPECTION AFTER REMOVAL

Check front lower link and bushing for deformation, crack, and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to Inspection.

    Removal and Installation. Radius Rod
    Exploded View JAPAN PRODUCTION MODELS Rear suspension member Radius rod Axle housing : Nissan Ariya Vehicle front : N·m (kg-m, ft-lb) : Always replace after every disassembly. ...
    Removal and Installation. Rear Lower Link
    Exploded View JAPAN PRODUCTION MODELS Rear suspension member Adjusting bolt Eccentric disk Rear lower link         : Nissan Ariya Vehicle front : N·m (kg-m,...
