Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Fender Sash Molding

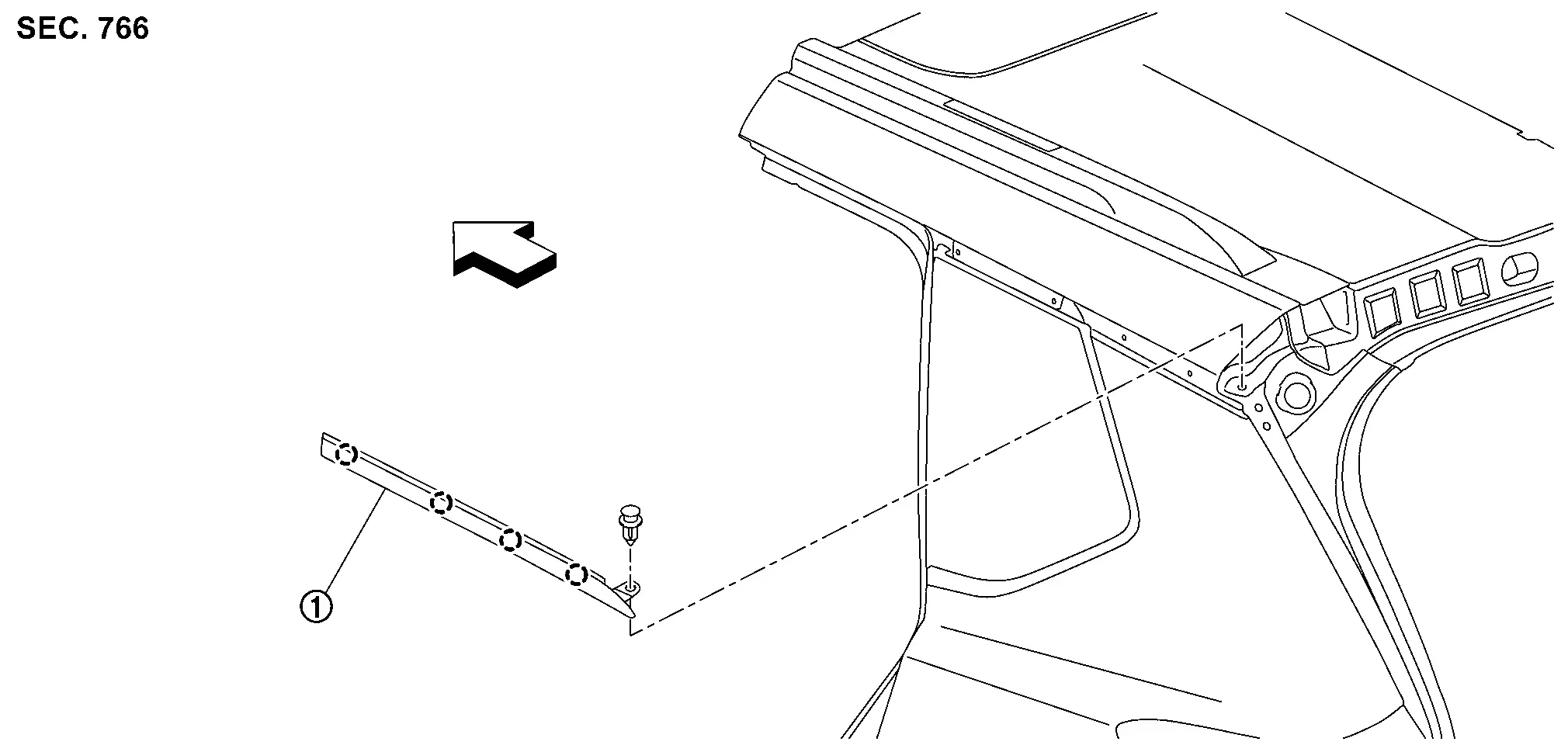

Exploded View
 |
Rear fender sash molding | ||||
 |
：Clip | ||||
 |
: Nissan Ariya Vehicle front | ||||
Removal and Installation
REMOVAL
Remove rear fender sash molding fixing clip
.

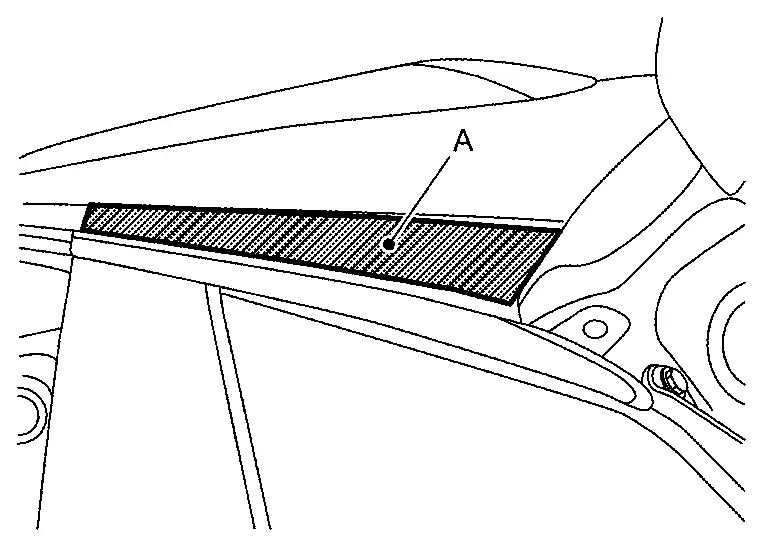

Apply protective tape (A) on the part to protect it from damage.

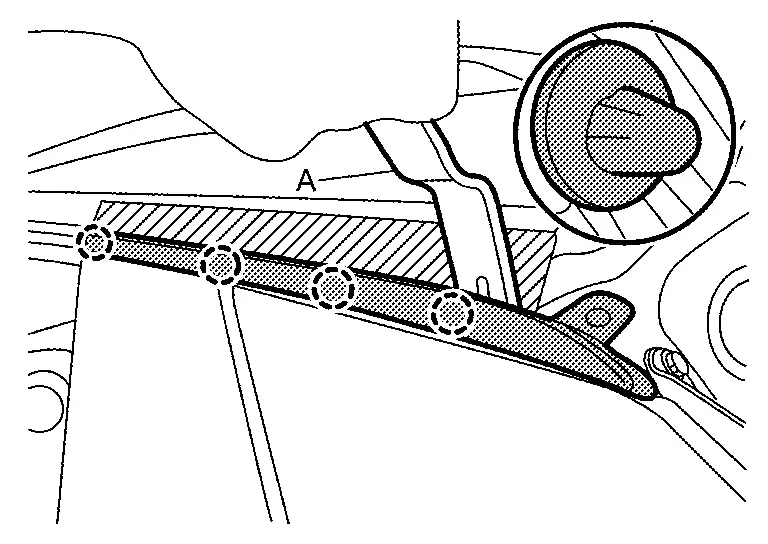

Disengage rear fender sash molding fixing clips using a remover tool (A), and then remove rear fender sash molding.
|
：Clip |
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in holes, and then press them it.
