Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Moonroof Switch Assembly
Removal and Installation
REMOVAL
Remove map lamp finisher. Removal and Installation

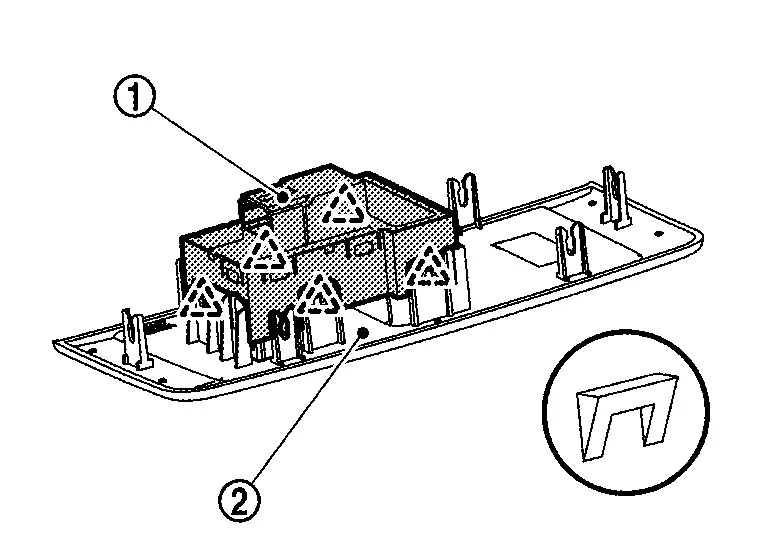

Disengage moonroof switch assembly
fixing pawls using a remover tool, and then remove moonroof switch assembly from map lamp finisher
.
 |
: Pawl |
INSTALLATION
Install in the reverse order of removal.
