Nissan Rogue (T33) 2021-Present Service Manual: Engine Cover

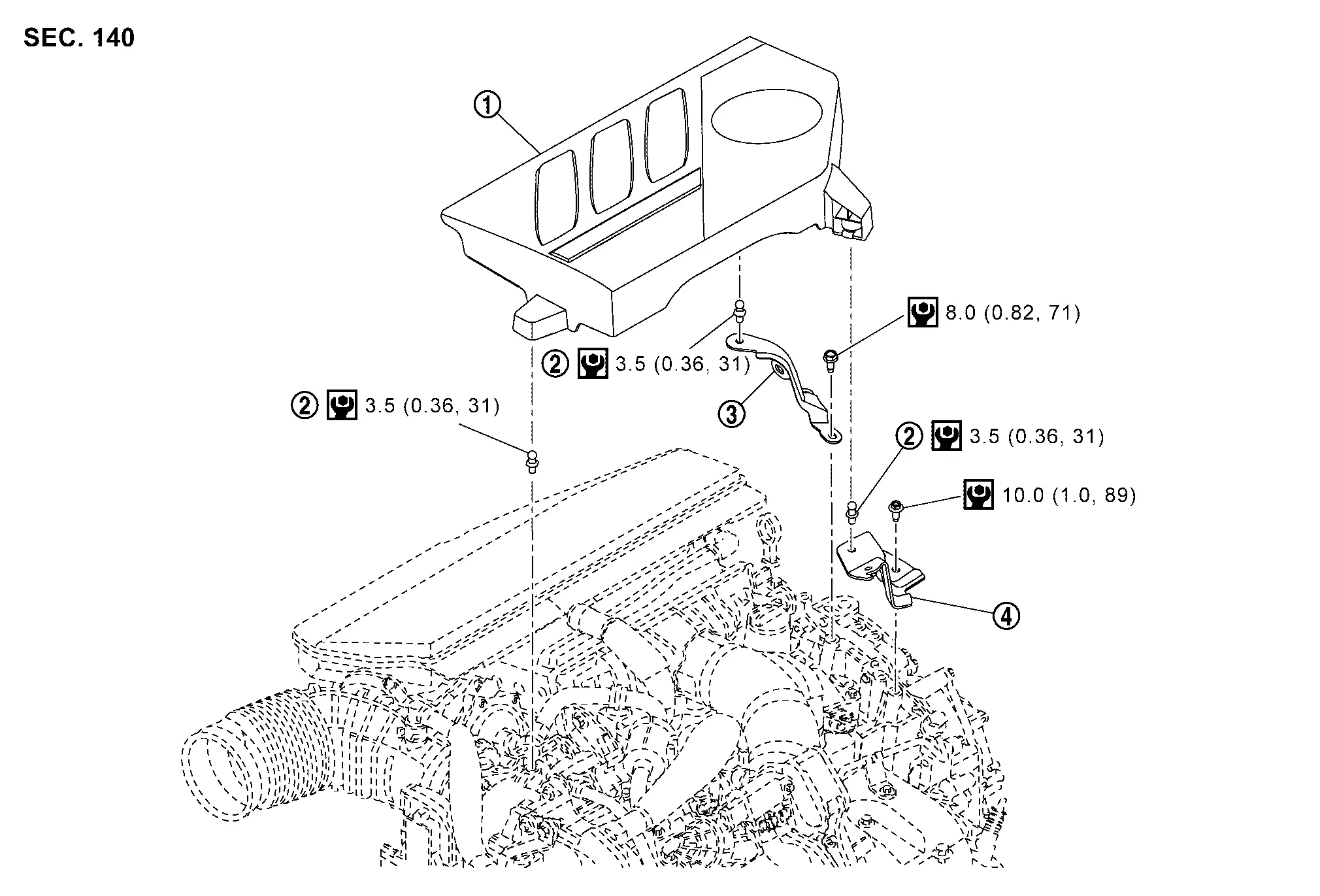

Exploded View

Engine cover Stud Bracket
Bracket
: N·m (kg-m, in-lb)

Removal and Installation

REMOVAL

Remove the engine cover by pulling it off in an upwards direction.

CAUTION:

Never damage or scratch engine cover when installing or removing.

INSTALLATION

Install in the reverse order of removal.
