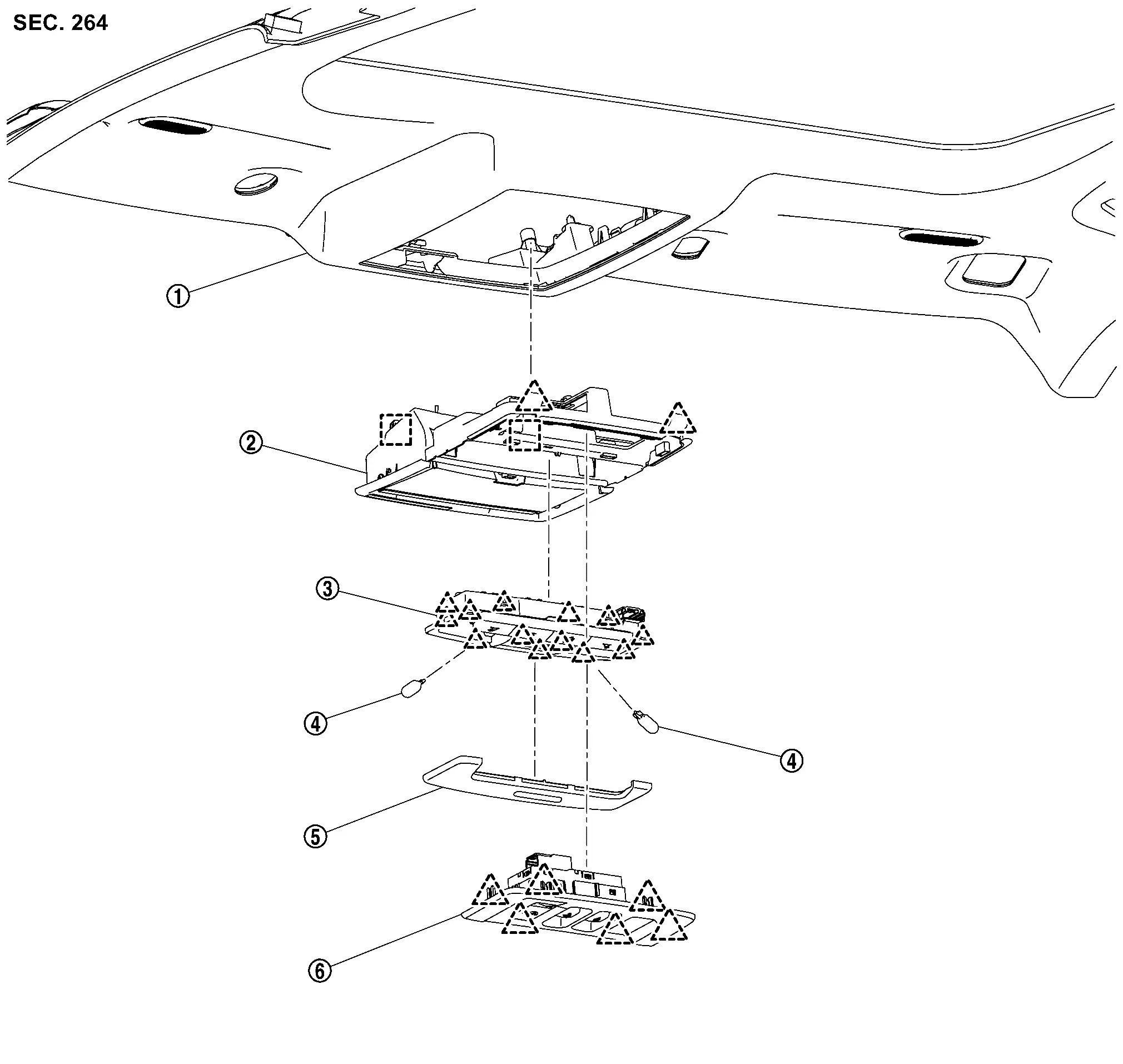

Exploded View

Headlining assembly Map lamp assembly Map lamp housing
Bulb Lens Map lamp finisher
: Pawl
: Metal clip

Removal and Installation

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

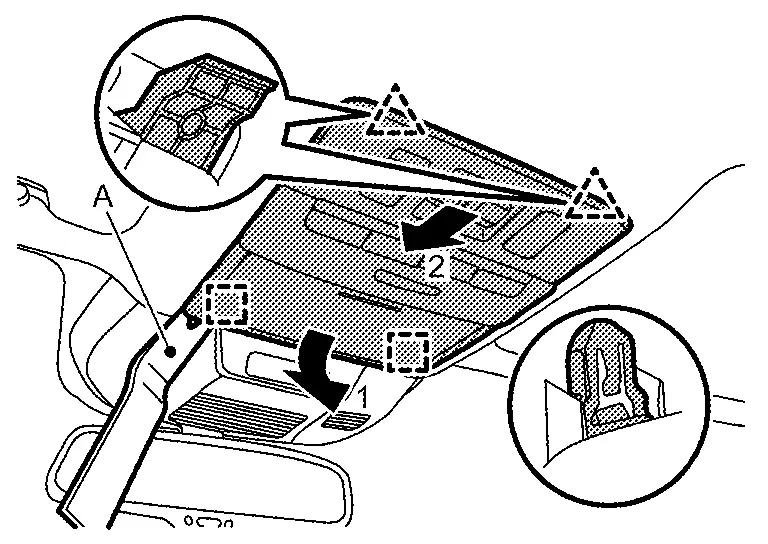

Disengage map lamp assembly fixing pawls and metal clips using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure.

: Pawl
: Metal clip

Disconnect harness connectors, and then remove map lamp assembly.

INSTALLATION

Install in the reverse order of removal.

Disassembly & Assembly

DISASSEMBLY

Remove map lamp assembly. Refer to Removal and Installation.

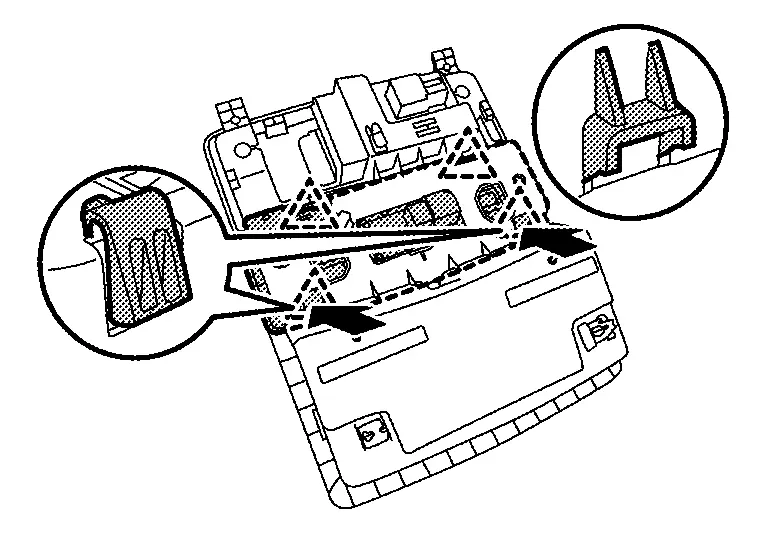

Disengage map lamp finisher fixing pawls using a remover tool (A), and then remove map lamp finisher.

: Pawl

CAUTION:

Use a remover tool wrapped in protective tape to prevent damage to the parts.

ASSEMBLY

Assemble in the reverse order of disassembly.

Replacement

MAP LAMP BULB

CAUTION:

  • Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

  • Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for preventing damage to the bulb.

  • The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of the bulb with bare hands for preventing burns.

  • Leaving the bulb removed from housing for a long period of time can deteriorate performance of the lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when replacing the bulb.

Remove map lamp assembly. Refer to Removal and Installation.

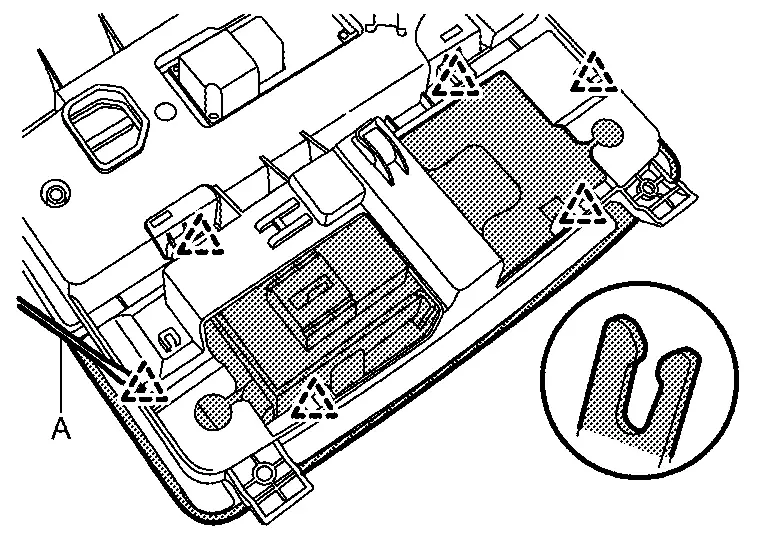

Disengage map lamp housing fixing pawls.

: Pawl

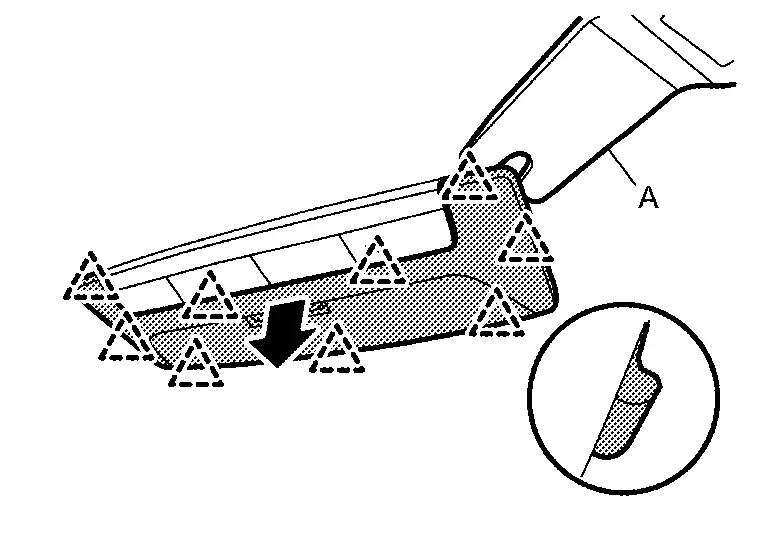

Disengage lens fixing pawls using a remover tool (A), and then remove lens from map lamp housing.

：Pawl

Remove bulbs.
