Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Luggage Room Lamp

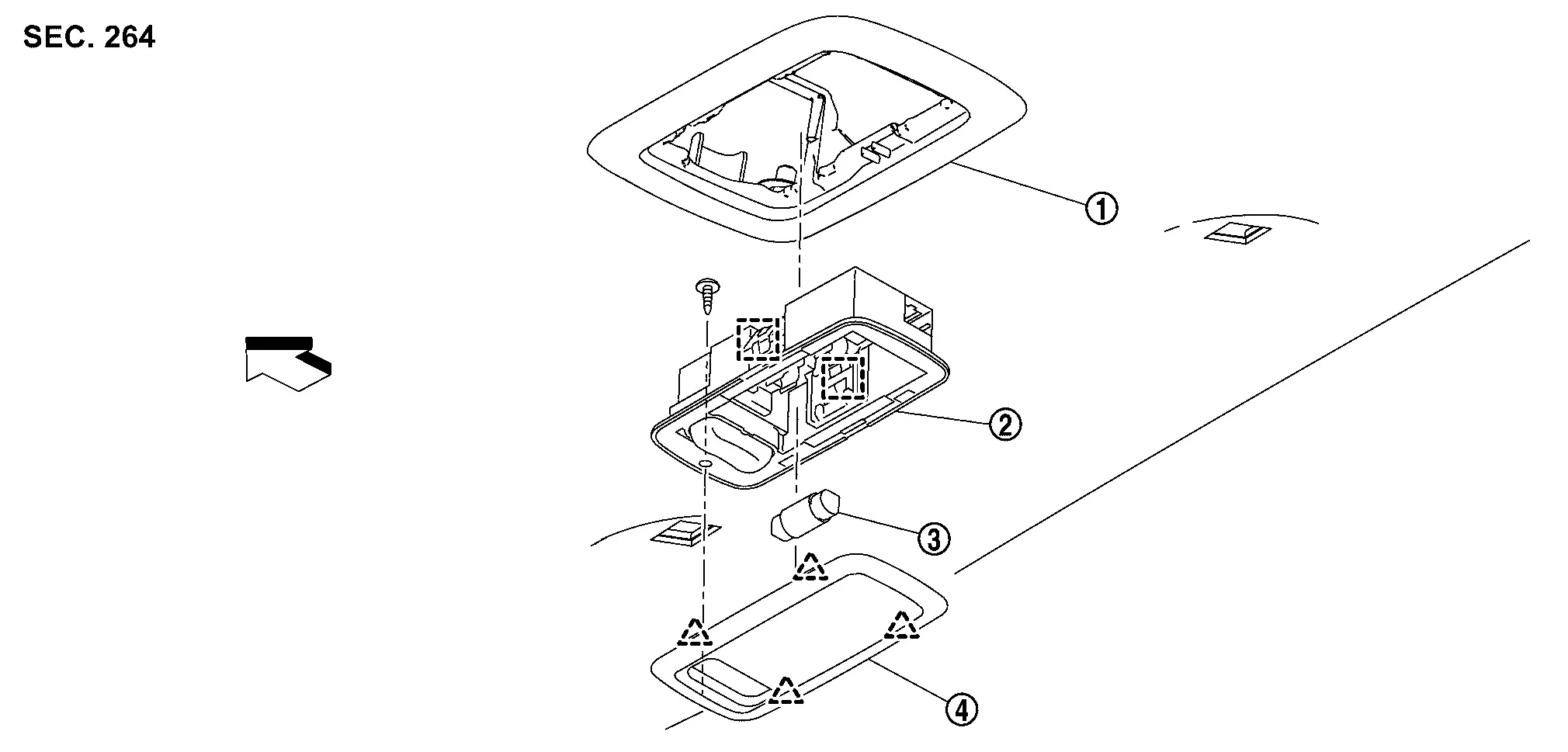

Exploded View

	Headlining assembly		Luggage room lamp housing		Bulb
	Lens
	: Pawl
	：Metal clip
	: Nissan Ariya Vehicle front

Removal and Installation

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

REMOVAL

Remove headlining assembly. Refer to Removal and Installation.

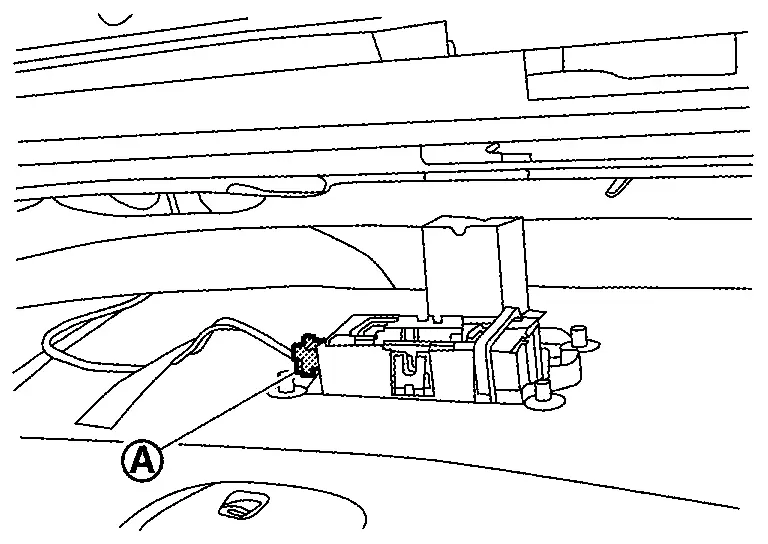

Disconnect harness connector .

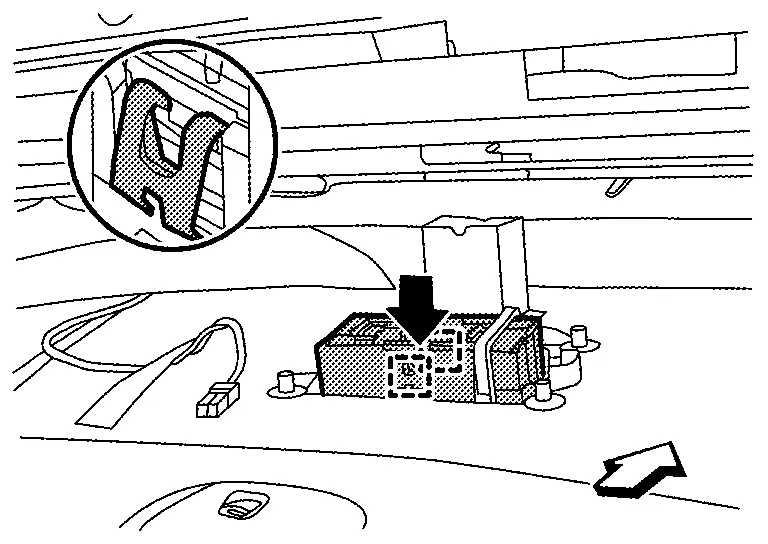

Disengage luggage room lamp fixing metal clips, and then remove luggage room lamp assembly.

	：Metal clip
	: Nissan Ariya Vehicle front

INSTALLATION

Install in the reverse order of removal.

Replacement

LUGGAGE ROOM LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for preventing damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when replacing the bulb.

Remove luggage room lamp housing. Refer to Removal and Installation.

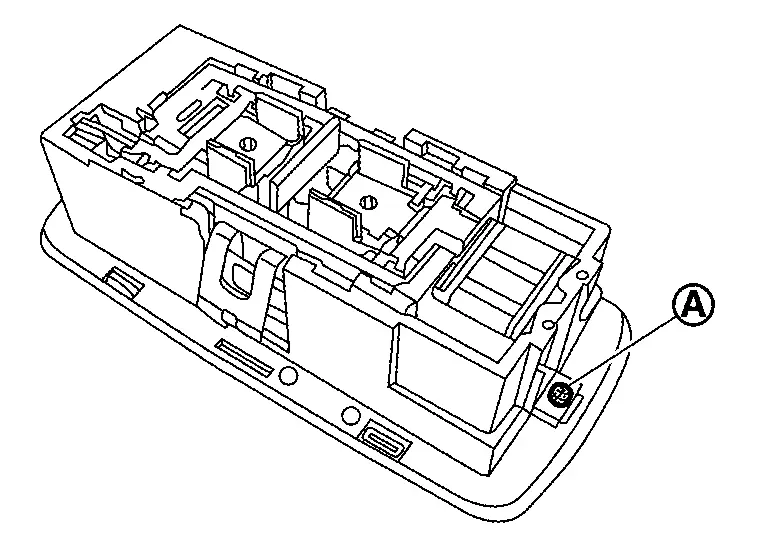

Remove lens fixing screw .

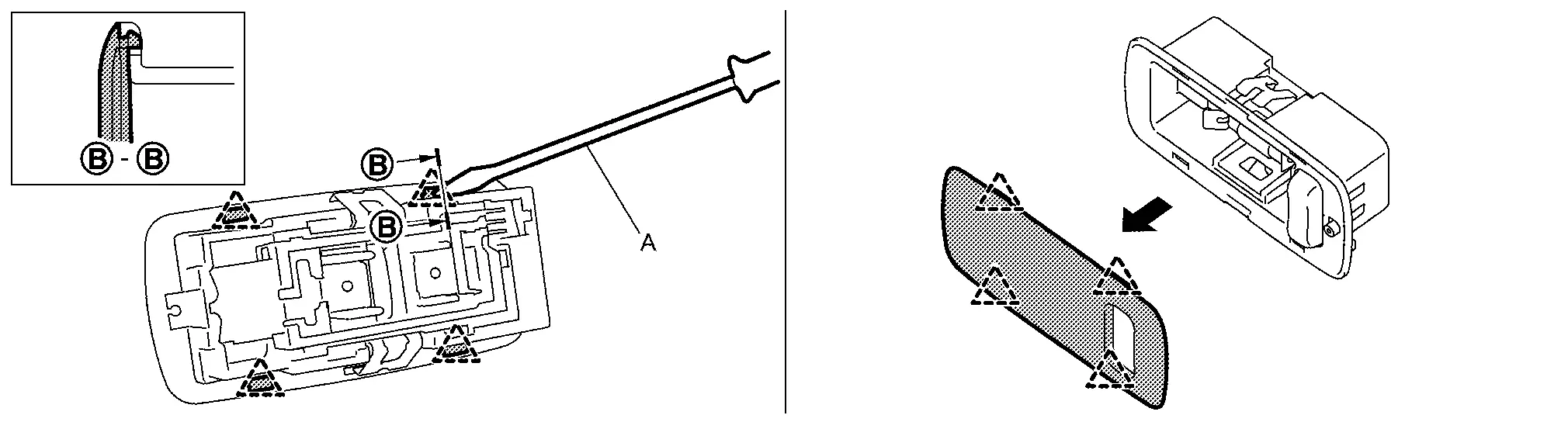

Disengage lens fixing pawls using a remover tool (A), and then remove lens from housing.

：Pawl

Remove bulb.
