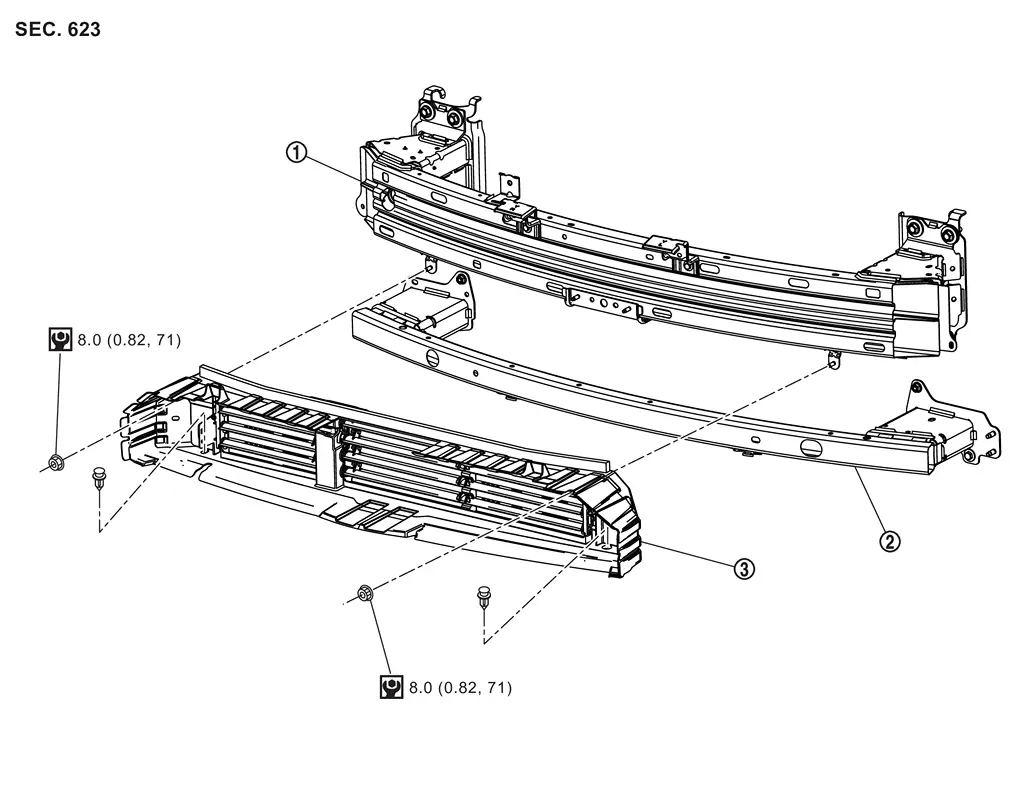

Exploded View

1. Front bumper reinforcement 2. Front bumper reinforcement lower 3. Active grille shutter
N·m (kg-m, in-lb)

Removal and Installation

REMOVAL

Remove front bumper fascia. Refer to Removal and Installation.

Remove ambient sensor. Refer to Removal and Installation.

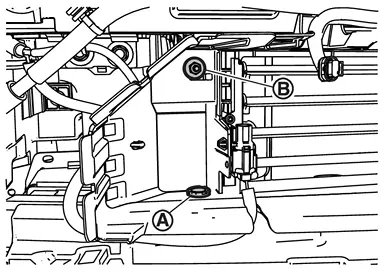

Remove active grille shutter fixing clip (A) and mounting nut (B).

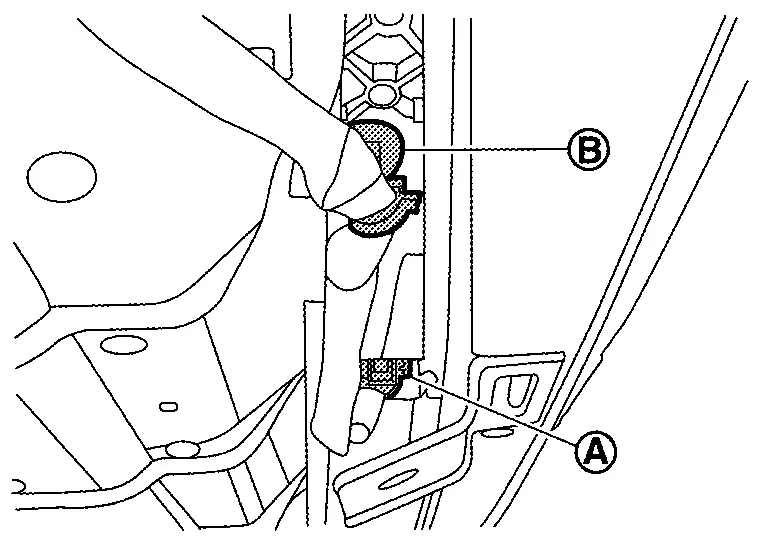

Disconnect active grille shutter harness connector (A) and disengage harness clip (B).

Remove active grille shutter.

INSTALLATION

Installation is in the reverse order of removal.
