Rear Differential Gear Oil

Inspection

OIL LEAKAGE

Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

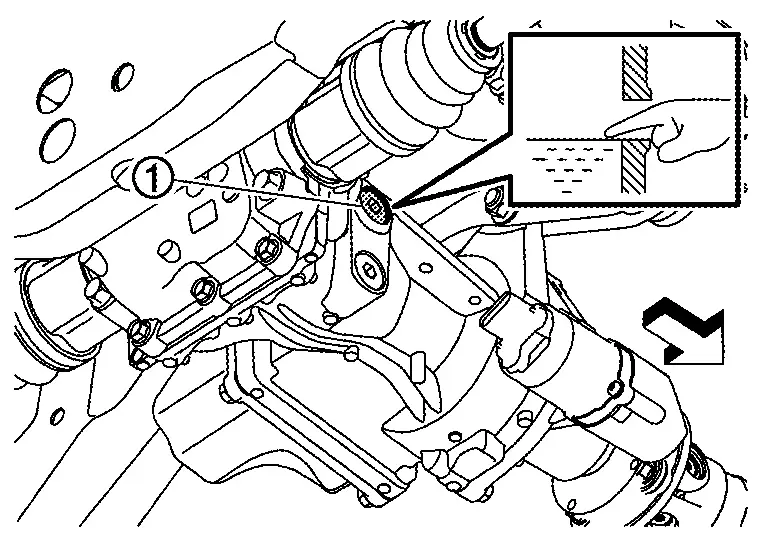

Check oil level from filler plug mounting hole as shown in the figure after removing filler plug (1) and gasket from final drive assembly.

: Nissan Ariya Vehicle front

CAUTION:

Place the ignition switch OFF while checking oil level.

  • Oil level should be level with bottom of filler plug mounting hole. Add gear oil if necessary. Refer to Refilling.

Set a gasket on filler plug and install it on final drive assembly.

CAUTION:

Never reuse gasket.

Tighten filler plug to the specified torque. Refer to Exploded View.

Draining

Place the ignition switch OFF.

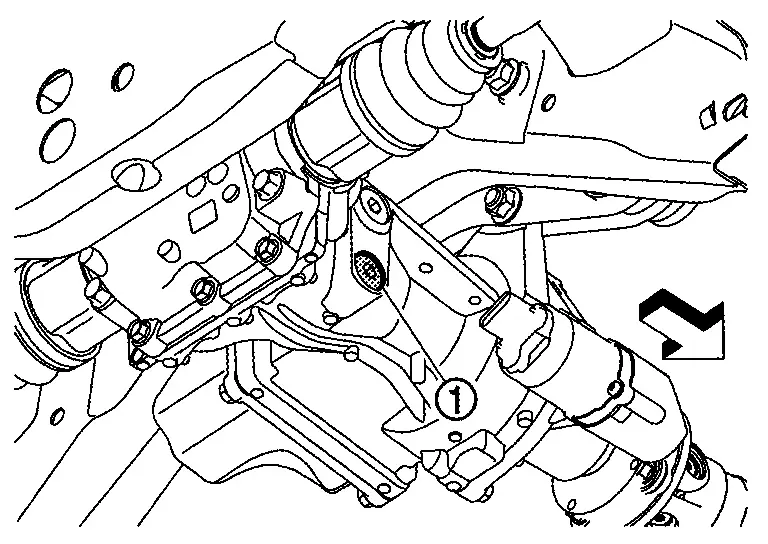

Remove drain plug (1) and gasket.

: Nissan Ariya Vehicle front

Drain gear oil.

NOTE:

Removing filler plug can make the work easier.

Set a gasket on drain plug and install it to final drive assembly.

CAUTION:

Never reuse gasket.

Tighten drain plug to the specified torque. Refer to Exploded View.

Refilling

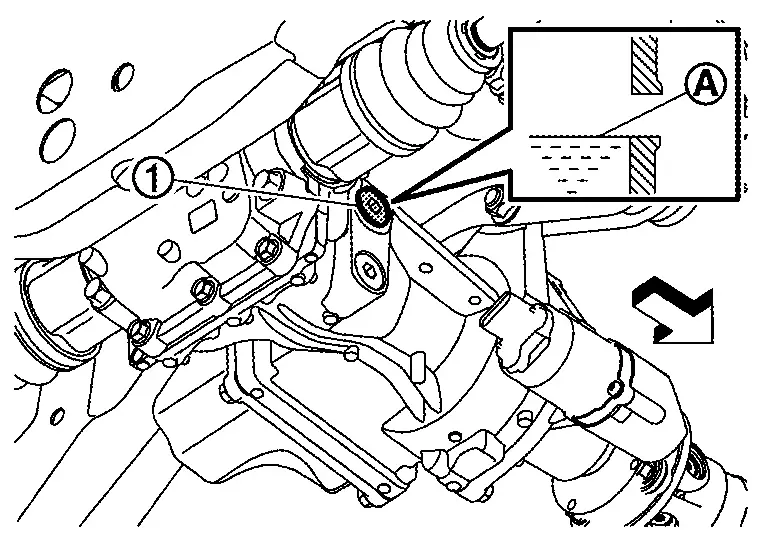

Remove filler plug and gasket. Then fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.

: Nissan Ariya Vehicle front

Recommended oil and capacity : Refer to Fluids and Lubricants.

Set a gasket on filler plug, and install it to final drive assembly.

CAUTION:

Never reuse gasket.

Tighten filler plug to the specified torque. Refer to Exploded View.
