Special Service Tool

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number

(TechMate No.)

Tool name 		  Description

(NI-39570)

Chassis ear

Locates the noise

(NI-50397)

Squeak and Rattle Kit

Repairs the cause of noise

(KV991 08700)

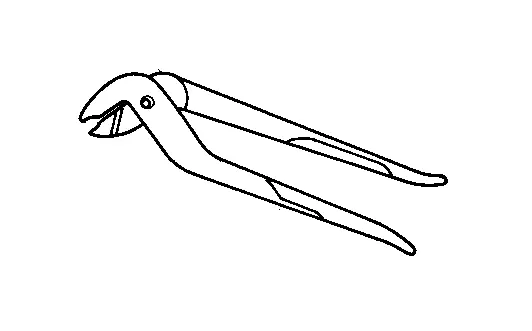

Hog ring pliers

Install the hog rings

Commercial Service Tool

Tool name Description
Engine ear

Locates the noise

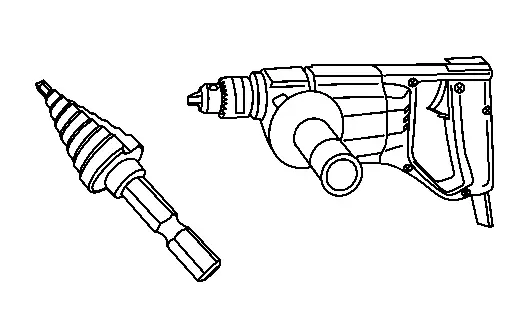

Drill

Remove the outside seat cushion finisher bracket mounting rivets

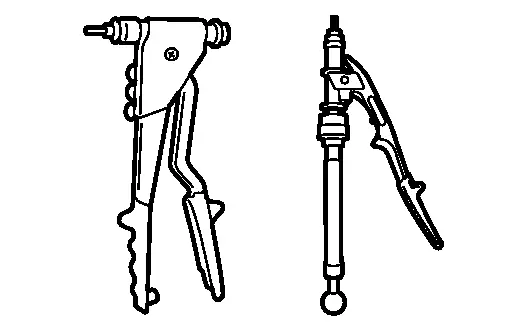

Hand nut rivet setter

install the outside seat cushion finisher bracket mounting rivets

Always Replace with New Parts

Never Reuse These Parts Part Code For additional information:
Front side air bag module nut — Exploded View
Front center air bag module nut — Exploded View
Seatback frame mounting bolt 87010A Exploded View
Seatback frame mounting bolt 87010AA Exploded View
Rivet — Exploded View
    Precaution. Precautions
    Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER...
    System Description. Component Parts
    Power Seat System Component Parts Location No. Component Function 1. Sliding motor LH (RH similar) Refer to Sliding Motor. 2. Power seat switch LH (RH similar) Refer to Power Se...
