Nissan Rogue (T33) 2021-Present Service Manual: Preparation

Nissan Rogue (T33) 2021-Present Service Manual / Steering :: Steering System / Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

 — 

(NI-44372)

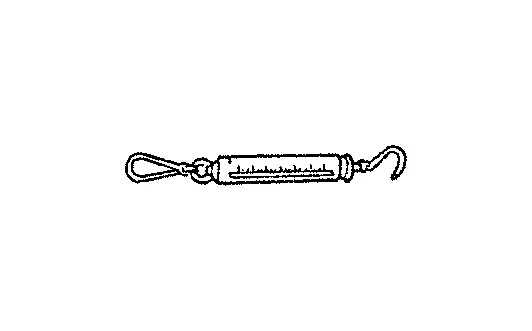

Pull gauge

Measuring steering wheel turning force and ball joint swinging force

KV40107300

(NI-51751)

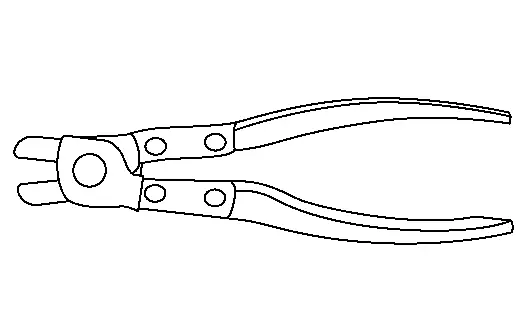

Boot band crimping tool

Installing boot bands (large diameter)

Commercial Service Tools

Tool name Description
Steering wheel puller

Removing steering wheel

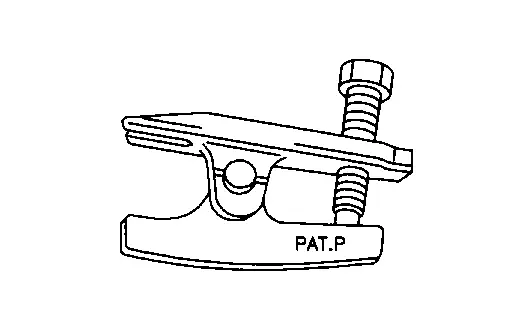

Ball joint remover

Remove steering outer socket

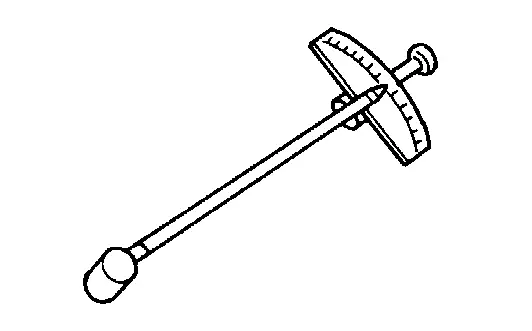

Preload gauge

Inspecting steering column rotating torque, pinion rotating torque and ball joint rotating torque
Power tool

Loosening nuts, screws and bolts

Sealant or/and Lubricant

Name Description
Dow corning 111 Inner socket

Always Replace with New Parts

Never Reuse These Parts Part # Prefix For additional information:
Bolt 48040A Exploded View
Bolt 48025A Exploded View
Clamp-boot 49203A Exploded View
Boot — Exploded View
Clamp-boot 49203B Exploded View
