Nissan Rogue (T33) 2021-Present Service Manual: Preparation

Nissan Rogue (T33) 2021-Present Service Manual / Brakes :: Brake System / Preparation

Commercial Service Tool

Tool name Description
Power tool

Loosening bolts and nuts

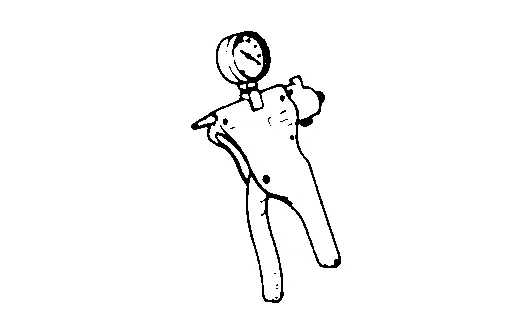

Handy vacuum pump

  • Air tight

  • Inspection of check valve

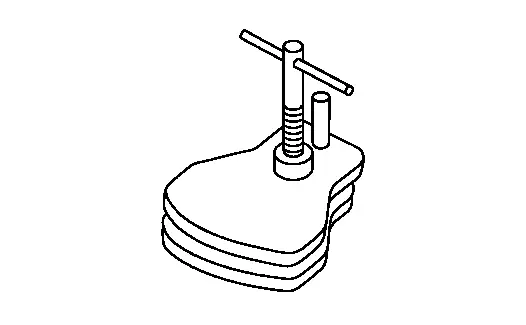

Brake caliper wrench

Return the piston

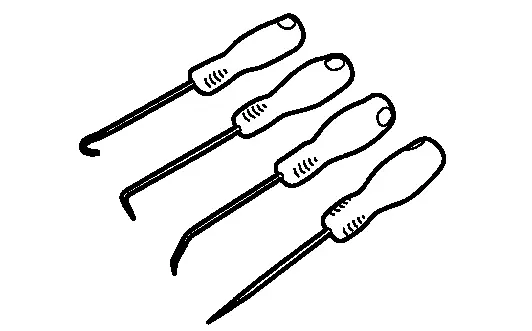

Pick tool

Removing piston seal and piston boot

Always Replace with New Parts

Always Replace with New Parts
Never Reuse These PartsPart CodeFor additional information:
Switch assy-stop lamp 25320 BRAKE PEDAL EXPLODED VIEW
Pin-clevis 46520A BRAKE PEDAL EXPLODED VIEW
Gasket-brake hose 46201D FRONT BRAKE PIPING EXPLODED VIEW
Gasket-brake hose 46211D REAR BRAKE PIPING EXPLODED VIEW
Seal kit-O ring 46015K BRAKE MASTER CYLINDER EXPLODED VIEW
Seal-reservoir tank 46045 BRAKE MASTER CYLINDER EXPLODED VIEW
Packing-brake booster 47212 BRAKE BOOSTER EXPLODED VIEW
Piston seal - FRONT BRAKE CALIPER ASSEMBLY EXPLODED VIEW
Piston boot - FRONT BRAKE CALIPER ASSEMBLY EXPLODED VIEW

Lubricant or/and Sealant

Name Description Note
Multi-purpose grease Clevis pin of brake pedal —
Silicone grease

  • Master cylinder assembly

  • Brake booster

 —
MOLYKOTE® AS880N or siliconebased grease Front brake Molykote is a registered of Dow Corning Corporation
Rubber grease

  • Front brake

  • Rear brake

 —
