Nissan Rogue (T33) 2021-Present Service Manual: Precaution :: Precautions

PRECAUTIONS FOR SUPPLEMENTAL RESTRAINT SYSTEM (SRS) AIR BAG AND SEAT BELT PRE-TENSIONER : Precautions

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

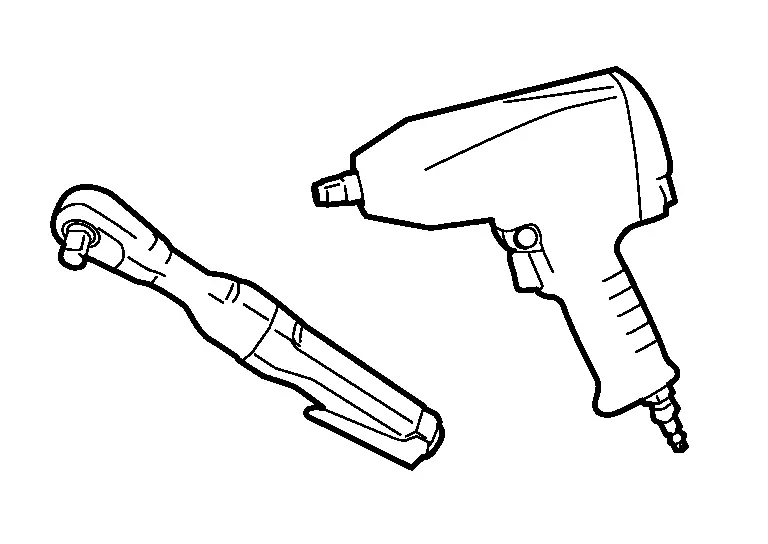

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

PRECAUTIONS FOR PROCEDURE WITHOUT COWL TOP COVER : Precautions

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc to prevent damage to windshield.

PRECAUTIONS FOR REMOVING BATTERY TERMINAL : Precautions

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the Intelligent Key or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even after the ignition switch is in the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, place the ignition switch in the OFF position before disconnecting the 12V battery terminal, observing “How to disconnect 12V battery terminal” described below.



  NOTE:

  Some ECUs operate for a certain fixed time even after ignition switch is in the OFF position and ignition power supply is stopped. If the battery terminal is disconnected before ECU stops, accidental DTC detection or ECU data damage may occur.

• For Nissan Ariya vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before placing the ignition switch in the ON position.

  NOTE:

  If the ignition switch is in the ON position with any one of the terminals of main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

  NOTE:

  The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.

1. Open the hood.

2. Place the ignition switch in the ON position.

3. Place the ignition switch in the OFF position with the driver side door opened.

4. Get out of the Nissan Ariya vehicle and close the driver side door.

5. Wait at least 3 minutes.

   CAUTION:

   While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the Auto ACC function.

6. Remove 12V battery terminal.

   CAUTION:

   After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Description

Observe the following precautions to ensure safe and proper servicing. These precautions are not described in each individual section.

General Precautions

• Do not operate the engine for an extended period of time without proper exhaust ventilation.



  Keep the work area well ventilated and free of any inflammable materials. Special care should be taken when handling any inflammable or poisonous materials, such as gasoline, refrigerant gas, etc. When working in a pit or other enclosed area, be sure to properly ventilate the area before working with hazardous materials.

  Do not smoke while working on the Nissan Ariya vehicle.

• Before jacking up the vehicle, apply wheel chocks or other tire blocks to the wheels to prevent the Nissan Ariya vehicle from moving. After jacking up the vehicle, support the vehicle weight with safety stands at the points designated for proper lifting before working on the Nissan Ariya vehicle.



  These operations should be done on a level surface.

• When removing a heavy component such as the engine or transaxle/transmission, be careful not to lose your balance and drop them. Also, do not allow them to strike adjacent parts, especially the brake tubes and master cylinder.

• Before starting repairs which do not require battery power:



  Ignition switch OFF.

  Disconnect the negative battery terminal.

• If the battery terminals are disconnected, recorded memory of radio and each control unit is erased.

• For Nissan Ariya vehicles with two batteries, be sure to remove both batteries when instructed to remove 12V battery in the service manual. If specified as main battery or sub battery, then do as instructed.

• To prevent serious burns:



  Avoid contact with hot metal parts.

  Do not remove the radiator cap when the engine is hot.

• Dispose of drained oil or the solvent used for cleaning parts in an appropriate manner.

• Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.

  Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.

• Clean all disassembled parts in the designated liquid or solvent prior to inspection or assembly.

• Replace oil seals, gaskets, packings, O-rings, locking washers, cotter pins, self-locking nuts, etc. with new ones.

• Replace inner and outer races of tapered roller bearings and needle bearings as a set.

• Arrange the disassembled parts in accordance with their assembled locations and sequence.

• Do not touch the terminals of electrical components which use microcomputers (such as ECM).

  Static electricity may damage internal electronic components.

• After disconnecting vacuum or air hoses, attach a tag to indicate the proper connection.

• Use only the fluids and lubricants specified in this manual.

• Use approved bonding agent, sealants or their equivalents when required.

• Use hand tools, power tools (disassembly only) and recommended special tools where specified for safe and efficient service repairs.



• When repairing the fuel, oil, water, vacuum or exhaust systems, check all affected lines for leakage.

• Before servicing the Nissan Ariya vehicle:



  Protect fenders, upholstery and carpeting with appropriate covers.

  Take caution that keys, buckles or buttons do not scratch paint.

WARNING:

To prevent ECM from storing the diagnostic trouble codes, never carelessly disconnect the harness connectors which are related to the engine control system and TCM (transmission control module) system. The connectors should be disconnected only when working according to the WORK FLOW of TROUBLE DIAGNOSES in EC and TM sections.

Three Way Catalyst

If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To prevent this, follow the instructions.

• Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.

• When checking for ignition spark or measuring engine compression, make tests quickly and only when necessary.

• Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to the catalyst.

Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three way catalyst.

Multiport Fuel Injection System or Engine Control System

• Before connecting or disconnecting any harness connector for the multiport fuel injection system or ECM:



  Ignition switch OFF.

  Disconnect negative battery terminal.

  Otherwise, there may be damage to ECM.

• Before disconnecting pressurized fuel line from fuel pump to injectors, be sure to release fuel pressure.

• Be careful not to jar components such as ECM and mass air flow sensor.

Hoses

HOSE REMOVAL AND INSTALLATION

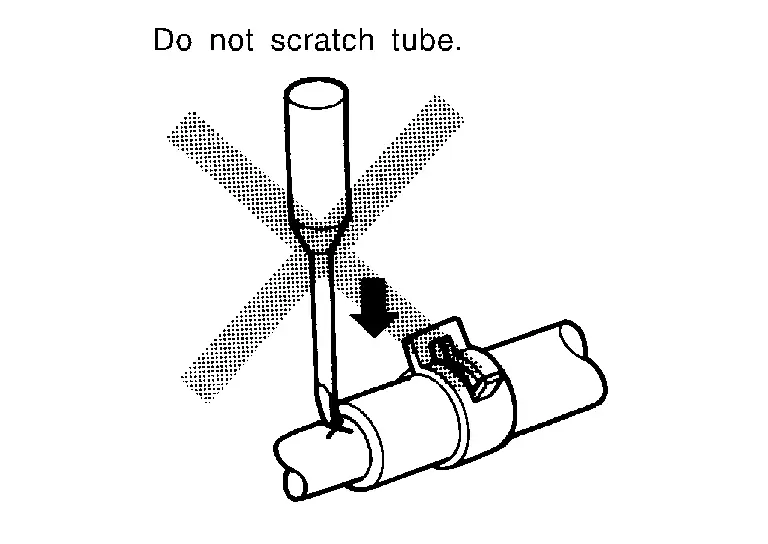

• To prevent damage to rubber hose, do not pry off rubber hose with tapered tool or screwdriver.

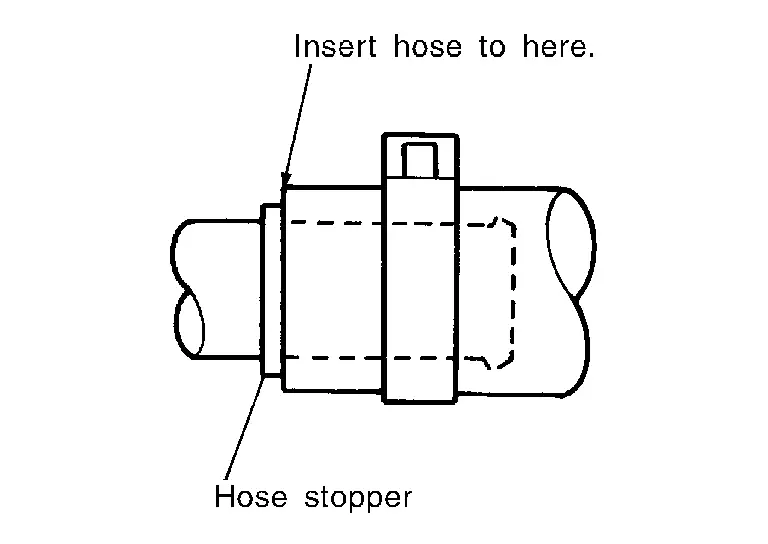

• To reinstall the rubber hose securely, check that hose insertion length and orientation is correct. (If tube is equipped with hose stopper, insert rubber hose into tube until it butts up against hose stopper.)



HOSE CLAMPING

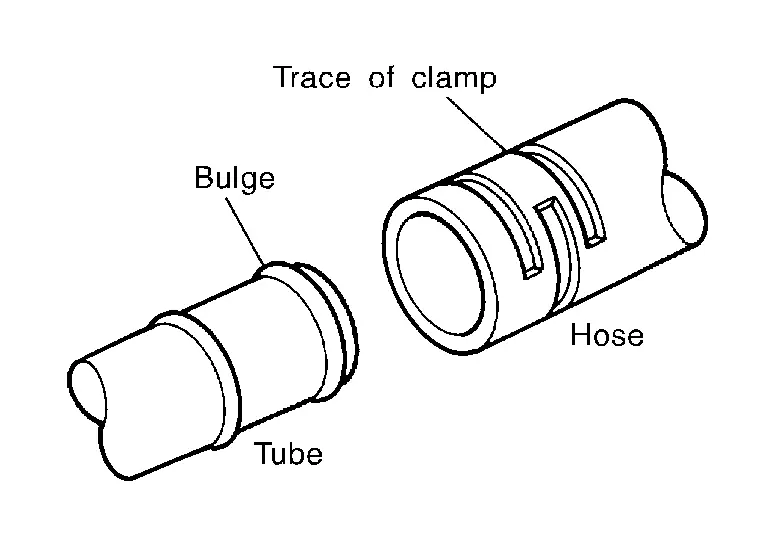

• If old rubber hose is re-used, install hose clamp in its original position (at the indentation where the old clamp was). If there is a trace of tube bulging left on the old rubber hose, align rubber hose at that position.



• Discard old clamps; replace with new ones.

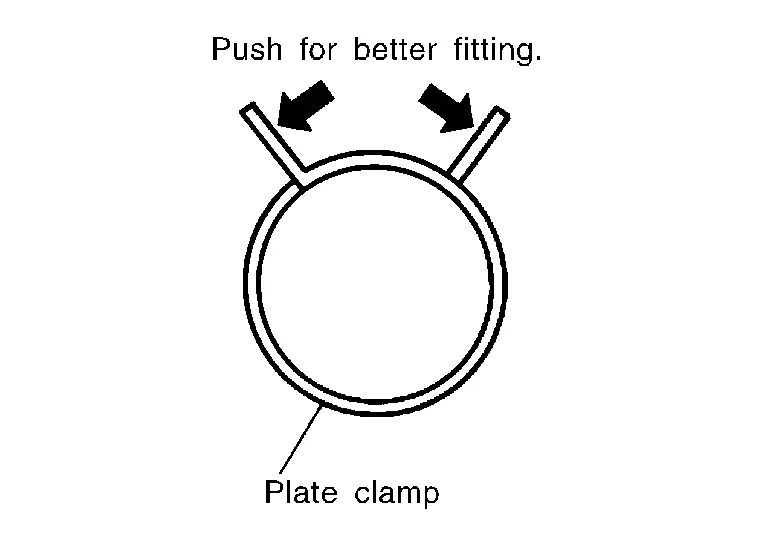

• After installing plate clamps, apply force to them in the direction of the arrow, tightening rubber hose equally all around.



Engine Oils

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact with used oil.

If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

• Avoid prolonged and repeated contact with oils, particularly used engine oils.

• Wear protective clothing, including impervious gloves where practicable.

• Do not put oily rags in pockets.

• Avoid contaminating clothes, particularly underpants, with oil.

• Heavily soiled clothing and oil-impregnated footwear should not be worn. Overalls must be cleaned regularly.

• First aid treatment should be obtained immediately for open cuts and wounds.

• Use barrier creams, applying them before each work period, to help the removal of oil from the skin.

• Wash with soap and water to ensure all oil is removed (skin cleansers and nail brushes will help). Preparations containing lanolin replace the natural skin oils which have been removed.

• Do not use gasoline, kerosene, diesel fuel, gas oil, thinners or solvents for cleaning skin.

• If skin disorders develop, obtain medical advice without delay.

• Where practical, degrease components prior to handling.

• Where there is a risk of eye contact, eye protection should be worn, for example, chemical goggles or face shields; in addition an eye wash facility should be provided.

ENVIRONMENTAL PROTECTION PRECAUTIONS

Dispose of used oil and used oil filters through authorized waste disposal contractors to licensed waste disposal sites, or to the waste oil reclamation trade. If in doubt, contact the local authority for advice on disposal facilities.

It is illegal to pour used oil on to the ground, down sewers or drains, or into water sources.

The regulations concerning pollution vary between regions.

Air Conditioning

Use an approved refrigerant recovery unit any time the air conditioning system must be discharged. Refer to HA section “REFRIGERATION SYSTEM” for specific instructions.

Fuel

Use unleaded regular gasoline with an octane rating of at last 87 AKI (Anti-Knock Index) number (Research octane number 91).

CAUTION:

• Using a fuel other than that specified could adversely affect the\ emission control system, and may also affect warranty coverage.

• Under no circumstances should a leaded gasoline be used, because this will damage the three-way catalyst.

• Do not use a fuel containing more than 15% ethanol in your Nissan Ariya vehicle. Your vehicle is not designed to run on a fuel containing more than 15% ethanol. Using a fuel containing more than 15% ethanol in a Nissan Ariya vehicle not specifically designed for a fuel containing more than 15% ethanol can adversely affect the emission control devices and systems of the Nissan Ariya vehicle. Damage caused by such fuel is not covered by the NISSAN new vehicle limited warranty.

• Do not use fuel that contains the octane booster methylcyclopentadienyl manganese tricarbonyl (MMT). Using fuel containing MMT may adversely affect Nissan Ariya vehicle performance and vehicle emissions. Not all fuel dispensers are labeled to indicate MMT content, so you may have to consult your gasoline retailer for more details. Note that Federal and California laws prohibit the use of MMT in reformulated gasoline.

• U.S. government regulations require ethanol dispensing pumps to be identified by a small, square, orange and black label with the common abbreviation or the appropriate percentage for that region.
