Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Overview

The ProPILOT Assist suite available on the Nissan Rogue is a hands-on driver-assistance technology designed primarily for limited-access highways. Its purpose is to help the vehicle stay centered in its lane and maintain a preset distance from the vehicle ahead. Depending on configuration, the system on the Nissan Rogue is available in three levels with the following capabilities:

ProPILOT Assist:

  • Intelligent Cruise Control
  • Steering Assist

ProPILOT Assist 1.1 (if equipped):

  • Speed Adjust by Route
  • Speed Limit Assist
  • Extended Stop function

ProPILOT Assist 2.1 (if equipped):

  • HD-map-enhanced Steering Assist
  • Lane Change Assist
  • Passing Assist

NOTE:

A subscription is required to enable ProPILOT Assist 2.1 features on the Nissan Rogue.

To determine if your Nissan Rogue is equipped:

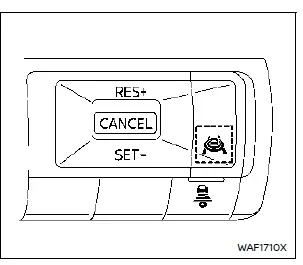

Vehicles with ProPILOT Assist or ProPILOT Assist 1.1 have the steering wheel shown below and a single roof-mounted antenna.

Nissan Rogue. ProPILOT Assist Systems

NOTE:

ProPILOT Assist 1.1 is included only on Nissan Rogue models equipped with the in-vehicle Map Locator system.

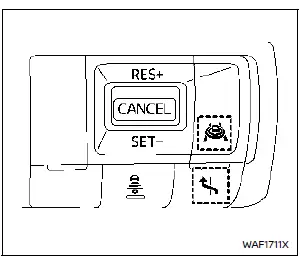

Vehicles with ProPILOT Assist 2.1 have a similar steering wheel but feature two roof-mounted antennas, with the left unit acting as the GNSS antenna.

Nissan Rogue. ProPILOT Assist Systems

NOTE:

Knowing which version your Nissan Rogue has is essential, as parts of the system description may not apply depending on equipment level.

WARNING

The following warnings apply to the full ProPILOT Assist suite — including ProPILOT Assist, ProPILOT Assist 1.1, ProPILOT Assist 2.1, Intelligent Cruise Control, Steering Assist, Lane Change Assist, Passing Assist, Driver Monitoring System, and conventional cruise control — collectively referred to as “ProPILOT Assist systems.”

  • Improper use of any ProPILOT Assist system on the Nissan Rogue may lead to a serious accident causing injury or death.
  • Always remain attentive and read the Owner’s Manual before relying on these systems. They cannot prevent collisions or react to emergencies for you.
  • Use ProPILOT Assist only under appropriate traffic and road conditions.
  • The systems are intended exclusively for highway use, not for city or rural driving.
  • ProPILOT Assist does not make the Nissan Rogue a self-driving vehicle. It provides assistance only within the limits described in this manual.
  • The driver must remain responsible for safe driving at all times. These systems do not replace attentive control of the vehicle.
  • ProPILOT Assist systems are driver aids, not collision-avoidance systems. Never rely solely on them to detect hazards.
  • The systems have operational limitations. Weather, road conditions, visibility, or traffic situations can all reduce performance.
  • Never unfasten your seat belt when using ProPILOT Assist — doing so immediately cancels system operation.
  • Always obey posted speed limits and do not set the cruise speed beyond them.
  • Pressing the accelerator overrides automatic braking and distance control. The driver must manage speed manually to maintain a safe following distance.
  • Steering Assist helps keep the Nissan Rogue centered in its lane, but it will not steer around obstacles or avoid vehicles encroaching from the side.
  • Lane Change Assist and Passing Assist only assist movement toward a new lane; they do not prevent collisions. Keep your hands on the steering wheel.
  • Conventional cruise control does not detect vehicles ahead. No warning chime will sound if following distance becomes unsafe.
  • Never use conventional cruise control where maintaining a constant speed is unsafe — such as in heavy traffic, winding roads, steep hills, slippery surfaces, or strong winds.
    ProPILOT Assist Systems
    ProPILOT Assist Systems Overview
    Each ProPILOT Assist function on the Nissan Rogue is designed to support the driver in a specific way while driving, adding comfort and helping with routine tasks on the road. B...
