Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: MOD system operation (models with 3D view)
The Moving Object Detection (MOD) system will activate automatically when any of the following conditions are met:
- Shift lever is placed in the R (Reverse) position.
- The CAMERA button is pressed to activate the Intelligent Around View Monitor.
- Vehicle speed decreases below 5 MPH (8 km/h).
The MOD system functions under these conditions when the camera view is displayed:
- With the shift lever in P (Park) or N (Neutral) and the vehicle stopped, the system detects movement in the bird’s-eye view.
The MOD system will not operate if any door is open. If the outside mirrors are folded, system accuracy may be reduced. - With the shift lever in D (Drive) and vehicle speed below 5 MPH (8 km/h), MOD detects movement in the front view, front-wide view, or Invisible Hood View (if equipped).
- With the shift lever in R (Reverse) and speed below 5 MPH (8 km/h), MOD detects movement in the rear view or rear-wide view. It will not operate if the liftgate is open.
The MOD system does not detect moving objects in the front-side view or the 3D view. No MOD icon is shown in these views.
When the MOD system detects movement around the vehicle, an orange frame appears on the corresponding camera view and a single chime sounds. If movement continues, the orange frame stays visible.
NOTE:
While the RCTA (Rear Cross Traffic Alert) chime is sounding, the MOD system will not chime.

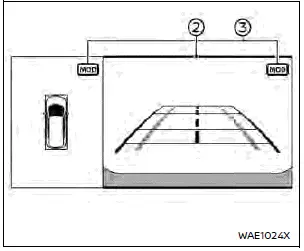

Front and bird’s-eye views
Rear and bird’s-eye views
Rear and front-side views
Front-wide view (example)
Rear-wide view
In the bird’s-eye view, the orange frame 1 appears on the camera image where movement is detected (front, rear, left, right).
The orange frame 2 appears in the front view, rear view, front-wide view, Invisible Hood View (if equipped) and rear-wide view.
A green MOD icon 3 indicates the system is active in that view.
A gray MOD icon 3 indicates the system is available but not actively detecting movement.
If MOD is turned OFF, no MOD icon is displayed.
Turning MOD on and off
The MOD system can be enabled or disabled through the vehicle information display menu.
Basic information
CAMERA button
WARNING
Failure to follow the warnings and instructions for proper use of the Moving Object Detection (MOD) system could result in serious injury or death.
The MOD system is not ...
MOD system limitations
WARNING
Failure to follow system limitations may result in serious injury or death.
Do not use the MOD system while towing a trailer; it may not operate correctly.
Loud ambient noise (radio volume ...
