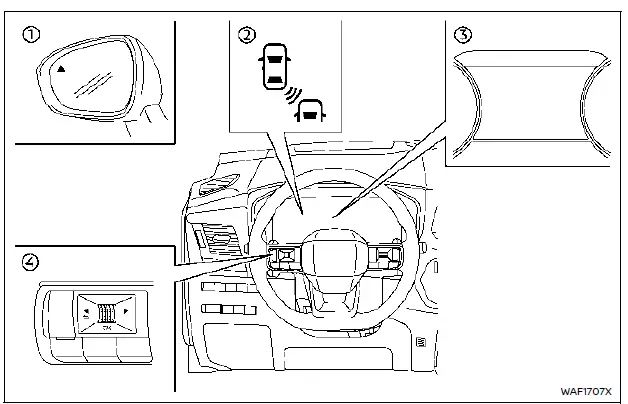

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: BSW system operation
- Side indicator light
- BSW indicator on the display
- Vehicle information display
- Steering-wheel-mounted controls
The BSW system becomes active above approximately 20 MPH (32 km/h). When a vehicle enters the detection zone, the side indicator light turns on.
If the driver activates the turn signal, the system warns with two chimes and flashes both the side indicator light and the BSW display indicator. Flashing continues until the vehicle exits the detection zone.
The side indicator briefly lights up at ignition ON as a system check. Its brightness adjusts automatically depending on ambient lighting conditions.
Basic information
WARNING
Failure to follow the warnings and instructions for proper use of the Blind Spot Warning system could result in serious injury or death.
The BSW system is not a substitute for safe driving ...
How to enable/disable the BSW system
Steering-wheel controls
Vehicle information display
Steps:
1. Press the
button until “Settings” appears, then press the scroll dial. Select “Driver Assistance” and confirm.
2. Sel ...
