Outside mirrors

The outside mirror remote control will operate only when the ignition switch is in the ACC or ON position.

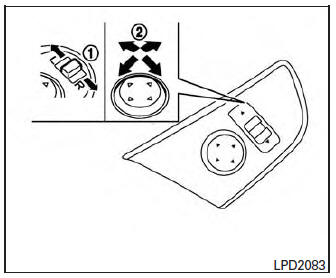

Move the small switch 1 to select the right or left mirror. Adjust each mirror to the desired position using the large switch 2 .

WARNING

Objects viewed in the outside mirror on the passenger side are closer than they appear. Be careful when moving to the right. Using only this mirror could cause an accident. Use the inside mirror or glance over your shoulder to properly judge distances to other objects.
Do not adjust the mirrors while driving.
You could lose control of your vehicle and cause an accident.

Manual folding outside mirrors

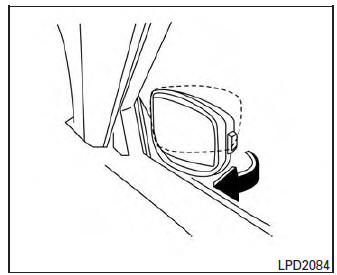

Pull the outside mirror toward the door to fold it.

Heated mirrors (if so equipped)

Some outside mirrors can be heated to defrost, defog, or de-ice for improved visibility. For additional information, refer to “Rear window and outside mirror (if so equipped) defroster switch” in the “Instruments and controls” section of this manual.
