Automatic Anti-glare rearview mirror
(if so equipped)
The inside mirror is designed so that it automatically dims during night time conditions and according to the intensity of the headlights of the vehicle following you. The automatic anti-glare feature is activated when the ignition switch is in the ON position.

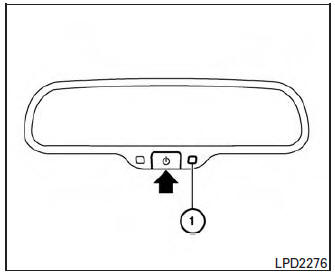

NOTE: Do not hang any objects over the sensors 1 or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the sensors, resulting in improper operation.
The indicator light will illuminate when the automatic anti-glare feature is operating.
With the ignition switch in the ON position, press
the button as described:
