Exploded View

1. O-ring 2. Input speed sensor 3. Transaxle assembly

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Apply petroleum jelly.

Removal and Installation

REMOVAL

Never Reuse These Parts Part Code For additional information:
Seal-O-ring 31051J Exploded View

Remove air cleaner and air duct. Refer to Removal and Installation.

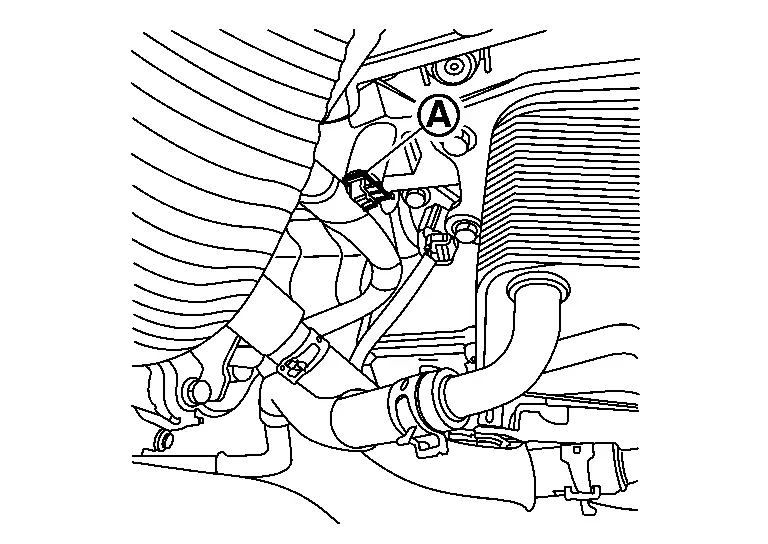

Remove harness clip (A).

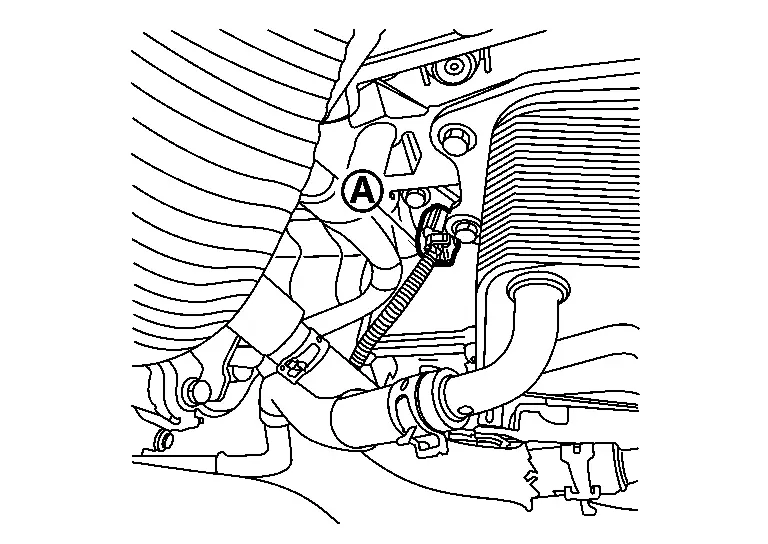

Disconnect the harness connector (A) from the input speed sensor.

Remove input speed sensor mounting bolt (A) , and then remove input speed sensor (1).

CAUTION:

Never impact input speed sensor.

Remove the O-ring from the input speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Never reuse O-ring.

  • Apply CVT fluid to the O-ring.

Inspection and Adjustment

Check for CVT fluid leakage. Refer to Inspection.

Adjust CVT fluid level. Refer to Adjustment.
