Remote Engine Start Information

DESIGN/PURPOSE

Information display informs the driver that the engine can be started.

Symbol Message

Push brake and start switch to drive

SYNCHRONIZATION WITH MASTER WARNING LAMP

No applicable

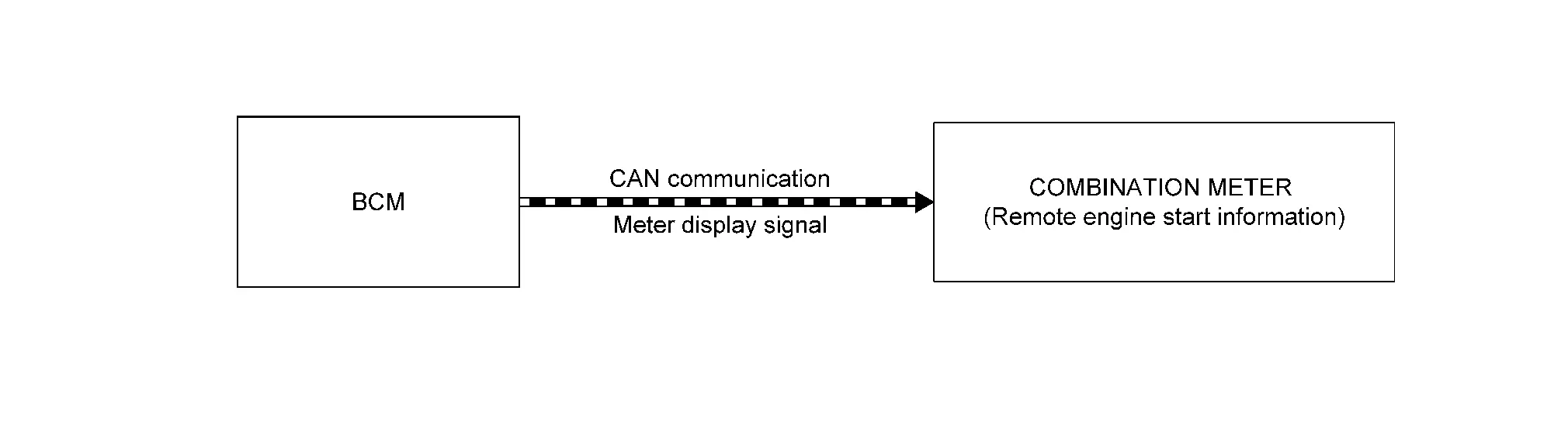

SYSTEM DIAGRAM

SIGNAL PATH

  • BCM transmits meter display signal to combination meter via CAN communication when remote engine run mode.

  • When combination meter receives meter display signal, combination meter display remote engine start information.

WARNING/INDICATOR OPERATION CONDITION

During remote engine run mode.

For details, refer to System Description.

WARNING/INDICATOR CANCEL CONDITION

Mode switch to normal engine run mode from remote engine run mode.

For details, refer to System Description.
