Nissan Rogue. Horn

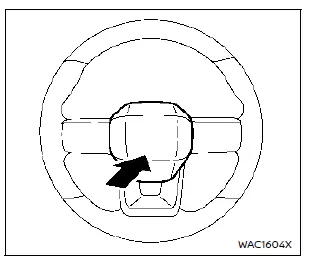

To sound the horn, press the center pad of the steering wheel.

WARNING

Do not disassemble the horn. Improper handling could affect proper operation of the supplemental front air bag system.

Tampering with the air bag system may result in serious personal injury.
