Nissan Rogue (T33) 2021-Present Service Manual: Ecu Diagnosis Information :: Sunshade Motor Assembly

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Roof / Ecu Diagnosis Information :: Sunshade Motor Assembly

Reference Value

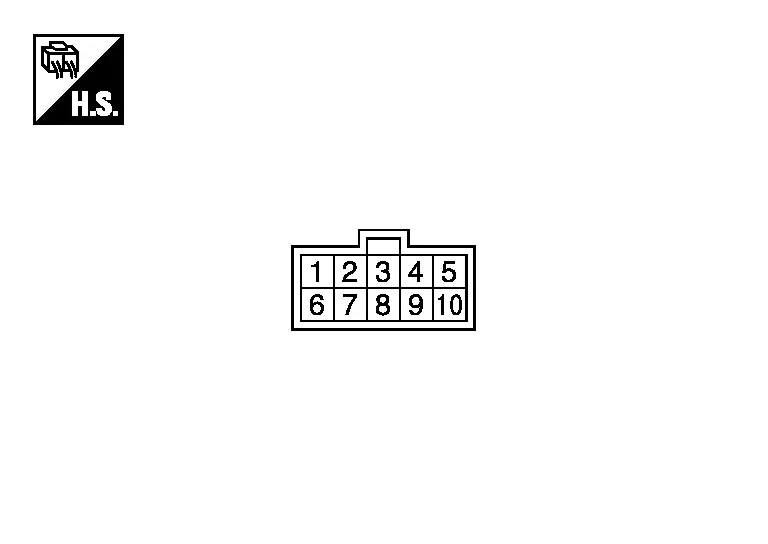

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal No.

(Wire color) 		Description Condition

Value

(Approx.)
+ – Signal name Input/Output

1

(B) 		Ground Ground — — 0 V

5

(Y) 		Ground Sunshade open signal Input Sunshade switch

Operate

(OPEN) 		0 V
Other than above Battery voltage

6

(R) 		Ground AUTO ACC power supply Input Ignition switch OFF (auto ACC status) or ON Battery voltage

7

(GR) 		Ground Communication line Input/Output Ignition switch ON

9

(P) 		Ground LIN communication signal Input/Output Ignition switch ON

10

(G) 		Ground Sunshade close signal Input Sunshade switch Operate (CLOSE) 0 V
Other than above Battery voltage
