Nissan Rogue (T33) 2021-Present Service Manual: Ecu Diagnosis Information :: 12v Sub Battery (lithium Ion Battery)

DTC Index

Self Diagnostic Result

DTC Display contents of CONSULT Reference
P1A00-49 Lithium ion battery 12V DTC Description
P1A01-A2 Lithium ion battery 12V DTC Description
P1A01-A3 Lithium ion battery 12V DTC Description
P1A04-97 Lithium ion battery 12V DTC Description
P1A04-98 Lithium ion battery 12V DTC Description
P1A06-18 Lithium ion battery 12V DTC Description
P1A06-19 Lithium ion battery 12V DTC Description

Network-DTC

DTC Display contents of CONSULT Reference
U0075-00 Control module comm Bus C Off DTC Description
U2148-87  CAN comm err (brake control unit) DTC Description
U214F-87  CAN comm err (BCM) DTC Description
U2150-87  CAN comm err (AIRBAG) DTC Description
U215B-87  CAN comm err (IPDM E/R) DTC Description
U2176-87 CAN comm err (CCM/ST angle sensor) DTC Description

Physical Values

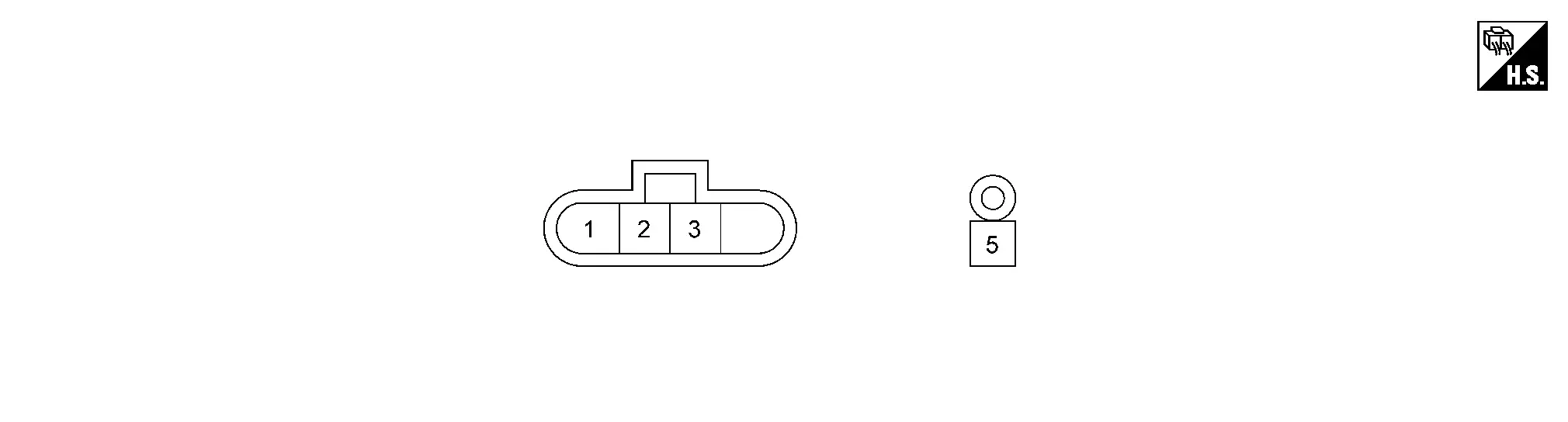

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal No.

(Wire color)
Description Condition Reference value
Signal name

Input/

Output

1

(Y)
Ground Battery power supply Input Ignition switch OFF Power supply voltage

2

(R)
Ground CAN-High

3

(L)
Ground CAN-Low

5

(B/Y)
Ground Input/output power supply

Input/

Output
When control is working Power supply voltage

Values On The Diagnosis Tool

NOTE:

The following table includes information (items) inapplicable to this Nissan Ariya vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Monitor Item Condition Value/Status

SUB BATTERY STATE OF HEALTH RESISTANCE

[%]
Displays 12V Sub-battery (lithium-ion battery) data in real time. %

Fail-safe

Refer to Fail-safe.

Protection Function

Refer to Protection Function.

    Wiring Diagram. Fuse, Fusible Link and Relay Box
    Wiring Diagram FUSIBLE LINK BOX (BATTERY)Refer to Fuse and Fusible Link Arrangement.FUSIBLE LINK BOX (12V SUB BATTERY) (LITHIUM ION BATTERY)Refer to Fuse and Fusible Link Arrang...
    Basic Inspection. Inspection and Adjustment. Additional Service When Removing Battery Negative Terminal
    Additional Service When Removing Battery Negative Terminal Required Procedure After Battery Disconnection System Item Reference Engine Control System Idle Air Volume Learning Wo...
