Nissan Rogue (T33) 2021-Present Service Manual: Dtc/circuit Diagnosis :: Intelligent Key Battery

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Door & Lock / Dtc/circuit Diagnosis :: Intelligent Key Battery

Component Inspection

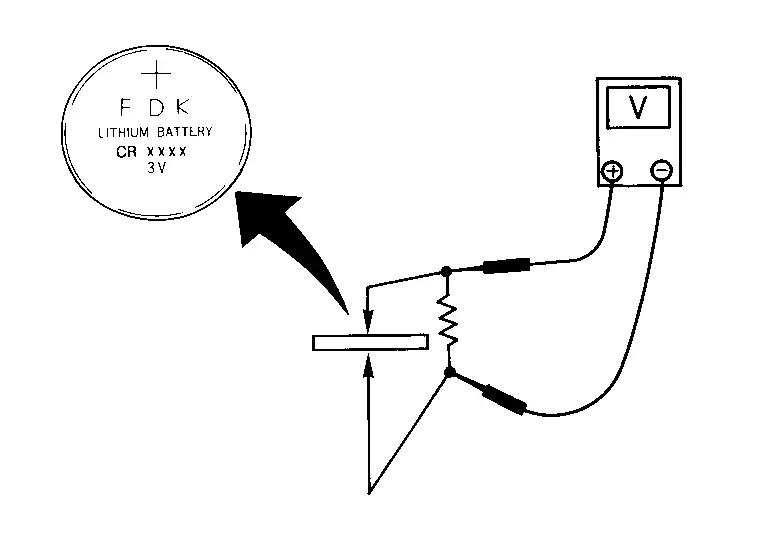

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300 Ω) so that the current value becomes about 10 mA. Refer to Removal and Installation.

Standard : Approx. 2.5 - 3.0 V

Is the measurement value within the specification?

YES>>

Inspection End.

NO>>

Replace Intelligent Key battery.
