Nissan Rogue (T33) 2021-Present Service Manual: Driver Assistance System :: Preparation. Preparation

Nissan Rogue (T33) 2021-Present Service Manual / Cruise Control & Driver Assistance :: Driver Assistance System / Driver Assistance System :: Preparation. Preparation

Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		  Description

  —

(NI-46534)

Trim Tool Set

Removing trim components

—

(1–20–2851–1)

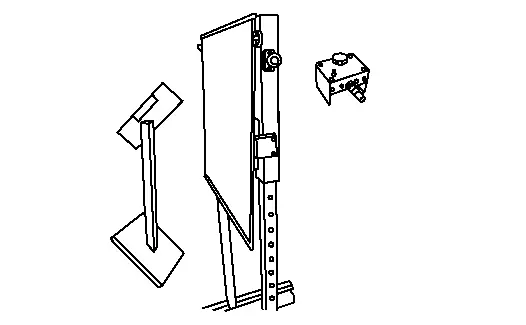

ICC alignment kit*

Uses for radar alignment

—

(NI-52266)

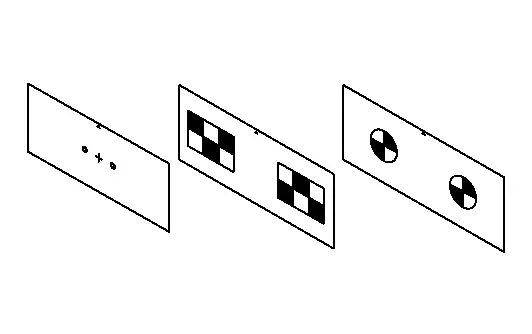

Driver Assistance Targets

Adjusting front camera unit

* NOTE: Tools 1–20–2721–1–IF, 1–20–2722–1–IF and NI-50808 have been superseded and are no longer available, but may still be used for distance sensor alignment.
