Nissan Rogue (T33) 2021-Present Service Manual: Distance Sensor Alignment

Work Procedure

Always perform the radar alignment after removing and installing or replacing the distance sensor.

Application Notice

Type Description
TYPE 1 When using KV99112700 for radar alignment. Refer to Description.
TYPE 2 When using 1-20-2851-1 for radar alignment. Refer to Description.

TYPE 1

Description

  • A 4-wheel vehicle alignment must be performed before proceeding with radar alignment procedure.

  • Always perform the radar alignment after removing and installing or replacing the distance sensor.

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.

CAUTION:

The system does not operate normally unless the radar alignment is performed. Always perform it.

  1. Set the target board (SST: KV99112700) to the correct position in front of the vehicle.

  2. Set the radar alignment mode (“MILLIWAVE RADAR ADJUST” on “Work support”) with CONSULT, and then perform the adjustment according to the display. (Distance sensor automatically adjusts.)

CAUTION:

  • For radar alignment procedure, choose a level location with a few meter of working space in front and surrounding the Nissan Ariya vehicle.

  • Vehicle must be stationary and unoccupied during the whole alignment procedure.

  • Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.

  • The ignition switch must be in the ON position.

  • The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.

  • The target board must be set in front of the Nissan Ariya vehicle facing the sensor.

  • Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)

  • Never enter the Nissan Ariya vehicle during radar alignment.

  • Never block the area between the radar and the target board at any time during the alignment process.

  • Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.

  • For proper system operation and adjustment, all Nissan Ariya vehicle wheels must be of the same size.

Preparation

ADVANCE PREPARATION FOR RADAR ALIGNMENT

  1. Adjust all tire pressure to the specified value.

  2. Empty the Nissan Ariya vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)

  3. Shift the selector lever to “P” position, and release the parking brake.

  4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

  5. Clean the distance sensor area of the front bumper grille.

>>

GO TO 2.

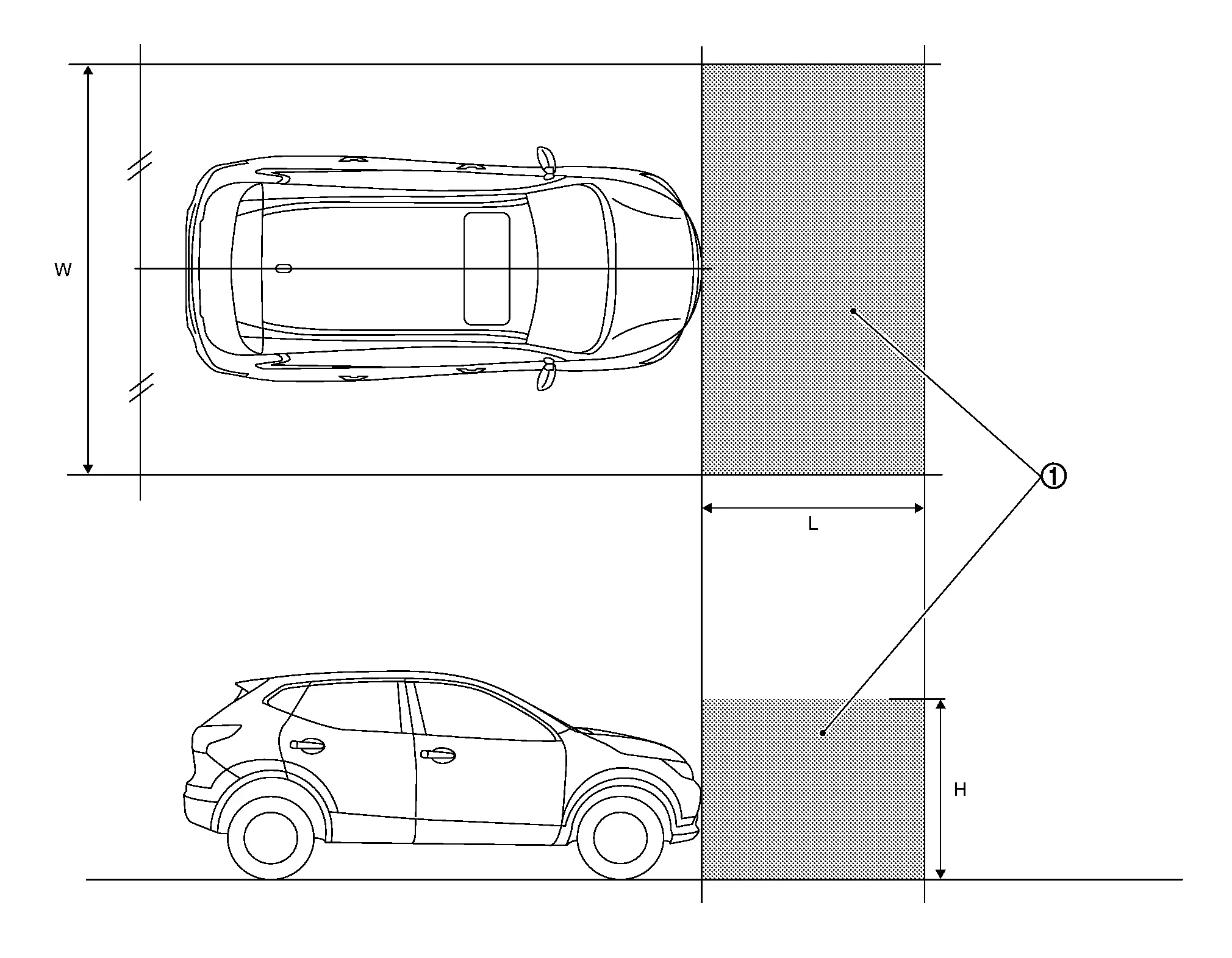

RADAR ALIGNMENT OPERATION AREA

Position the Nissan Ariya vehicle in a place that is level and where area can be secured.

W : 3000 mm (118.11 in)
L : 2000 mm (78.74 in)
H : 2000 mm (78.74 in)

NOTE:

is a no object zone.

>>

Go to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the AEB/I-FCW systems do not function normally.

TARGET BOARD HEIGHT ADJUSTMENT

Set the target board up to adjustable maximum height.

>>

GO TO 2.

PREPARATION OF SETTING TARGET BOARD (1)

“A”–“E” (“C”–“F”) : 2000 mm (78.7 in)

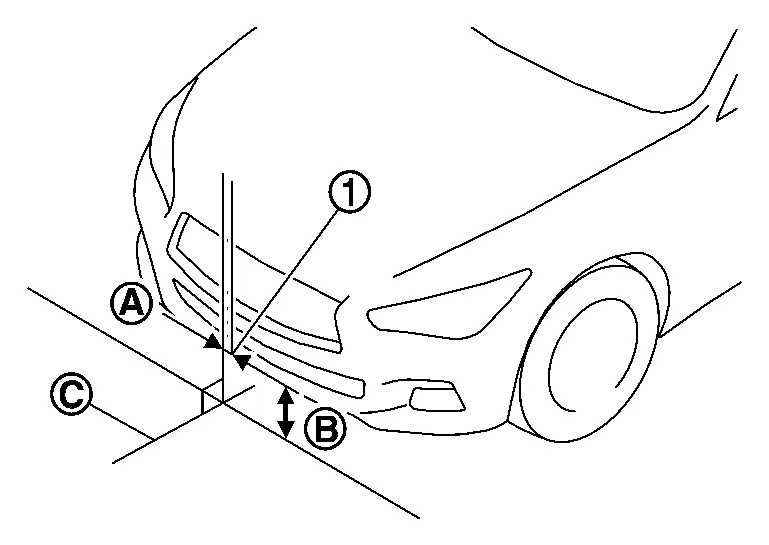

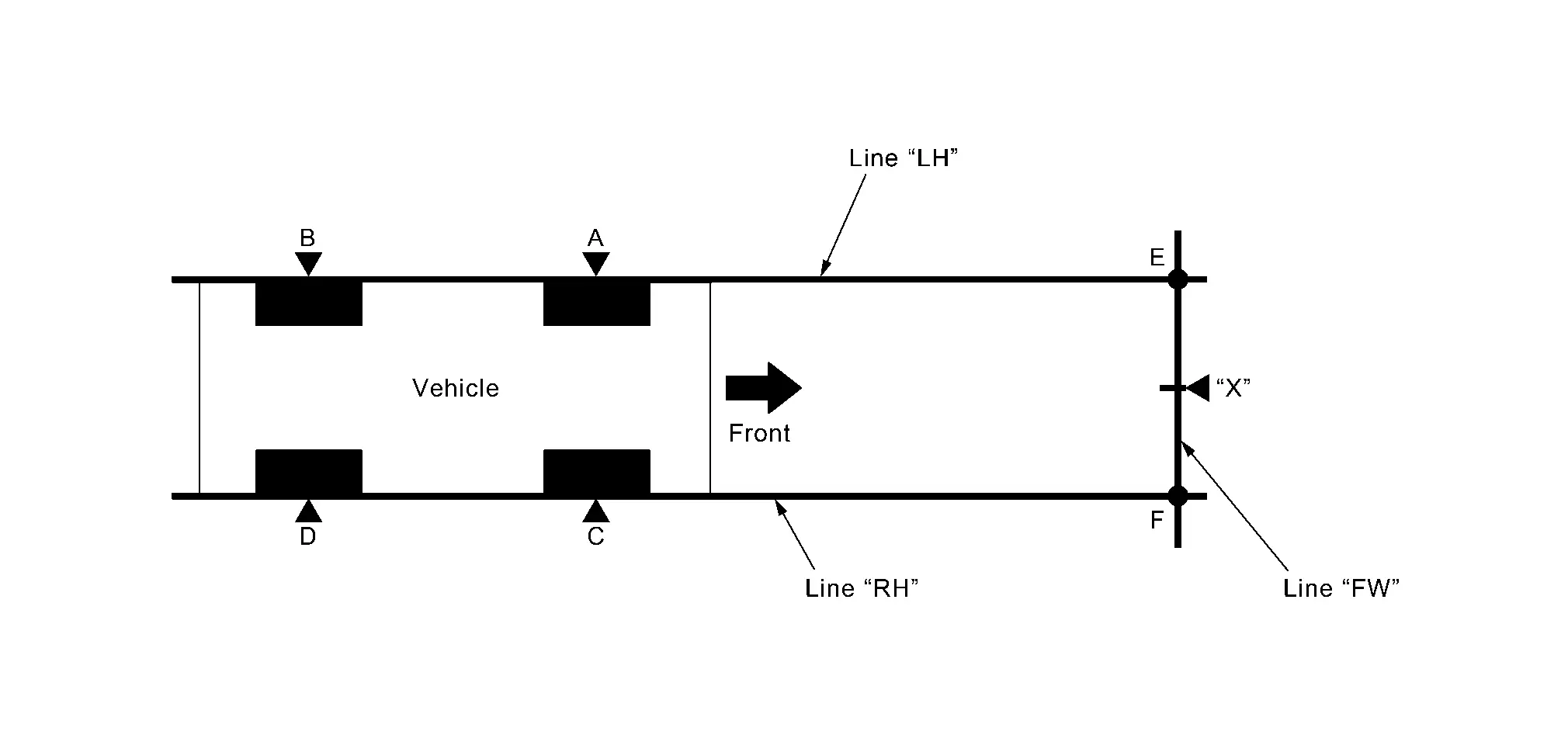

  1. Mark points “A”, “B”, “C” and “D”at the center of the lateral surface of each wheels.

    NOTE:

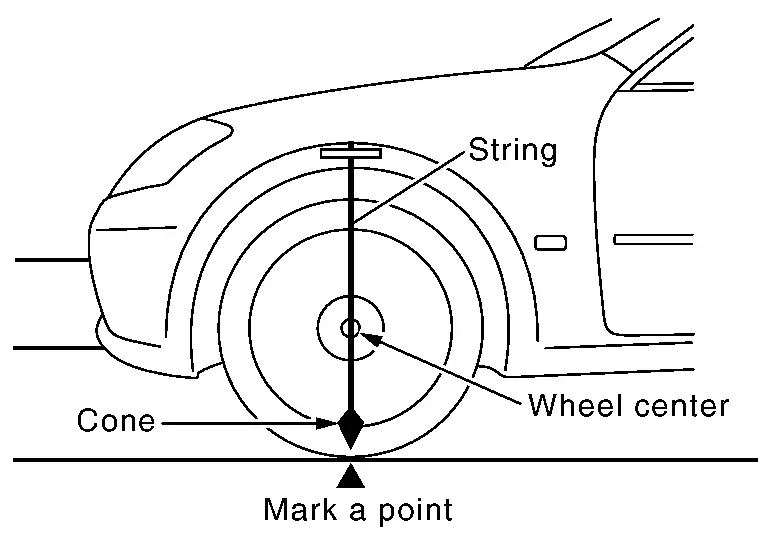

    Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.

  2. Draw line “LH” passing through points “A” and “B” on the left side of Nissan Ariya vehicle.

    NOTE:

    Approximately 2 m (6.56 ft) or more from the front end of Nissan Ariya vehicle.

  3. Mark point “E” on the line “LH” at the positions 2000 mm (78.7 in) from point “A”.

  4. Draw line “RH” passing through points “C” and “D” on the right side of Nissan Ariya vehicle in the same way as step 2.

    NOTE:

    Approximately 2 m (6.56 ft) or more from the front end of Nissan Ariya vehicle.

  5. Mark point “F” on the line “RH” at the positions 2000 mm (78.7 in) from point “C”.

  6. Draw line “FW” passing through the points “E” and “F” on the front side of Nissan Ariya vehicle.

  7. Mark point “X” at the center of point “E” and “F” on the line “FW”.

    CAUTION:

    Make sure that “E” to “X” is equal to “F” to “X”.

>>

GO TO 3.

SETTING TARGET BOARD

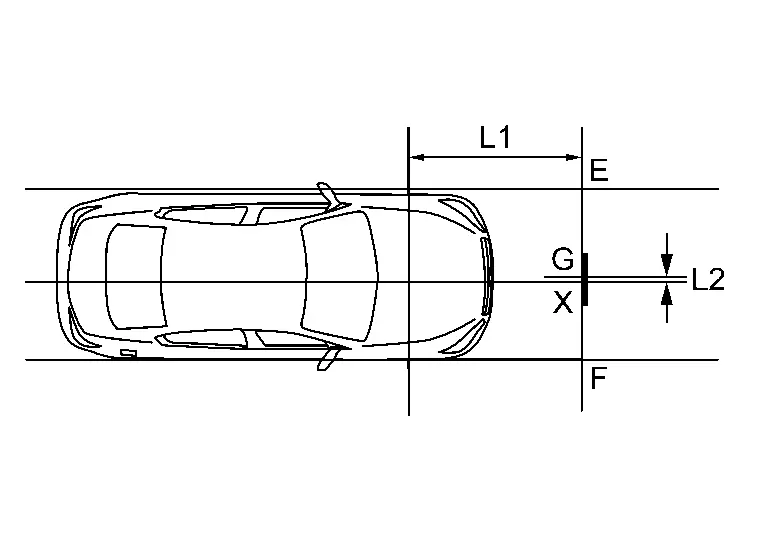

Place the center of target board on point “G” at line “E-F” and install the target board.

CAUTION:

For performing the radar alignment correctly, securely install (target board) to be parallel with the “E-F” line.

L1 : 2000 mm (78.7 in)
L2 : 0 mm (0 in)

>>

GO TO 4.

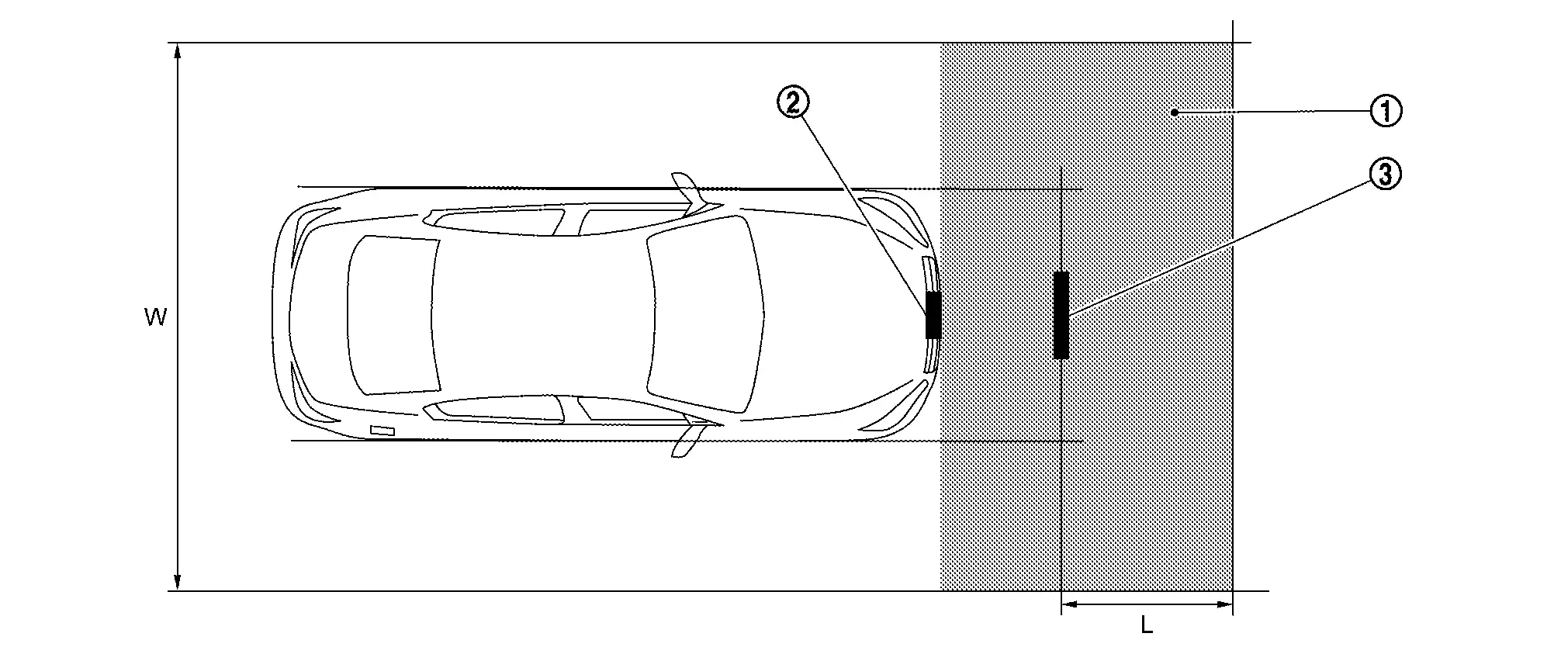

CHECK THE TARGET BOARD INSTALLATION AREA

Do not place anything other than target board in the space shown in the figure (view from top).

No object zone Distance sensor Target board
W. 3000 mm (118.11 in) L. 1500 mm (59.06 in)

>>

Go to Radar Alignment.

Radar Alignment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the AEB/ProPILOT Assist/I-FCW systems are inoperable.

PERFORM RADAR ALIGNMENT

  1. Start the engine.

  2. Connect CONSULT and select “Work support” of “LASER/RADAR”.

  3. Select “MILLIWAVE RADAR ADJUST”.

    NOTE:

    Confirm the following items;

    • The target should be accurately placed.

    • The Nissan Ariya vehicle should be stopped.

  4. Select “Start” after the conditions displayed on CONSULT are satisfied.

    CAUTION:

    Never select “Start” when the target is not accurately placed.

  5. Select “Next” after the “Radar alignment conditions are ready.” screen is displayed.

    NOTE:

    If the radar is in alignment at this time, “In progress” is displayed. It may take several 10s of seconds until the result is displayed.

  6. Confirm the displayed item.

    • “Completed.”: Go to 7.

    • Except “Completed.”: Perform the following services.

      Displayed item Possible cause Service procedure
      Alignment result is over threshold.
      • DTC is detected

      • The position of the target board is incorrect

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Horizontal value is over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted horizontally

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Vertical value is over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted vertically

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Horizontal value and Vertical value are over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted horizontally and vertically

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again
      This display direction is looking from driver seat side.

      NOTE:

      This is not an error message, so service procedures are not required.

      Target is not detected. (Reflection radio waves is weak.)

      Reconfirm the placing condition, and then re-perform adjustment.
      • A target is not-yet -placed

      • The position of the target board is incorrect

      • The position of the distance sensor is incorrect

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      Target setting is offset in horizontal direction.

      Reconfirm the placing condition. And then re-perform adjustment or re-install the radar.
      • The position of the target board is shifted horizontally

      • The position of the distance sensor is shifted horizontally

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      Target setting is offset in vertical direction.

      Reconfirm the placing condition. And then re-perform adjustment or re-install the radar.
      • The position of the target board is shifted vertically

      • The position of the distance sensor is shifted vertically

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      EEPROM writing is error.

      Re-perform adjustment or replace the ECU.
      • The condition of the alignment is incorrect

      • Distance sensor malfunction

      • Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      • If same massage displays again, replace the distance sensor

      Hardware is imperfect.

      Replace the ECU.
      Distance sensor hardware has trouble for alignment Replace the distance sensor

      Signal of Nissan Ariya vehicle side is imperfect or combination of ECU is incorrect.

      Diagnose the other ECU.
      Other ECU except distance sensor have trouble for alignment
      • Check if any DTC is detected in “Self Diagnostic Result” of other ECU except distance sensor

      • If any DTC is not detected, replace the distance sensor

      Software is incorrect.

      Replace the ECU.
      Distance sensor software is incorrect Replace the distance sensor
  7. Confirm displayed value.

    Displayed item Monitor item Reference value
    Completed Vertical Angle Radar angle “DownW” or “UpW”
    Vertical Angle Radar measurement result (- 2.50) - (+ 3.00)
    Horizontal Angle Radar angle “LeftW” or “RightW”
    Horizontal Angle Radar measurement result Less than 0 ± 4.00 deg
    Alignment status Alignment complete
    • Within reference value: Go to 8.

    • Outside of reference value: Check the target board condition and perform radar alignment again.

      NOTE:

      • Check the condition of the distance sensor installation.

      • Check the Nissan Ariya vehicle for damage.

      • Replace distance sensor if it is outside the reference value, even when distance sensor installation is installed normally and the Nissan Ariya vehicle is not damaged.

  8. Select “End”.

    CAUTION:

    Once “MILLIWAVE RADAR ADJUST” is started with CONSULT, always continue the work until the horizontal radar alignment is completed successfully. If the job is stopped midway, the radar alignment is not adjusted and the AEB/ProPILOT Assist/I-FCW systems cannot operate.

>>

GO TO 2.

CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR

  1. Perform "All DTC Reading".

  2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer to DTC Index.

  3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.

  4. Ignition switch OFF to ON, and perform the radar alignment again.

>>

WORK END.

TYPE 2

Description

  • A 4-wheel vehicle alignment must be performed before proceeding with radar alignment procedure.

  • Always perform the radar alignment after removing and installing or replacing the distance sensor.

  • Always perform the radar alignment if rear axle toe settings have been made.

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.

CAUTION:

The system does not operate normally unless the distance sensor is aligned properly.

  1. Required tools, refer to Required Tools.

  2. Preparation, refer to Preparation.

  3. Nissan Ariya Vehicle set up, refer to Vehicle Set Up.

  4. Setting the target board, refer to Setting The Target Board.

  5. Distance sensor adjustment, refer to distance Sensor Adjustment.

CAUTION:

  • For radar alignment procedure, choose a level location with a few feet of working space in front and surrounding the Nissan Ariya vehicle.

  • Vehicle must be stationary and unoccupied during the whole alignment procedure.

  • Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.

  • The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.

  • The target board must be set in front of the Nissan Ariya vehicle facing the sensor.

  • Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)

  • Never enter the Nissan Ariya vehicle during radar alignment.

  • Never block the area between the radar and the target board at any time during the alignment process.

  • Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.

  • For proper system operation and adjustment, all Nissan Ariya vehicle wheels must be of the same size.

Required Tools

The following tools are necessary to perform distance sensor alignment:

  • Radar Sensor Aiming Kit 1–20–2851–1 Kit includes the following:

a) Target Board (Fixture)

b) Laser assembly

c) Rear Stand

Use kit 1–20–2851–1 with a self-centering wheel adapter (e.g. 1–20–2722–1–IF, Hunter 20–3339–1 or equivalent).

NOTE:

Tools 1–20–2721–1–IF, 1–20–2722–1–IF and NI-50808 have been superseded and are no longer available, but may still be used for distance sensor alignment.

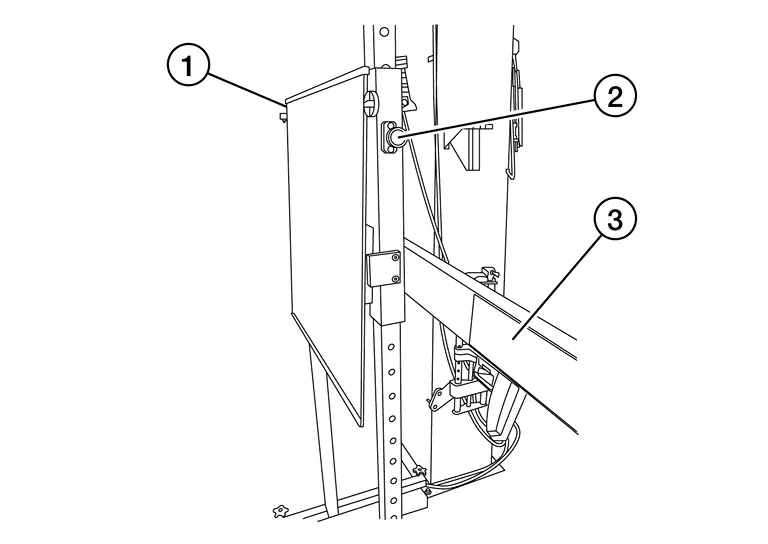

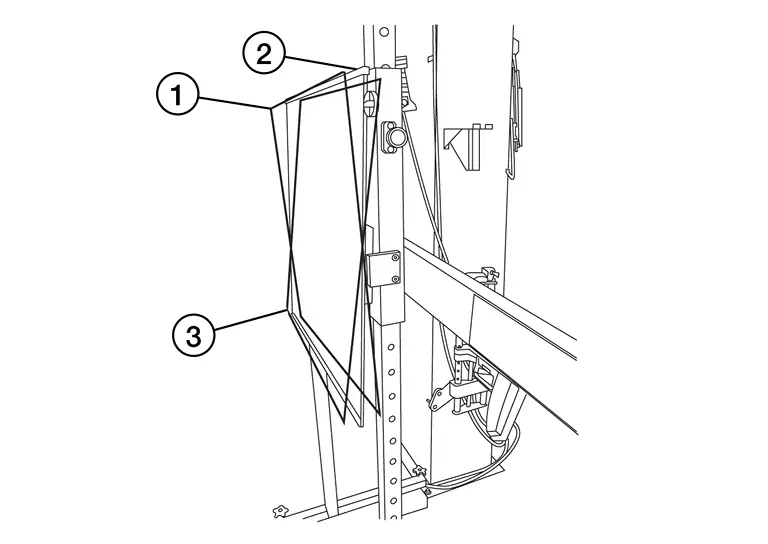

  • Target board.

    1. : Position 1, with top tilted 2° toward Nissan Ariya vehicle (Not used).

    2. : Position 2, vertical.

    3. : Position 3, with top tilted 2° away from Nissan Ariya vehicle (Not used).

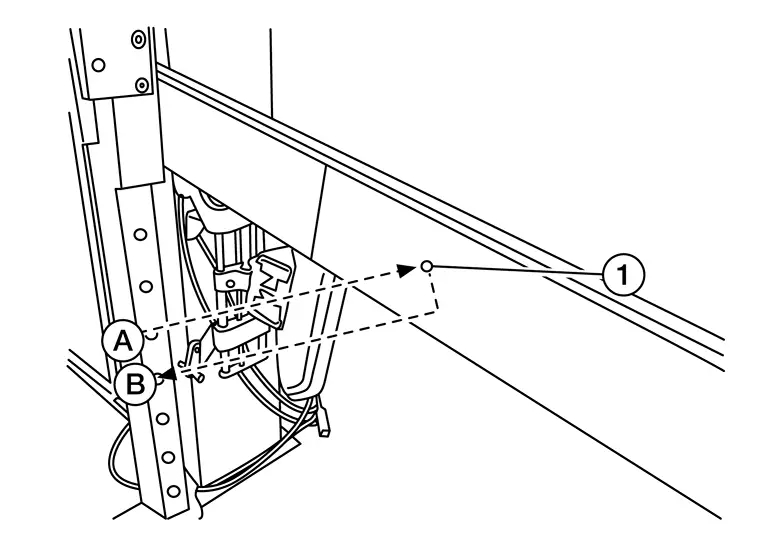

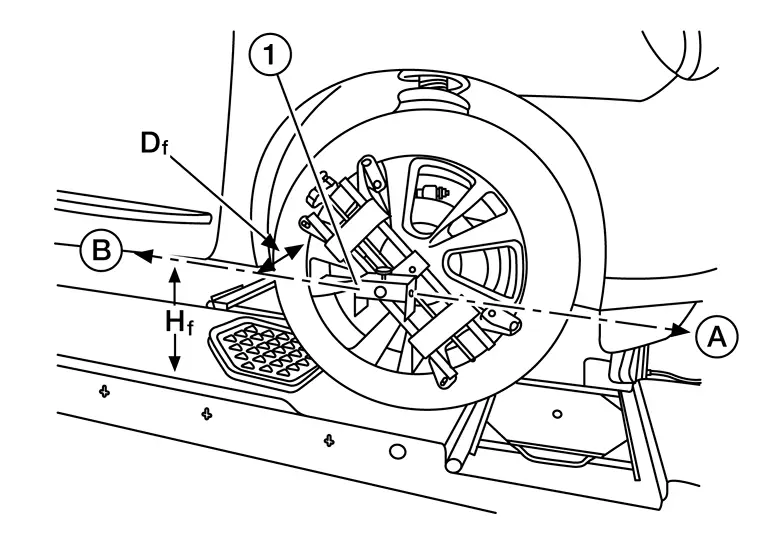

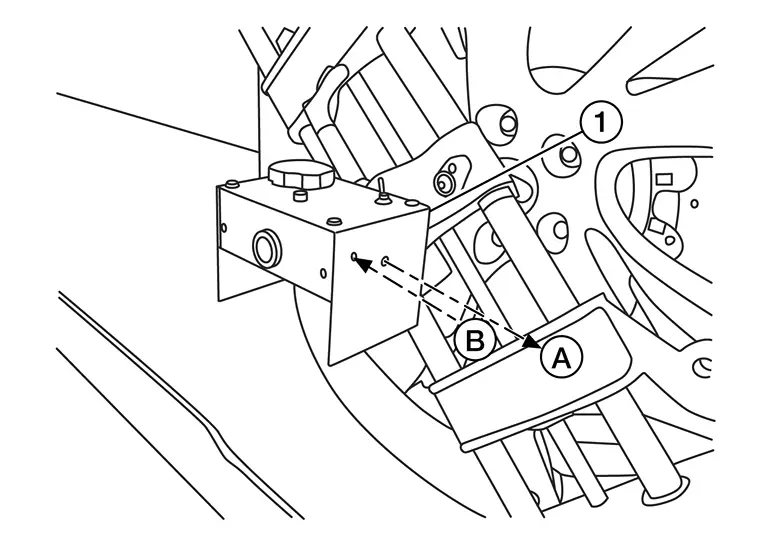

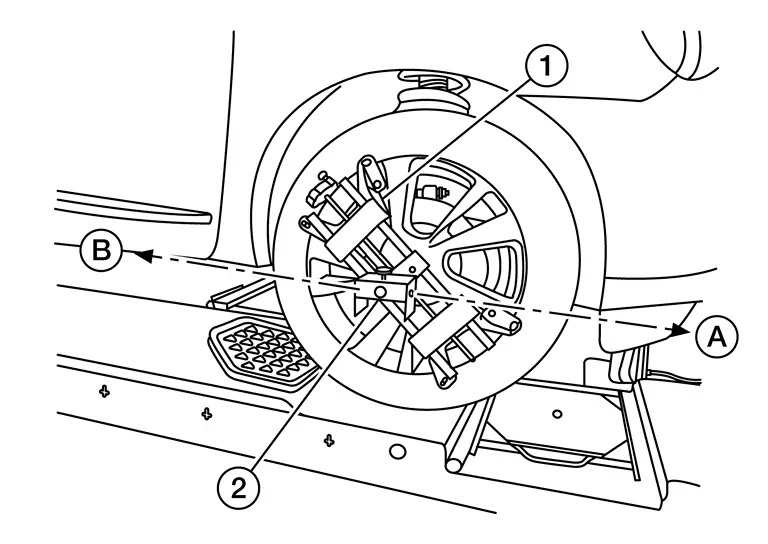

  • Hunter self-centering wheel adapter [shown with laser assembly installed] (Hunter alignment rack head may be substituted).

    NOTE:

    Directional arrows and are shown to illustrate the direction of the laser assembly beams.

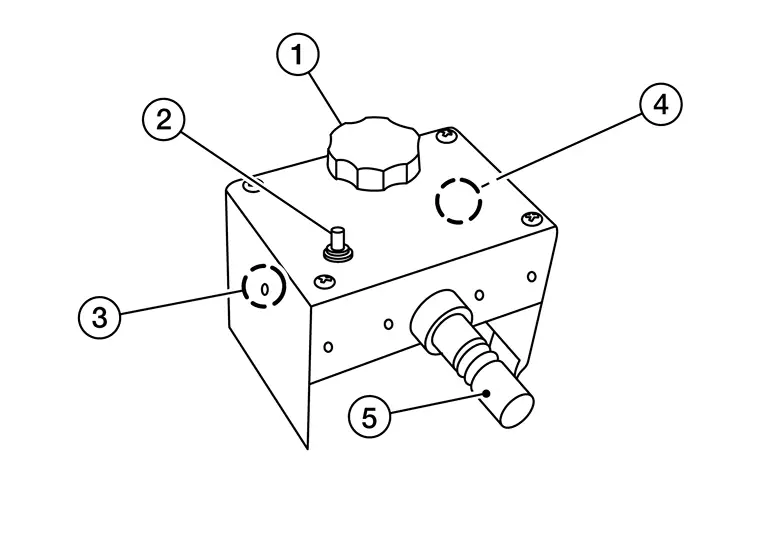

  • Laser assembly (with bi-directional laser beam) as shown in the illustration.

    1. Tightening knob

    2. Power ON/OFF button

    3. Front laser beam opening

    4. Rear laser beam opening

    5. Attaching shaft

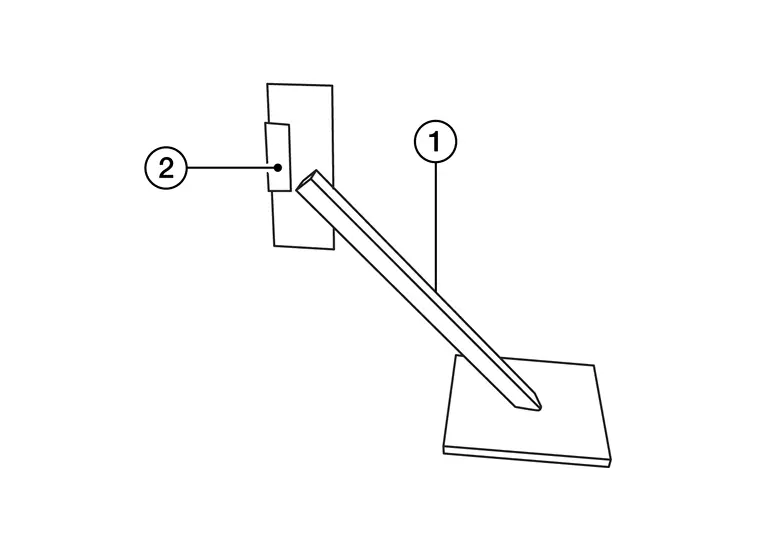

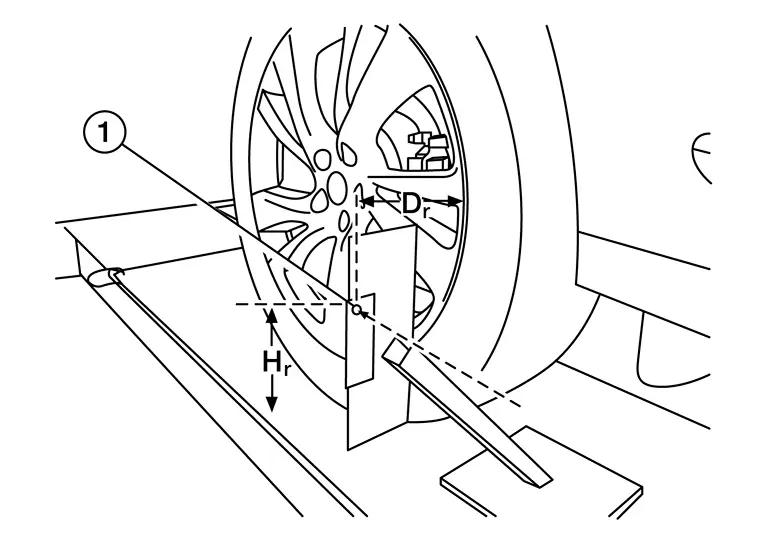

  • Rear stand as shown in the illustration.

    1. Rear stand

    2. Laser signal reception plate

  • Distance chain (not shown)

Preparation

ADVANCE PREPARATION FOR RADAR ALIGNMENT PROCEDURE

  1. Adjust all tire pressure to the specified value.

  2. Empty the Nissan Ariya vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)

  3. Shift the selector lever to “P” position, and release the parking brake.

  4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

  5. Clean the distance sensor area of the front bumper grille.

>>

Refer to Nissan Ariya Vehicle Set Up.

Vehicle Set Up

Accurate adjustment of the radar alignment requires that the target board, wheel adapter, laser assembly, and rear stand be properly positioned.

CAUTION:

If the radar alignment is adjusted with the target board, wheel adapter, laser assembly, or rear stand in the incorrect position, the AEB/I-FCW systems will not function properly or the alignment procedure may not be completed successfully.

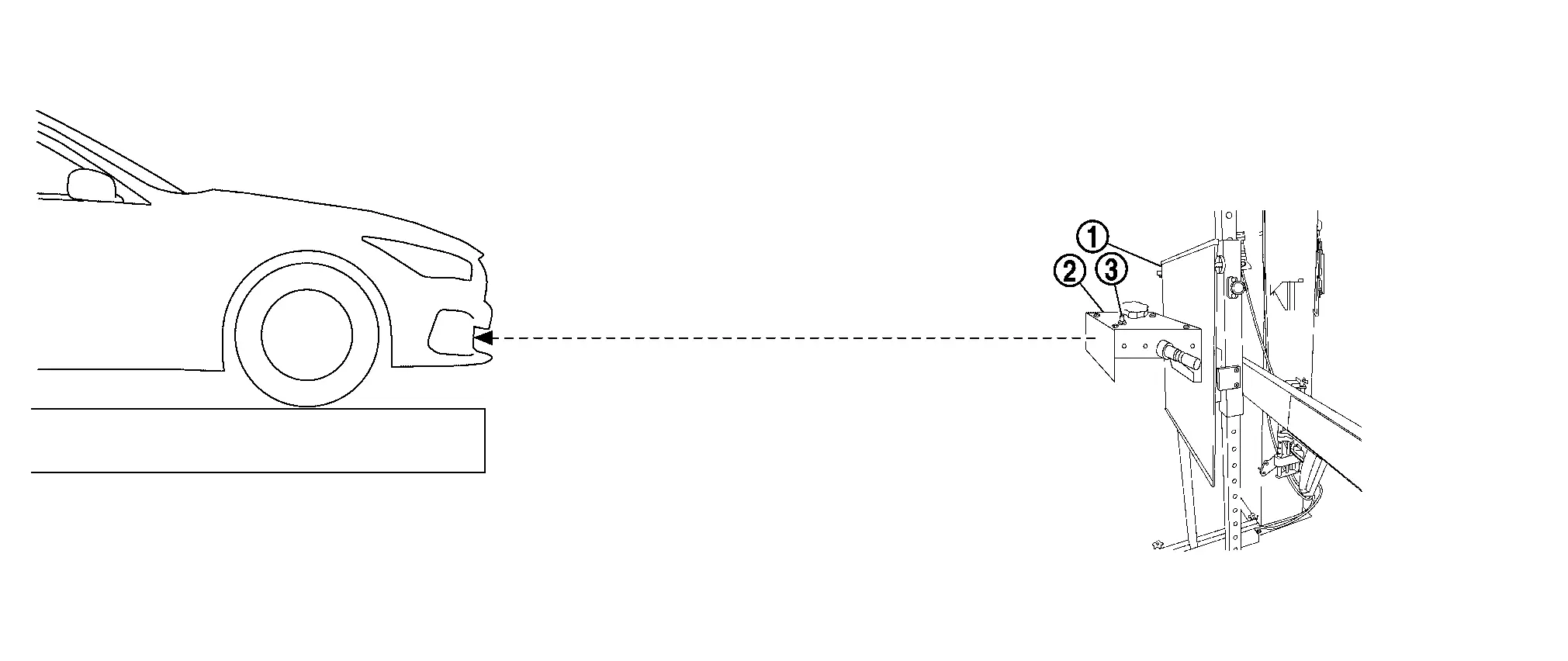

PREPOSITION TARGET BOARD

NOTE:

  • To identify the sensor wave axis center, measure the point as shown in the illustration.

    A : 0 mm (0 in)
    B : 813.6 mm (32.03 in)
    C : Nissan Ariya Vehicle center
  • Target board setting must be in the center position. (Position 2)

  • Attaching the distance sensor alignment kit attachment board to the target board.

  1. Position the target board in front facing the right front side of the Nissan Ariya vehicle:

    1. Place the marked center of the target board 813.6 mm (32.03 in) ± 50 mm (1.97 in) facing the distance sensor.

    2. Adjust the height of the target board using the adjustable nut to achieve the proper height. The up/down tolerance is ± 30 mm (1.18 in).

    3. Adjust the target board lateral position aligning the marked center of the board horizontally with the center of the distance sensor. The right/left tolerance is ± 80 mm (3.15 in).

  2. Extend the machined arm of the target board exposing the reflective surface to the right front side of the Nissan Ariya vehicle.

  3. Place one side of the laser assembly flush against the center of the target board to assist in the positioning.

  4. Turn the laser assembly ON allowing the laser beam to emit through the opening of the laser assembly toward the center of the distance sensor.

  5. Move the target board as necessary so that center of target board aligns with center of distance sensor.

  6. Turn the laser assembly OFF when done.

Are using Hunter alignment equipment?

YES>>

Refer to Hunter’s equipment instructions for complete Nissan Ariya vehicle set up and target board setting. Then, refer to Distance Sensor Adjustment.

NO>>

GO TO 2.

INSTALLING LASER ASSEMBLY

NOTE:

  • Insure the steering wheel is positioned in the center straight forward position.

  • Insure all 4 Nissan Ariya vehicle wheels do not contain any physical damage.

  1. Install the wheel adapter on the right front wheel.

  2. Mount the laser assembly to the wheel adapter as shown in the figure.

    NOTE:

    When the power switch is turned ON, the front laser signal will be emitted toward the front target board, and the rear laser signal will be emitted toward the rear of the Nissan Ariya vehicle.

>>

GO TO 3.

SETTING UP REAR STAND

  1. Place the rear stand next to the right rear tire as shown in the figure.

  2. Turn the laser assembly ON allowing the laser beam to be emitted through the front and rear laser assembly openings.

  3. Measure and record the distance (Dr) between the edge of the right rear wheel and the laser beam on the rear stand (horizontal line).

  4. Measure and record the height (Hr) between the laser beam on the rear stand and ground level (vertical line).

  5. Measure and record the distance (Df) between the edge of the right front wheel and the laser beam signal/opening on the laser assembly (horizontal line).

  6. Measure and record the height (Hf) between the laser beam signal/opening on the laser assembly and ground level (vertical line).

    NOTE:

    • Horizontal adjustment [front distance (Df) and rear distance (Dr)] is accomplished by slowly turning the steering wheel until the 2 distances are the same.

    • Vertical adjustment [front height (Hf) and rear height (Hr)] is accomplished by rotating the laser assembly around its axis until the two heights are the same.

    • Directional arrows and are shown to illustrate the direction of the laser assembly beams.

  7. Adjust laser beam as necessary until the two distances match and the two heights match.

    NOTE:

    Must be verify both horizontal and vertical adjustments anytime one adjustment is made.

>>

Refer to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the AEB/I-FCW systems will not function properly or the alignment procedure may not be completed successfully.

TARGET BOARD FINAL SETTING

  1. With the target board arm extended, the laser beam emitted by the laser assembly will be reflected back toward the laser assembly.

    NOTE:

    When adjusted properly, reflected laser beam must align with emitted laser beam and the two laser beams will be seen as one.

  2. Rotate the target board to achieve the necessary horizontal adjustment.

  3. Adjust the target board leveling screws to achieve the necessary vertical adjustment.

  4. The figure shown illustrates the laser beam emitted by the laser assembly and its reflection off of the target board arm.

>>

GO TO 2.

CHECK THE POSITION OF THE TARGET BOARD

Do not place anything other than the target board in the space shown in front of the Nissan Ariya vehicle (view from top).

Target board arm Target board Distance sensor
Nissan Ariya Vehicle
Distance between front wheel and laser beam (Df) Distance between rear wheel and laser beam (Dr) Height between front laser beam and ground (Hf)
Height between rear laser beam and ground (Hr) Target board center position 1010 - 1110 mm (39.76 - 43.7 in)

>>

Refer to Distance Sensor Adjustment.

Distance Sensor Adjustment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the AEB/ProPILOT Assist/I-FCW systems are inoperable.

PERFORM RADAR ALIGNMENT

  1. Start the engine.

  2. Connect CONSULT and select “Work support” of “LASER/RADAR”.

  3. Select “MILLIWAVE RADAR ADJUST”.

    NOTE:

    Confirm the following items;

    • The target should be accurately placed.

    • The Nissan Ariya vehicle should be stopped.

  4. Select “Start” after the conditions displayed on CONSULT are satisfied.

    CAUTION:

    Never select “Start” when the target is not accurately placed.

  5. Select “Next” after the “Radar alignment conditions are ready.” screen is displayed.

    NOTE:

    If the radar is in alignment at this time, “In progress” is displayed. It may take several 10s of seconds until the result is displayed.

  6. Confirm the displayed item.

    • “Completed.”: Go to 7.

    • Except “Completed.”: Perform the following services.

      Displayed item Possible cause Service procedure
      Alignment result is over threshold.
      • DTC is detected

      • The position of the target board is incorrect

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Horizontal value is over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted horizontally

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Vertical value is over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted vertically

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again

      Horizontal value and Vertical value are over threshold.

      Check the condition.

      Perform the adjust again.
      • DTC is detected

      • The position of the target board is shifted horizontally and vertically

      • Nissan Ariya Vehicle is moving

      Check the vehicle alignment condition and perform radar alignment again
      This display direction is looking from driver seat side.

      NOTE:

      This is not an error message, so service procedures are not required.

      Target is not detected. (Reflection radio waves is weak.)

      Reconfirm the placing condition, and then re-perform adjustment.
      • A target is not-yet -placed

      • The position of the target board is incorrect

      • The position of the distance sensor is incorrect

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      Target setting is offset in horizontal direction.

      Reconfirm the placing condition. And then re-perform adjustment or re-install the radar.
      • The position of the target board is shifted horizontally

      • The position of the distance sensor is shifted horizontally

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      Target setting is offset in vertical direction.

      Reconfirm the placing condition. And then re-perform adjustment or re-install the radar.
      • The position of the target board is shifted vertically

      • The position of the distance sensor is shifted vertically

      Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      EEPROM writing is error.

      Re-perform adjustment or replace the ECU.
      • The condition of the alignment is incorrect

      • Distance sensor malfunction

      • Check the Nissan Ariya vehicle alignment condition and perform radar alignment again

      • If same massage displays again, replace the distance sensor

      Hardware is imperfect.

      Replace the ECU.
      Distance sensor hardware has trouble for alignment Replace the distance sensor

      Signal of Nissan Ariya vehicle side is imperfect or combination of ECU is incorrect.

      Diagnose the other ECU.
      Other ECU except distance sensor have trouble for alignment
      • Check if any DTC is detected in “Self Diagnostic Result” of other ECU except distance sensor

      • If any DTC is not detected, replace the distance sensor

      Software is incorrect.

      Replace the ECU.
      Distance sensor software is incorrect Replace the distance sensor
  7. Confirm displayed value.

    Displayed item Monitor item Reference value
    Completed Vertical Angle Radar angle “DownW” or “UpW”
    Vertical Angle Radar measurement result (- 2.50) - (+ 3.00)
    Horizontal Angle Radar angle “LeftW” or “RightW”
    Horizontal Angle Radar measurement result Less than 0 ± 4.00 deg
    Alignment status Alignment complete
    • Within reference value: Go to 8.

    • Outside of reference value: Check the target board condition and perform radar alignment again.

      NOTE:

      • Check the condition of the distance sensor installation.

      • Check the Nissan Ariya vehicle for damage.

      • Replace distance sensor if it is outside the reference value, even when distance sensor installation is installed normally and the Nissan Ariya vehicle is not damaged.

  8. Select “End”.

    CAUTION:

    Once “MILLIWAVE RADAR ADJUST” is started with CONSULT, always continue the work until the horizontal radar alignment is completed successfully. If the job is stopped midway, the radar alignment is not adjusted and the AEB/ProPILOT Assist/I-FCW systems cannot operate.

>>

GO TO 2.

CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR

  1. Perform "All DTC Reading".

  2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer to DTC Index.

  3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.

  4. Ignition switch OFF to ON, and perform the radar alignment again.

>>

WORK END.

    Distance Sensor Inspection
    Work Procedure CAUTION: In the following conditions, the distance sensor may not perform optimally. Attaching stickers or installing aftermarket parts around the distance sensor...
    Additional Service When Replacing Front Camera Unit
    Work Procedure Always perform the front camera unit configuration after replacing the front camera unit. Always perform the camera aiming after removing and installing or replac...

    Other materials:

    Chassis Can Communication 4 Circuit
    Diagnosis Procedure CHECK NETWORK DIAGNOSIS Check the "Network diagnosis" results from CONSULT to see that the diagnostic CAN communication circuit have no malfunction. Are the diagnostic CAN communication circuit normal? YES>> GO TO 2. NO>> Check and repair diagnostic CAN commu ...

    Difference between predictive and actual distances
    Basic information The displayed guide lines and their positions on the ground are intended only as approximate references. When driving the Nissan Rogue on uphill, downhill, or uneven surfaces, or when objects extend outward, the actual distance may differ from what appears on the monitor relative t ...

    Information Display (combination Meter)
    Door Open Warning DESIGN/PURPOSEInformation display warns the driver that each door is open or is not fully closed. Symbol Message – SYNCHRONIZATION WITH MASTER WARNING LAMPSynchronization is applied.Refer to Master Warning Lamp.SYSTEM DIAGRAMSIGNAL PATH BCM transmits door switch ...
