Precautions

PRECAUTIONS FOR SUPPLEMENTAL RESTRAINT SYSTEM (SRS) AIR BAG AND SEAT BELT PRE-TENSIONER : Precautions

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation:

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation:

PRECAUTIONS FOR PROCEDURE WITHOUT COWL TOP COVER : Precautions

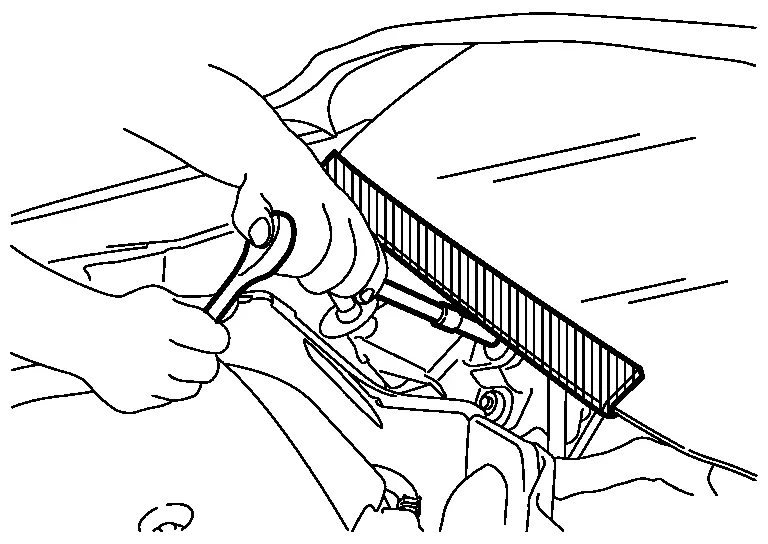

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc to prevent damage to windshield.

PRECAUTIONS FOR REMOVING BATTERY TERMINAL : Precautions

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the Intelligent Key or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even after the ignition switch is in the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, place the ignition switch in the OFF position before disconnecting the 12V battery terminal, observing “How to disconnect 12V battery terminal” described below.



  NOTE:

  Some ECUs operate for a certain fixed time even after ignition switch is in the OFF position and ignition power supply is stopped. If the battery terminal is disconnected before ECU stops, accidental DTC detection or ECU data damage may occur.

• For Nissan Ariya vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before placing the ignition switch in the ON position.

  NOTE:

  If the ignition switch is in the ON position with any one of the terminals of main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

  NOTE:

  The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.

1. Open the hood.

2. Place the ignition switch in the ON position.

3. Place the ignition switch in the OFF position with the driver side door opened.

4. Get out of the Nissan Ariya vehicle and close the driver side door.

5. Wait at least 3 minutes.

   CAUTION:

   While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the Auto ACC function.

6. Remove 12V battery terminal.

   CAUTION:

   After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for TCM and Transaxle Assembly Replacement

CAUTION:

To replace transaxle assembly, refer to Description.

General Precautions

• The ignition switch is OFF and disconnect the battery cable from the negative terminal before connecting or disconnecting the CVT assembly harness connector. Because battery voltage is applied to TCM even if ignition switch is turned OFF.



• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION PROCEDURE”.



  If the repair is completed DTC should not be displayed in the “DTC CONFIRMATION PROCEDURE”.

• Always use the specified brand of CVT fluid. Refer to Fluids and Lubricants.

• Use lint-free paper not cloth rags during work.

• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.

• Before proceeding with disassembly, thoroughly clean the outside of the transaxle. It is important to prevent the internal parts from becoming contaminated by dirt or other foreign matter.

• Disassembly should be done in a clean work area.

• To avoid the risk of minor injury or property damage: If the 12-volt battery has low or no voltage, the transmission cannot be shifted. Replace the battery or repair the damaged power supply system. If towing the Nissan Ariya vehicle, follow the tow procedure, refer to Tow Truck Towing.

On Board Diagnosis (OBD) System of CVT and Engine

The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the driver of a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will cause the MIL to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease, dirt, bent terminals, etc.)

• Be sure to route and secure the harnesses properly after work. Interference of the harness with a bracket, etc. may cause the MIL to light up due to a short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and ECM before returning the Nissan Ariya vehicle to the customer.
