Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

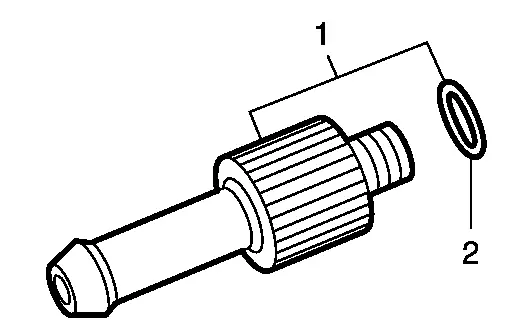

  1. KV311039S0

    ( — )

    Charging pipe set

  2. KV31103920*

    ( — )

    O-ring

CVT fluid changing and adjustment

—

(NI-52584)

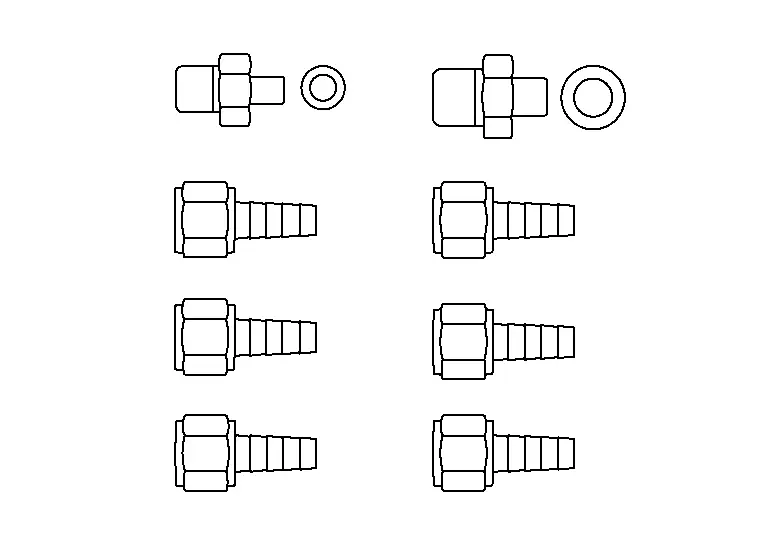

CVT stand pipe adapter kit

CVT fluid changing and adjustment

—

(NI-43926)

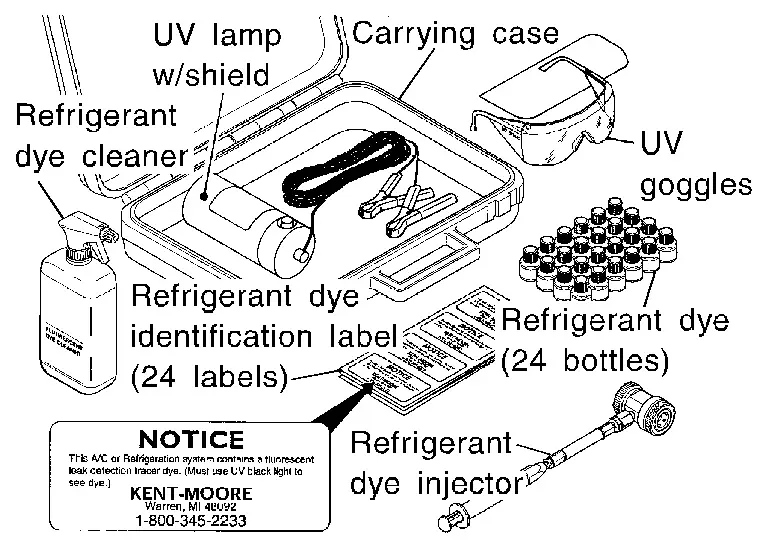

Refrigerant dye leak detection kit

Kit includes:

  • UV lamp and UV safety goggles

  • Refrigerant dye injector

  • Fluorescent leak detection dye

    (box of 24, 1/4 ounce bottles)

  • Refrigerant dye cleaner

Oil seepage and leak inspection

NOTE:

Power supply: DC 12V (battery terminal)

—

(NI-52990)

Fluorescent Oil Dye

Oil seepage and leak inspection

—

(NI-53061)

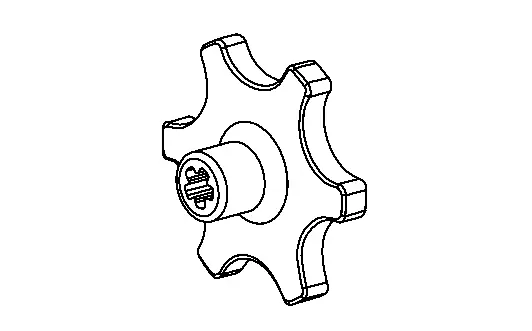

CVT range switch adjuster

Adjusting transmission range position

—

(NI-51951)

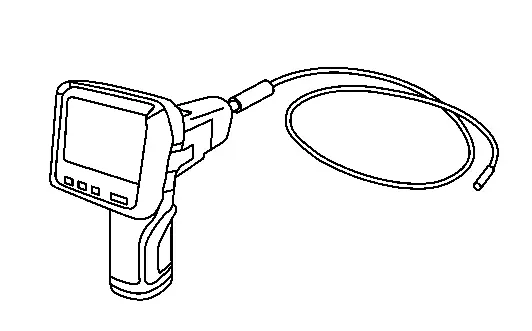

Borescope kit

CVT belt visual inspection

—

(NI-52611)

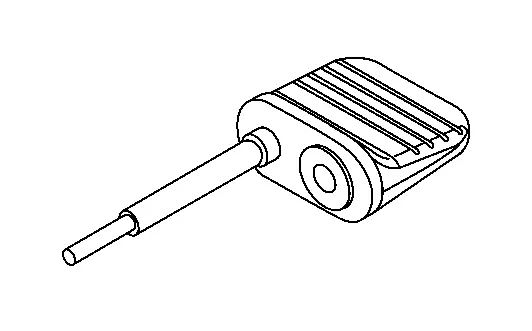

CVT charge pipe cap release tool

Removing CVT charge pipe cap

KV315J0400

(NI-50271)

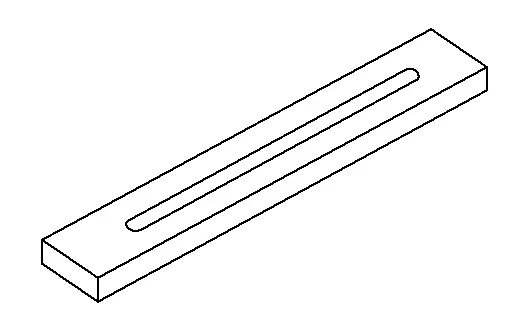

Gauge block

Measuring the total end play

KV315J0500

(NI-50272)

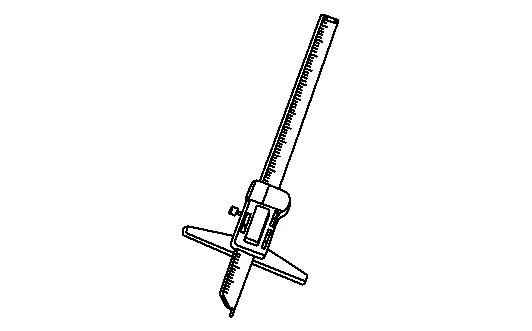

Digital depth gauge

Measuring the total end play

KV315J0620

(NI-51923)

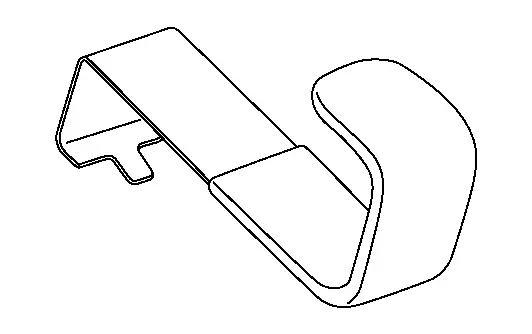

J-hook case separator

Removing converter housing

KV315J0610

(NI-25721-A)

Slide hammer

Removing converter housing

KV315J0630

(NI-50255–UPD)

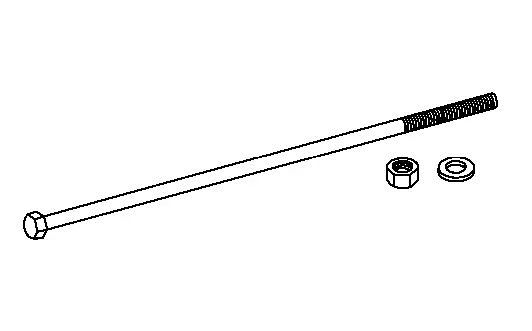

Slide hammer nut and bolt kit

Removing converter housing

—

(NI-53066 )

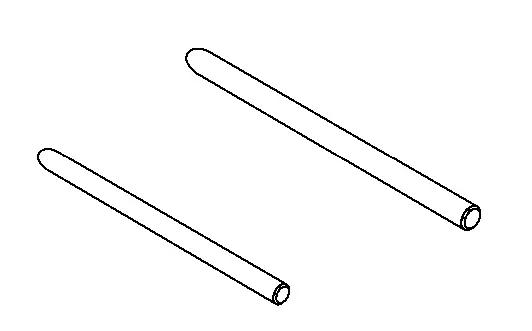

Side cover assembly guide pins 		  Removing/Installing sub-assembly

—

(NI-53064)

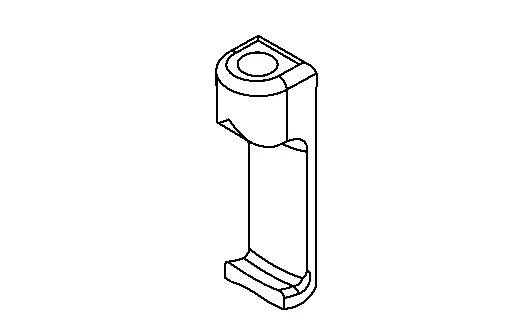

Valve body alignment tool

Fix the manual valve in the N position

KV31500300

(NI-52272)

Assembly guide pins, pulley bracket

Installing side cover

KV31500800

(NI-52283)

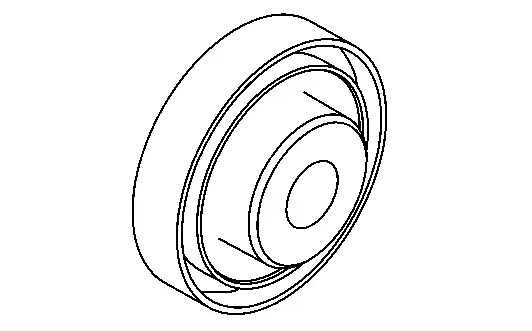

Output seal installer (case side)

Installing differential side oil seal (case side)

KV31500900

(NI-52284)

Output seal installer (torque converter side)

Installing differential side oil seal (torque converter side)

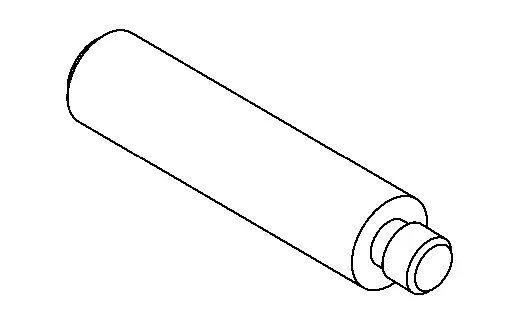

ST35325000

(NI-8092)

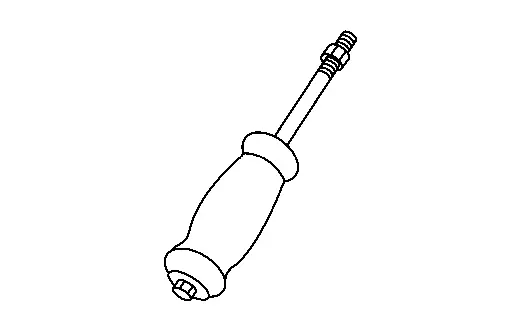

Universal driver handle

Use with output seal installer

NOTE:

  • The universal driver handle NI-8092 can be installed on the output seal installer NI-52283 and NI-52284 only.

  • The universal driver handle ST35325000 can be installed on the output seal installer KV31500800 and KV31500900 only.

—

(NI-53062)

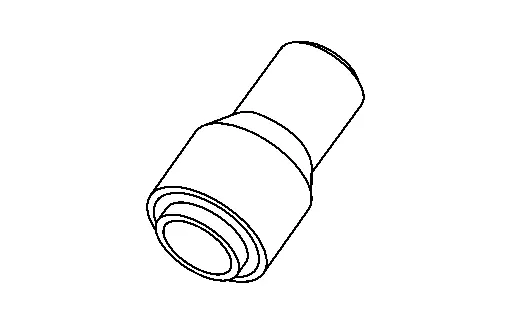

Torque converter seal installer

Installing converter housing oil seal

KV315J0100

(NI-52082-A)

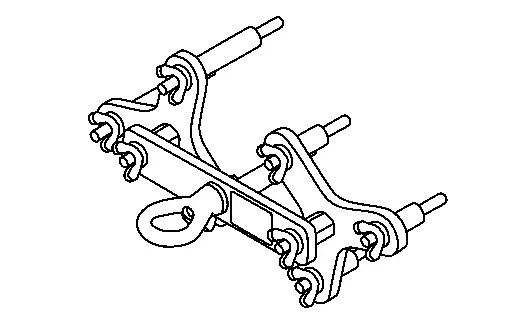

CVT universal lifting fixture

Removing / Installing sub - assembly

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

Tool name Description
Power tool

Loosening nuts, screws and bolts

Lubricant or/and Sealant

Item Use
Lithium-based grease including molybdenum disulphide Application to spline part of shift actuator
Loctite 5460 or equivalent Application to mating surface of transaxle case

Always Replace With New Parts

Always Replace With New Parts
Never Reuse These Parts Part Code For additional Information
Gasket-TCM – TCM Exploded View
Gasket-oil pan 31397 Oil Pan Exploded View
Washer-drain plug 31394E Oil Pan Exploded View
Seal-O-ring 31940V Control Valve Exploded View
Seal-O-ring 31940VA Control Valve Exploded View
Seal-O-ring 31940VC Control Valve Exploded View
Seal-O-ring 31940VB Control Valve Exploded View
Seal-lip 31528Q Control Valve Exploded View
Seal-O-ring 31051J Input Speed Sensor Exploded View
Seal-O-ring 31051J Primary Speed Sensor Exploded View
Seal-O-ring 31051J Secondary Speed Sensor Exploded View
Seal-O-ring, differential transmission case 38342Q Differential Side Oil Seal Exploded View
Seal-O-ring, differential converter housing 38342P Differential Side Oil Seal Exploded View
Clamp 31088 Water Hose Exploded View
Seal-O-ring 21606Z CVT Oil Warmer Exploded View
Seal-O-ring 21606ZA CVT Oil Warmer Exploded View
Seal-O-ring 31526QB Plug Exploded View
Seal-O-ring 31526Q Plug Exploded View
Seal-O-ring 31526QA Plug Exploded View
Gasket-oil pump 31366 Electric Oil Pump Exploded View
Seal-O-ring 31362M Electric Oil Pump Exploded View
Electric oil pump bracket 31069B Electric Oil Pump Exploded View
CVT fluid charging pipe cap 31086 Transaxle Assembly Exploded View
Seal-O-ring 31084 Transaxle Assembly Exploded View
