Work Flow

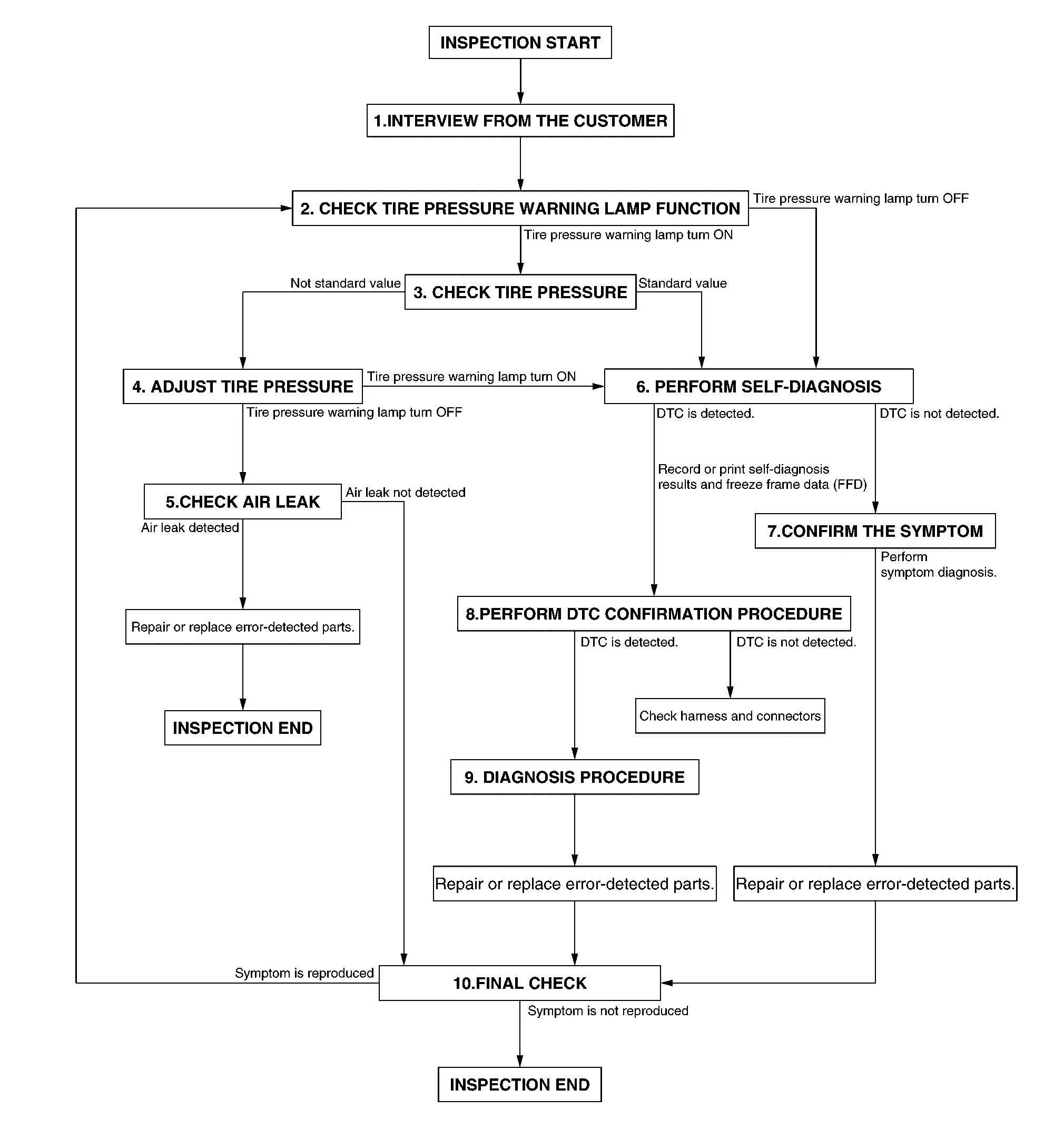

OVERALL SEQUENCE

DETAILED FLOW

INTERVIEW FROM THE CUSTOMER

Clarify customer complaints before inspection. To do so, reproduce the symptom before hand and fully understand it. Then interview the customer thoroughly. Check the symptoms by driving Nissan Ariya vehicle with the customer, if necessary.

CAUTION:

Customers are not professional. Never guess easily like “maybe the customer means that...,” or “ maybe the customer mentions this symptom”.

>>

GO TO 2.

CHECK TIRE PRESSURE WARNING LAMP FUNCTION

Check that tire pressure warning lamp in combination meter.

Tire pressure warning lamp turn ON?

YES>>

GO TO 3.

NO>>

GO TO 6.

CHECK TIRE PRESSURE

Check the tire pressure of all wheels. Refer to Tire Air Pressure.

NOTE:

Check the tire pressure of cold condition.

Is the inspection standard value?

YES>>

GO TO 6.

NO>>

GO TO 4.

ADJUST TIRE PRESSURE

  1. Check and adjust the tire pressure for all wheels specified to the value. Refer to Tire Air Pressure.

  2. Drive the Nissan Ariya vehicle at 25 MPH (40 km/h) or more until reaching 10 minutes in total.

Tire pressure warning lamp turn OFF?

YES>>

GO TO 5.

NO>>

GO TO 6.

CHECK AIR LEAK

Using soapsuds etc., check air leak.

NOTE:

Check air valve.

Is air leak detected?

YES>>

Repair or replace error-detected parts. Replace the valve. Perform tire pressure sensor ID registration. Refer to Description.

NO>>

Inspection End.

PERFORM SELF DIAGNOSIS

CONSULT

Select “Self diagnosis result” mode of “BCM”.

Is DTC detected?

YES>>

Record or print self-diagnosis results and freeze frame data (FFD). GO TO 8.

NO>>

GO TO 7.

CONFIRM THE SYMPTOM

Perform symptom diagnosis. Refer to Symptom Table.

>>

Repair or replace error-detected parts. GO TO 10.

PERFORM CONFIRMATION PROCEDURE

CONSULT

Perform Confirmation Procedure for the detected DTC, and then check that DTC is detected again.

Is DTC detected?

YES>>

GO TO 9.

NO>>

Check harness and connectors based on the information obtained by interview. Refer to Intermittent Incident.

DIAGNOSIS PROCEDURE

Perform DTC Diagnosis Procedure.

>>

Repair or replace error-detected parts. GO TO 10 .

FINAL CHECK

Recheck the symptom and check that the symptom is not reproduced on the same conditions.

Is the symptom reproduced?

YES>>

GO TO 2.

NO>>

Inspection End.

    Wiring Diagram. Tire Pressure Monitoring System
    With Type a Meter Wiring Diagram Refer to Wiring Diagram. With Type B Meter Wiring Diagram Refer to Wiring Diagram.
    Basic Inspection. Additional Service When Replacing Bcm
    Work Procedure ADDITIONAL SERVICE WHEN REPLACING BCM Perform additional service when replacing BCM. Refer to Description. >> GO TO 2. PERFORM TIRE PRESSURE SENSOR ID REGIS...
