Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Basic information

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide / Starting and driving / Intelligent Lane Intervention (I-LI) / Basic information

WARNING

The Intelligent Lane Intervention system on the Nissan Rogue must be used with caution. Ignoring warnings or relying solely on the system may lead to loss of control, injury or death.

I-LI will not steer the Nissan Rogue for you or prevent skidding. The driver must always stay attentive, maintain control, and keep the vehicle centered in its lane.
The system works best on highways with clearly visible lane markings. Poor weather or worn road paint may limit performance.

Nissan Rogue Intelligent Lane Intervention

The I-LI feature must be activated each time the ignition is turned ON by pressing the ProPILOT Assist switch. When properly activated and the Nissan Rogue is moving above ~37 MPH (60 km/h), the system monitors lane edges and can provide vibration alerts and brief steering assistance to help guide the vehicle back to the lane center.

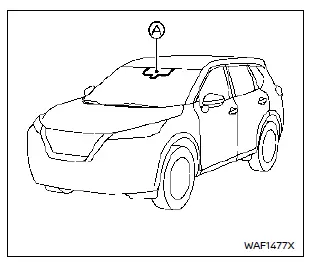

The system uses the forward camera mounted above the inside mirror to track lane markers and determine when the vehicle begins to drift.

Intelligent Lane Intervention (I-LI)

...

I-LI system operation

I-LI ON indicator I-LI intervention indicator Vehicle information display ProPILOT Assist switch When the Nissan Rogue approaches a lane boundary, the steering wheel vibrates and the I-LI i ...
