Nissan Rogue Service Manual: VDC off switch
Removal and Installation
REMOVAL
- Remove the instrument lower panel LH. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".

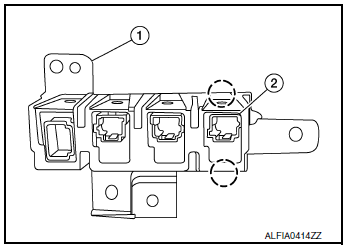

- Release pawls using suitable tool and remove the VDC OFF switch (2) from the upper switch carrier (1).
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
ABS actuator and electric unit (control unit)
Exploded View
ABS actuator and electric unit (control unit)
Connector
Bracket
To front LH brake caliper
To rear RH brake caliper
From master cylinder second ...
Steering angle sensor
Exploded View
Combination switch
Steering angle sensor
Spiral cable
Removal and Installation
Removal and Installation
Remove the spiral cable. Refer to SR-15, "Explode ...
