Nissan Rogue Service Manual: Steering angle sensor

Exploded View

Exploded View

  1. Combination switch
  2. Steering angle sensor
  3. Spiral cable

Removal and Installation

Removal and Installation

  1.  Remove the spiral cable. Refer to SR-15, "Exploded View".

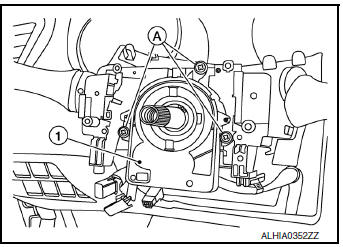

  2.  Remove screws (A) and then remove steering angle sensor (1).

Removal and Installation

INSTALLATION

Installation is in the reverse order of removal.
